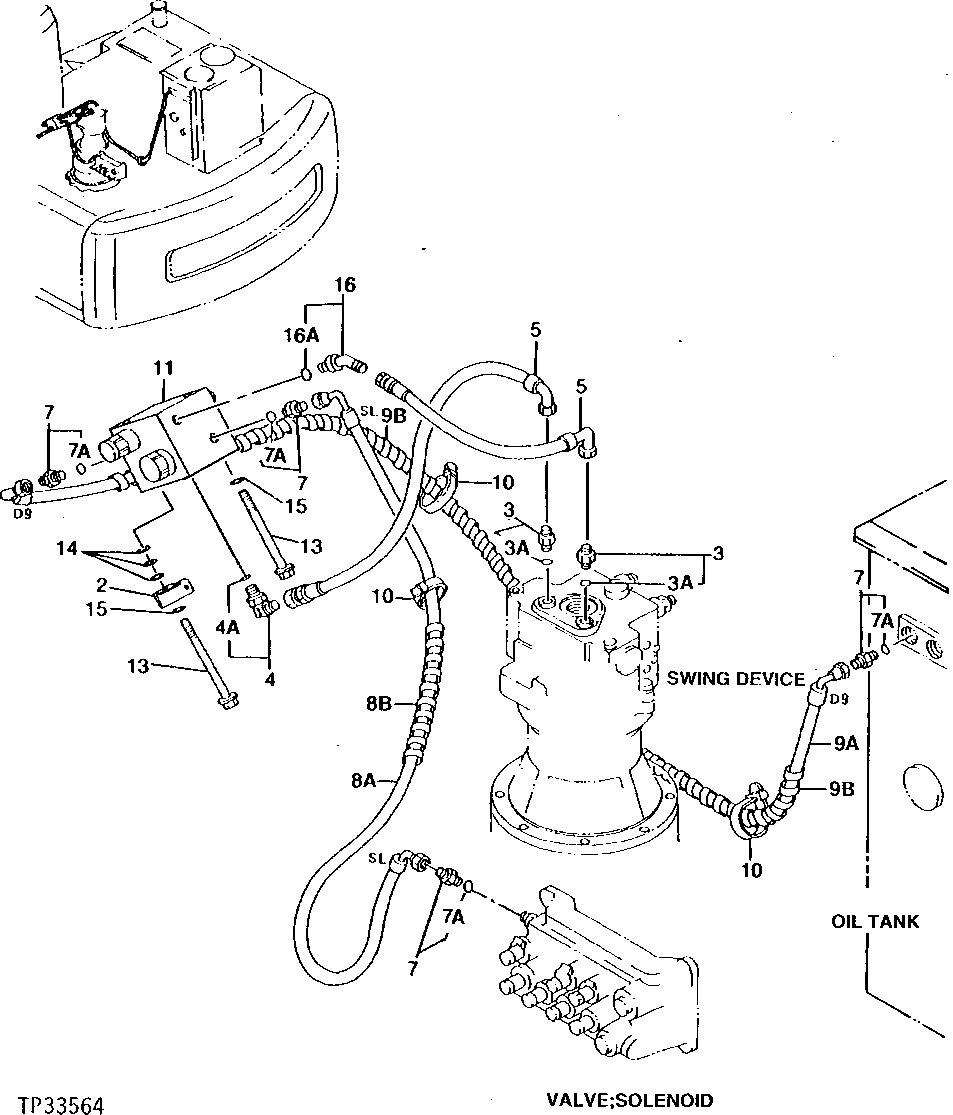

Запчасти John Deere 90E 276 - Swing Lines 4360 Hydraulics

2

4257159

Bracket

SUB FOR AT154243

1шт.

3

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

3A

M800650

Packing

1шт.

4

4154670

Elbow Fitting

SUB FOR TH100951

1шт.

4A

M800650

Packing

1шт.

5

AT154355

Hydraulic Hose

2шт.

7

4200465

Adapter Fitting

SUB FOR TH108328

4шт.

7A

M800650

Packing

1шт.

8A

AT154373

Hydraulic Hose

1шт.

8B

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

1шт.

9A

4283948

Hose

SUB FOR AT154374

1шт.

9B

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

2шт.

10

H77698

Tie Band

3шт.

11

4288148

Flow Control Hyd. Valve

SUB FOR AT154414

1шт.

13

19M8093

Cap Screw

M10 X 100

2шт.

14

24M7028

Washer

10.500 X 20 X 2 mm

3шт.

15

12M7066

Lock Washer

10 mm

2шт.

16

4193826

Elbow Fitting

SUB FOR TH106467

1шт.

16A

M800650

Packing

1шт.
