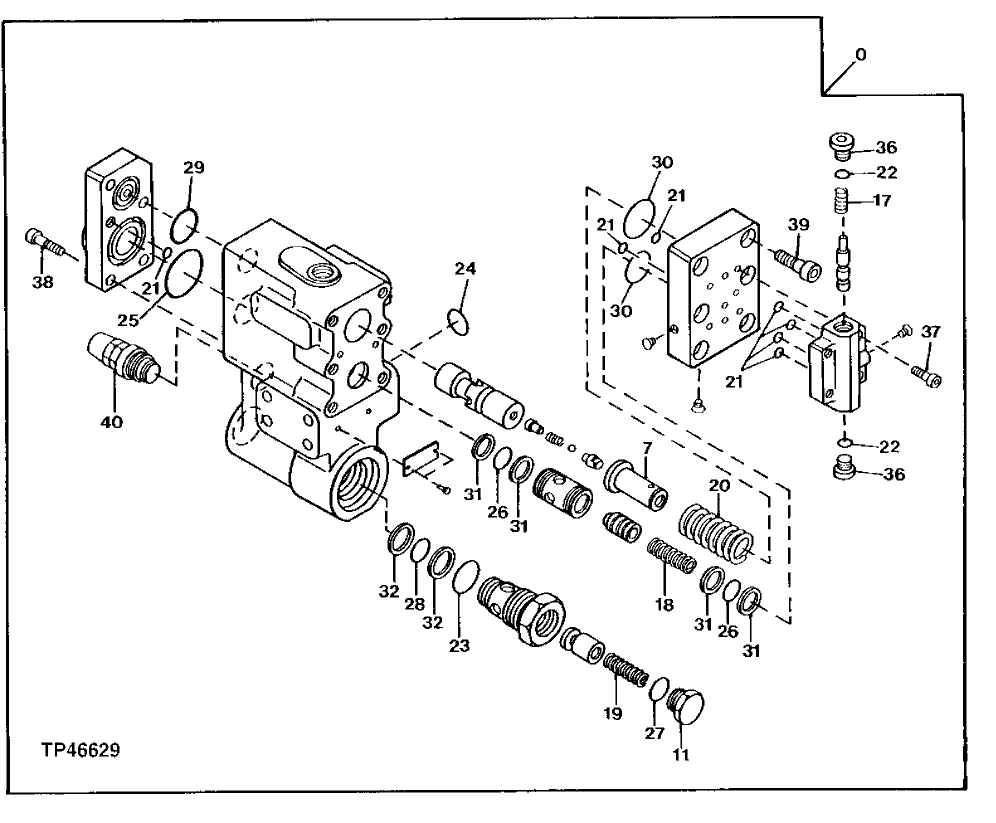

Запчасти John Deere 90E 268 - Load Lowering Valve (Arm) 3360 Hydraulic System

0

4311301

Flow Control Hyd. Valve

(SUB FOR AT172387) (ARM CYLI NDER LOAD LOWERING) Head End

1шт.

7

0620401

Plate

(SUB FOR AT172408)

1шт.

11

0620402

Plug

(SUB FOR AT172409)

1шт.

17

0620303

Spring

(SUB FOR AT172360)

1шт.

18

0620304

Spring

(SUB FOR AT172362)

1шт.

19

0498602

Spring

(SUB FOR AT172410)

1шт.

20

0620403

Spring

(SUB FOR AT172411)

1шт.

21

CH11568

Packing

7шт.

22

M800650

Packing

2шт.

23

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138") (SUB FOR AT172412)

1шт.

24

A811030

O-Ring

29.400 X 3.100 mm (1.157" X 0.122") (SUB FOR TH101300)

1шт.

25

A811040

O-Ring

39.400 X 3.100 mm (1.551" X 0.122") (SUB FOR AT172414) (SUB FOR TH102992)

1шт.

26

0294414

O-Ring

21.946 X 1.778 mm (0.864" X 0.070") (SUB FOR TH105847)

2шт.

27

0215216

O-Ring

(SUB FOR AT172423) (SUB FOR TH101481)

1шт.

28

H35237

O-Ring

23.470 X 2.616 mm (0.924" X 0.103") (SUB FOR AT172425)

1шт.

29

T141687

O-Ring

28.245 X 2.616 mm (1.112" X 0.103")

1шт.

30

0620404

O-Ring

(SUB FOR AT172426)

2шт.

31

0620306

Back-Up Ring

(SUB FOR AT172366)

4шт.

32

0620405

Back-Up Ring

(SUB FOR AT172428)

2шт.

36

0215221

Pipe Plug

(SUB FOR AT172429) (SUB FOR TH101486)

2шт.

38

19M8735

Screw

M8 X 30 (SUB FOR AT172430)

4шт.

39

19M8337

Screw

M10 X 30 (SUB FOR AT172431) (SUB FOR TH101554) (SUB FOR 0215615)

6шт.

40

4324747

Pressure Relief Valve

(SUB FOR AT172370)

1шт.
