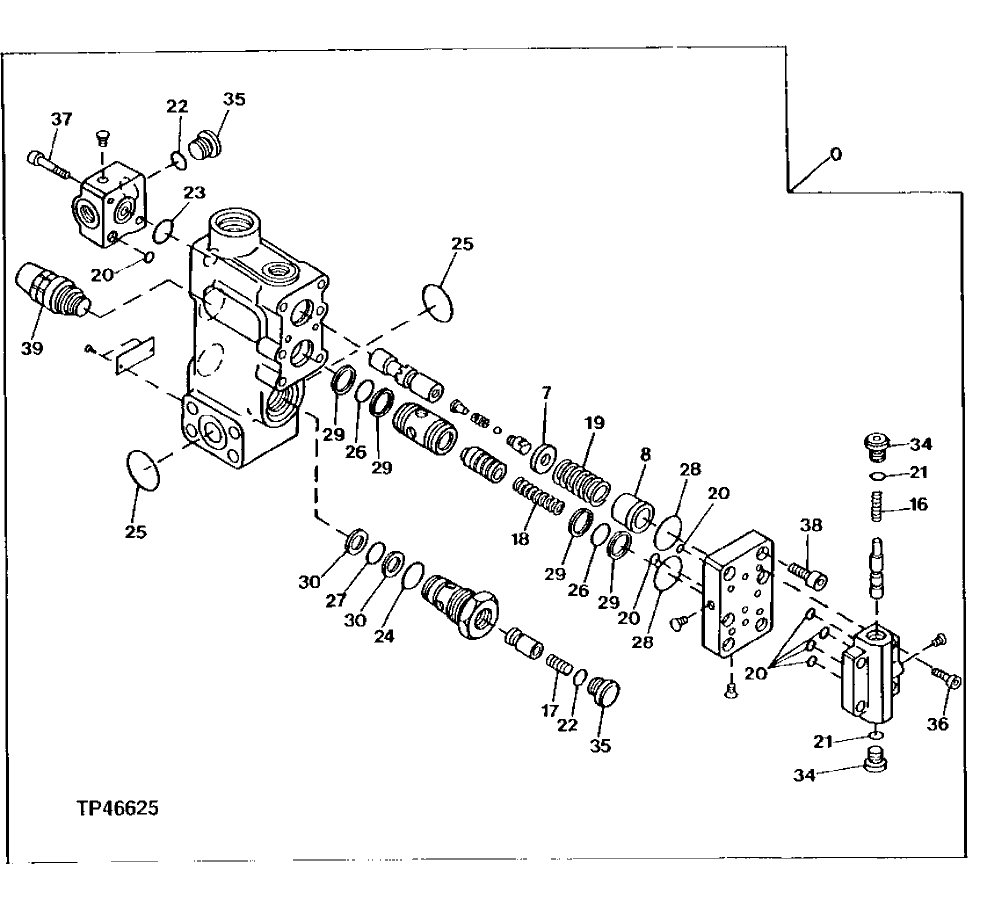

Запчасти John Deere 90E 264 - Load Lowering Valve (Arm) 3360 Hydraulic System

0

4311300

Flow Control Hyd. Valve

(SUB FOR AT172248) (BOOM CYLINDER HEAD END)

1шт.

7

0620301

Spring

(SUB FOR AT172358)

1шт.

8

0620302

Spacer

(SUB FOR AT172359)

1шт.

16

0620303

Spring

(SUB FOR AT172360)

1шт.

17

0498503

Spring

(SUB FOR AT172361)

1шт.

18

0620304

Spring

(SUB FOR AT172362)

1шт.

19

0620305

Spring

(SUB FOR AT172363)

1шт.

20

CH11568

Packing

7шт.

21

M800650

Packing

2шт.

22

CH11570

O-Ring

2шт.

23

CH12329

Packing

1шт.

24

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

25

A811030

O-Ring

29.400 X 3.100 mm (1.157" X 0.122") (SUB FOR TH101300)

2шт.

26

0294414

O-Ring

21.946 X 1.778 mm (0.864" X 0.070") (SUB FOR TH105847)

2шт.

27

R375R

O-Ring

15.545 X 2.616 mm (0.612" X 0.103")

1шт.

28

T141687

O-Ring

28.245 X 2.616 mm (1.112" X 0.103")

2шт.

29

0620306

Back-Up Ring

(SUB FOR AT172366)

4шт.

30

0230908

Back-Up Ring

(SUB FOR TH104755)

2шт.

34

0215221

Pipe Plug

(SUB FOR TH101486)

2шт.

35

0311336

Pipe Plug

(SUB FOR TH109082)

3шт.

36

0620307

Bolt

(SUB FOR AT172367)

4шт.

37

0620308

Bolt

(SUB FOR AT172368)

2шт.

38

0627910

Bolt

(SUB FOR AT172369)

6шт.

39

4324747

Pressure Relief Valve

(SUB FOR AT172370)

1шт.
