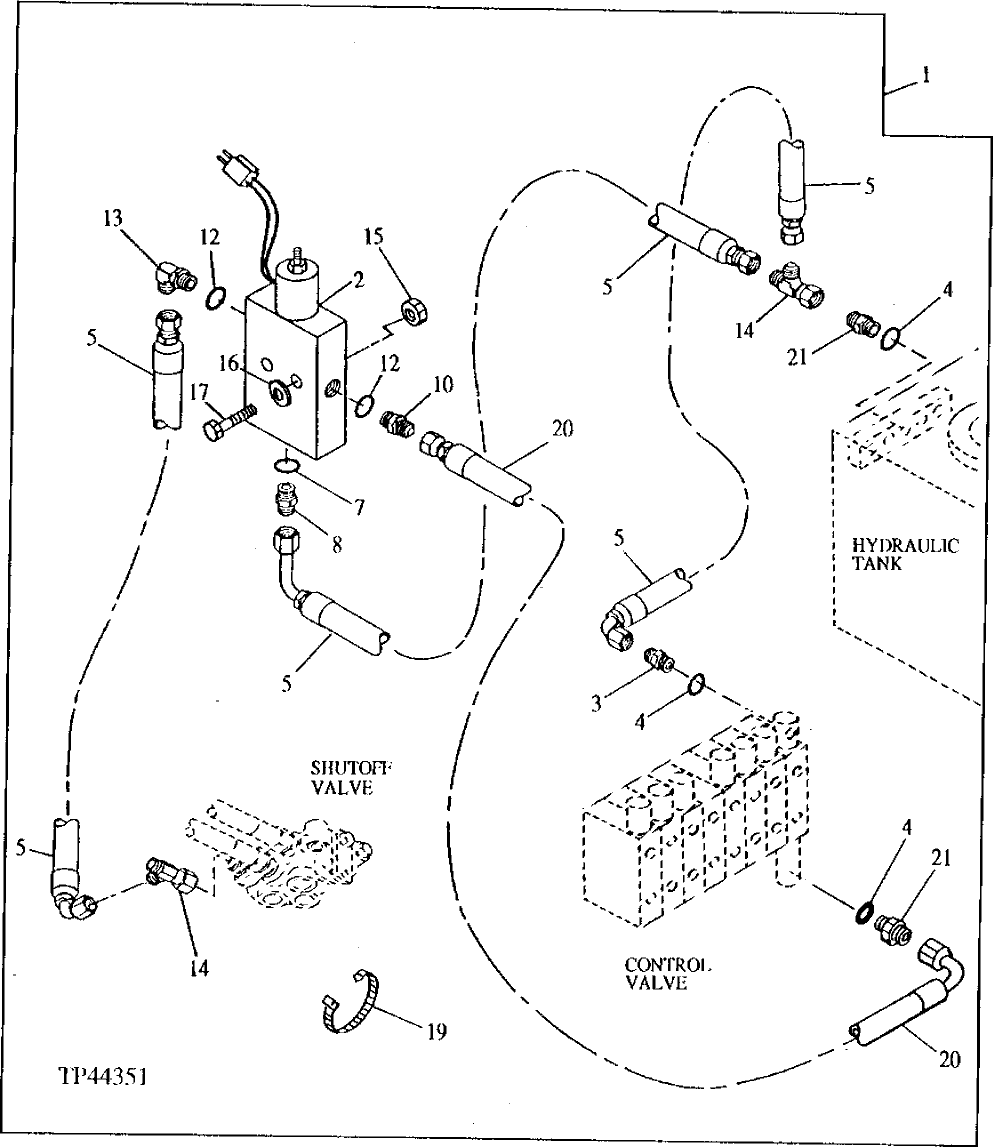

Запчасти John Deere 90E 258 - Electric Foot Switch For Auxiliary Control (One Solenoid) 3360 Hydraulic System

1

Control

(WHOLEGOODS) (AUXILIARY ON E SOLENOID) ( AT165330 NLA)

1шт.

2

AT306723

Elec.Proportional Valve

(INCLUDES ELECTRICAL COIL) (SUB FOR AT115437, AT116486, AT140041)

1шт.

3

AT131445

Adapter Fitting

1шт.

4

CH11570

O-Ring

3шт.

5

AT71732

Hydraulic Hose

9/16" X 1422 mm (56") X 9/16"

3шт.

7

R26375

O-Ring

16.358 X 2.210 mm (0.644" X 0.087")

1шт.

8

R36426

Fitting

1шт.

10

R27212

Fitting

1шт.

12

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

2шт.

13

AT35121

Elbow Fitting

1шт.

14

AT36921

Tee Fitting

2шт.

15

14M7167

Lock Nut

M10

2шт.

16

24M7346

Washer

11 X 20 X 2 mm

2шт.

17

19M7808

Screw

M10 X 65

2шт.

19

R44302

Tie Band

(USE WHERE REQUIRED)

6шт.

20

AT71737

Hydraulic Hose

9/16" X 1612 mm (63-1/2") X 9/16"

1шт.

21

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.
