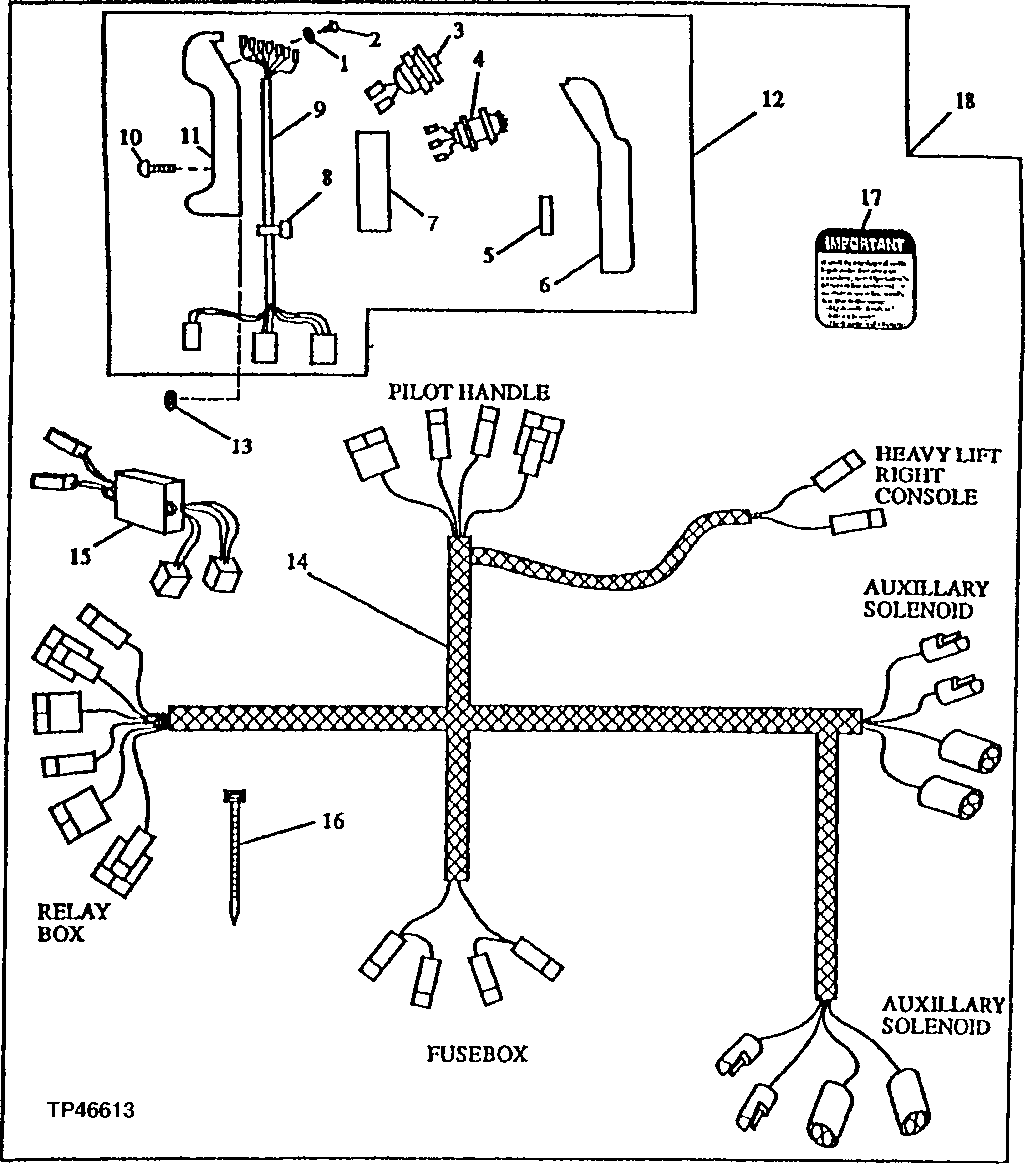

Запчасти John Deere 90E 253 - Dual Auxiliary Controller Components 3360 Hydraulic System

1

12H321

Washer

0.138"

7шт.

2

21H1308

Screw

0.138" X 3/8" (SUB FOR 21H1469)

7шт.

3

AT139383

Toggle/Rocker Switch

Push Button Momentary

1шт.

4

AT139382

Toggle/Rocker Switch

2шт.

5

R71799

Needle Roller

2шт.

6

T114699

Handle

1шт.

7

T114698

Support

1шт.

8

R44302

Tie Band

2шт.

9

AT195787

Wiring Harness

(SUB FOR AT115451 AND AT135551)

1шт.

10

T80394

Screw

6шт.

11

AT115448

Handle

1шт.

12

AT195786

Control Lever

(SUB FOR AT135551) Pilot Control

1шт.

13

24M7240

Washer

13 X 25 X 3 mm

2шт.

14

AT195788

Wiring Harness

(SUB FOR AT159553) Solenoid Valve

1шт.

15

AT141562

Relay Module

1шт.

16

R44302

Tie Band

6шт.

17

T149434

Label

Important (BETWEEN ASHTRAY AND OPERATO R'S CAUTION DECAL ON RIGHT SIDE OF CAB)

1шт.

18

Kit

Control Handle With Switches (ALSO ORDE R AT195713 (WHOLEGOODS) ( AT162242 NLA))

1шт.
