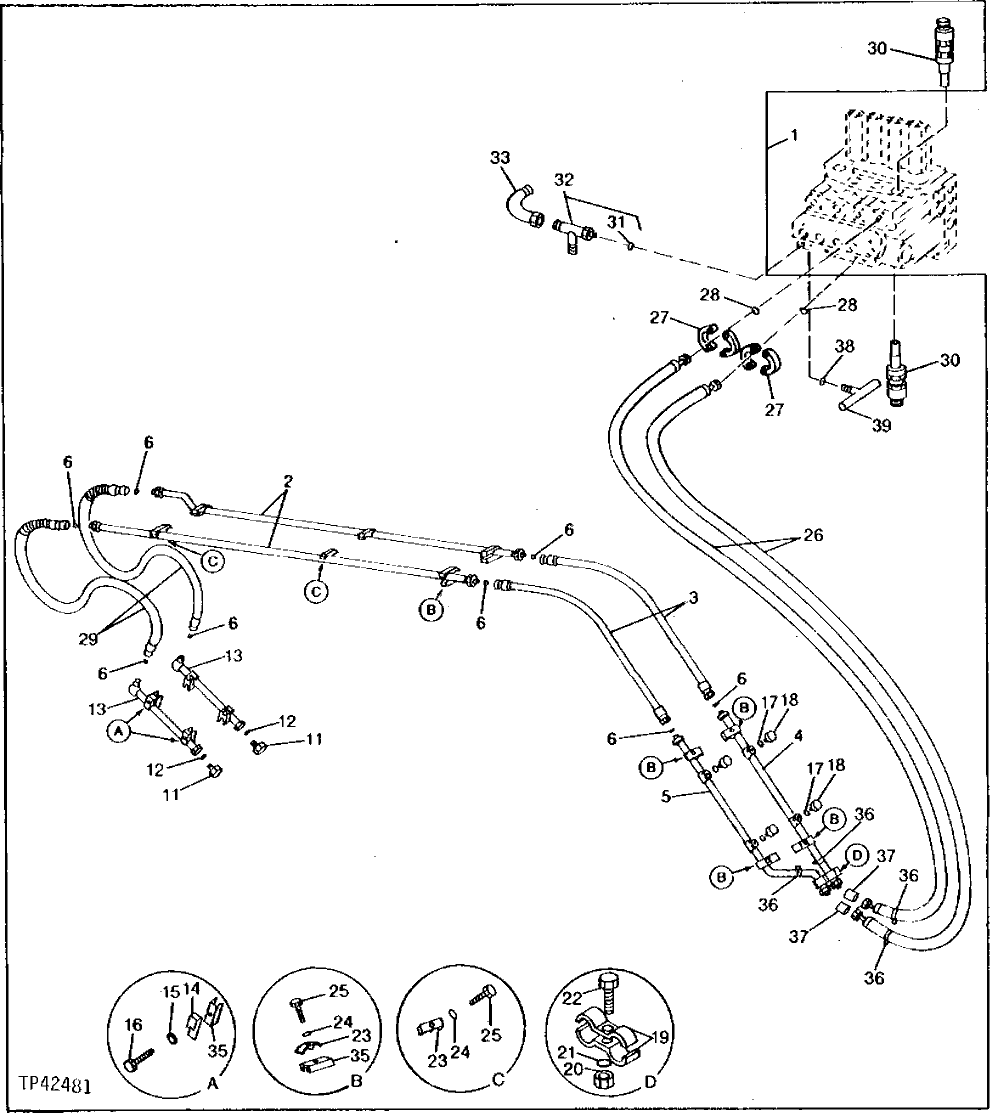

Запчасти John Deere 90E 252 - Main Hydraulic Plumbing 3360 Hydraulic System

1

AT160423

Kit

(WHOLEGOODS)

1шт.

2

AT160159

Oil Tube

2шт.

3

AT160161

Hydraulic Hose

30.1752" X 1295 mm (51") X 30.1752"

2шт.

4

AT160162

Oil Line

1шт.

5

AT160158

Oil Line

1шт.

6

T77858

O-Ring

8шт.

11

38H1150

Fitting Plug

2шт.

12

T76938

O-Ring

2шт.

13

AT160177

Oil Tube

2шт.

14

4190126

Clamp

(SUB FOR TH109830)

4шт.

15

12H301

Lock Washer

1/2"

4шт.

16

19M7363

Cap Screw

M12 X 60

4шт.

17

T77858

O-Ring

4шт.

18

38H1418

Fitting

4шт.

19

4202103

Clamp

(SUB FOR TH108302)

2шт.

20

14M7275

Nut

M12

1шт.

21

12H301

Lock Washer

1/2"

1шт.

22

19M7361

Cap Screw

M12 X 50

1шт.

23

4141806

Clamp

(SUB FOR TH100968)

10шт.

24

12H301

Lock Washer

1/2"

10шт.

25

19M7363

Cap Screw

M12 X 60

10шт.

26

AT160175

Hydraulic Hose

3/4" X 1118 mm (44") X 30.1752"

2шт.

27

R29424

Flange Fitting

4шт.

28

T59014

O-Ring

2шт.

29

AT160176

Hydraulic Hose

30.1752" X 1397 mm (55") X 30.1752"

2шт.

30

9200504

Pressure Relief Valve

(SUB FOR AT155692 OR 4261539)

2шт.

31

M800650

Packing

1шт.

32

4203485

Fitting

(SUB FOR TH109466)

1шт.

33

AH89069

Elbow Fitting

1шт.

35

9735916

Channel

(SUB FOR AT157648)

10шт.

36

AR21837

Hose Clamp

4шт.

37

Sleeve

( T145756 NLA) (CTL FROM BULK MATERIAL)

2шт.

38

51M4247

Sealing Ring

1шт.

39

15M7065

Fitting

(SUB FOR T116454)

1шт.
