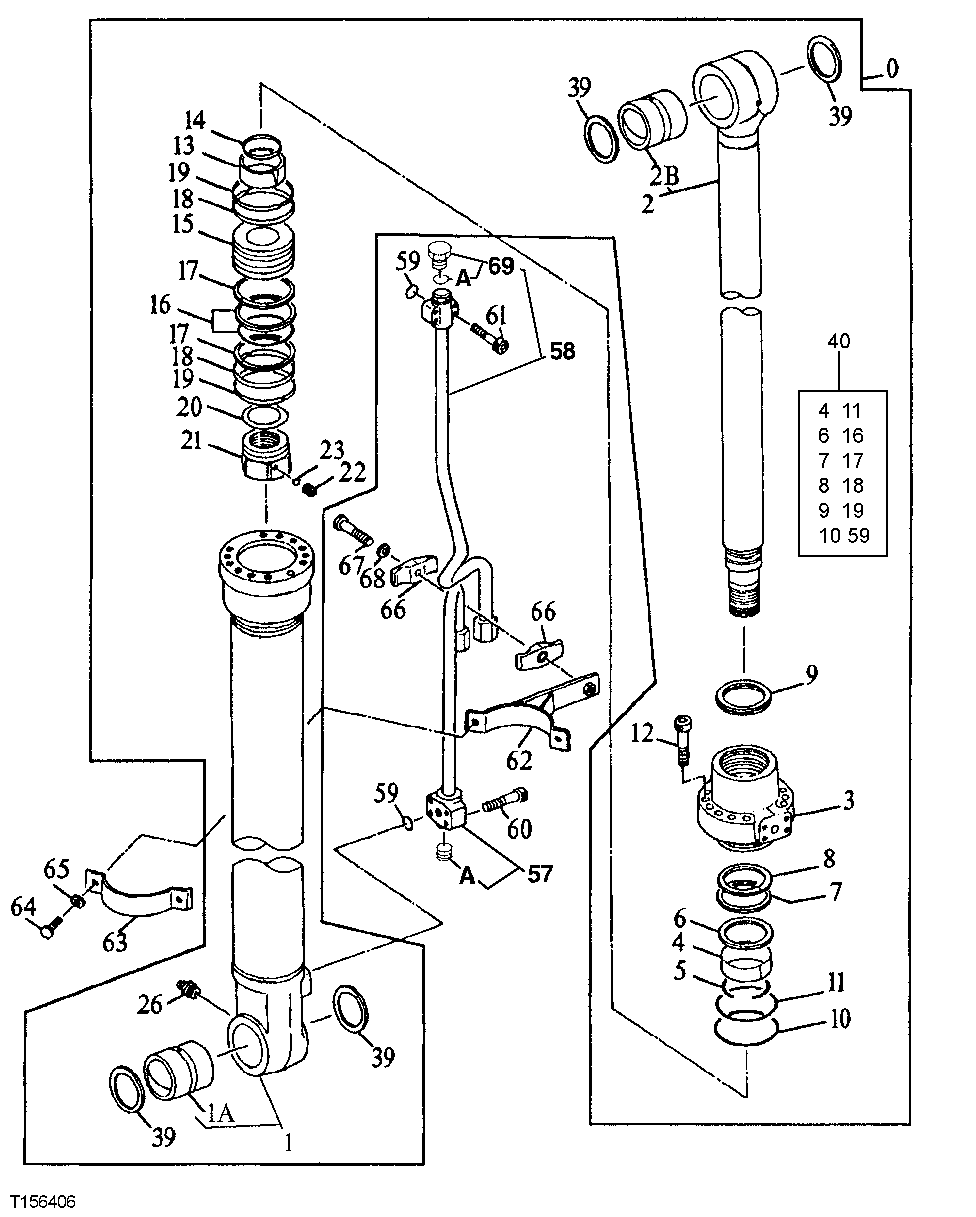

Запчасти John Deere 90E 249 - Left Boom Cylinder 3360 Hydraulic System

0

4286457J

Hydraulic Cylinder

(SUB FOR AT154399)

1шт.

Hydraulic Cylinder

(REMAN) ( 4286457JEX NLA)

1шт.

1

4286458

Structural Tube

(SUB FOR AT154400)

1шт.

1A

3051399

Bushing

(SUB FOR TH104903) (SUB FOR AT154116)

1шт.

2

4286456

Rod

(SUB FOR AT154398)

1шт.

2B

0140808

Bushing

(SUB FOR TH104905)

1шт.

3

0408803

Cylinder Head

(SUB FOR AT153913)

1шт.

4

AT133645

Bushing

1шт.

5

0271304

Snap Ring

(SUB FOR AT133631)

1шт.

6

AT153914

Ring

1шт.

7

AT264256

Packing

(SUB FOR 0271309, AT133633)

1шт.

8

AT264257

Back-Up Ring

(SUB FOR 0271310, AT133634)

1шт.

9

H158453

Scraper Ring

(SUB FOR AT176821)

1шт.

10

AT264319

O-Ring

99.400 X 3.100 mm (3.913" X 0.122") (SUB FOR T110447)

1шт.

11

TH109318

Back-Up Ring

1шт.

12

0408805

Screw

(SUB FOR AT153915)

12шт.

13

0408806

Bearing

(SUB FOR AT153916)

1шт.

14

0408807

Seal

1шт.

15

H158463

Piston

(SUB FOR AT153918, 0408808)

1шт.

16

AT264387

Ring

(SUB FOR TH109322)

1шт.

17

AT153919

Back-Up Ring

2шт.

18

AT309607

Ring

(SUB FOR TH109323, 4S00139)

2шт.

19

AT264388

Ring

(SUB FOR TH109324, 0310510 AND 4S00155)

2шт.

20

TH109328

Shim

(SUB FOR 0310514)

1шт.

21

0310511

Nut

(SUB FOR TH109325)

1шт.

22

22M6684

Set Screw

M12 X 12

1шт.

23

T13624

Ball

7.145 mm (9/32")

1шт.

26

TH100074

Lubrication Fitting

1шт.

39

TH104472

Seal

( AT153920 NLA

4шт.

40

AT196470

Seal Kit

(SUB FOR 4369772)

1шт.

57

Pipe

(ORDER 0789403, 0408904, 4506430 , (4) 19M8317 AND (4) 19M8439) ( AT153926, 0408902 OR AH149465 NLA )

1шт.

0789403J

Oil Line

(SUB FOR 0789403)

1шт.

57A

94-2013

Fitting Plug

(SUB FOR TH100648)

1шт.

58

Pipe

(ORDER 0789403, 0408904, 4506430, (4) 19M831 7 AND (4) 19M8439) ( AT153927 OR 0408903 NLA)

1шт.

0408904J

Oil Line

(SUB FOR 0408903 OR 0408904)

1шт.

19M8439

Screw

M8 X 25 (SUB FOR M340825 OR TH105051)

1шт.

4506430

O-Ring

1шт.

59

O-Ring

(SUB FOR TH103574) (SUB 0976602) ( AT264354 NSEP)

2шт.

60

19M8213

Screw

M10 X 50

4шт.

19M8317

Screw

M8 X 40

4шт.

61

T116311

Bolt

M8 X 40

4шт.

19M8439

Screw

M8 X 25

4шт.

62

0408814

Band

(SUB FOR AT153923)

1шт.

63

0310707

Band

(SUB FOR TH109335)

1шт.

64

19M7550

Cap Screw

M10 X 35 (SUB FOR AT153924)

2шт.

65

12M7066

Lock Washer

10 mm

2шт.

66

TH109337

Clamp

2шт.

67

19M8348

Cap Screw

M12 X 65

1шт.

68

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

69

4174541

Fitting

(SUB FOR TH110477)

1шт.

69A

4506418

O-Ring

(SUB FOR U46489)

1шт.
