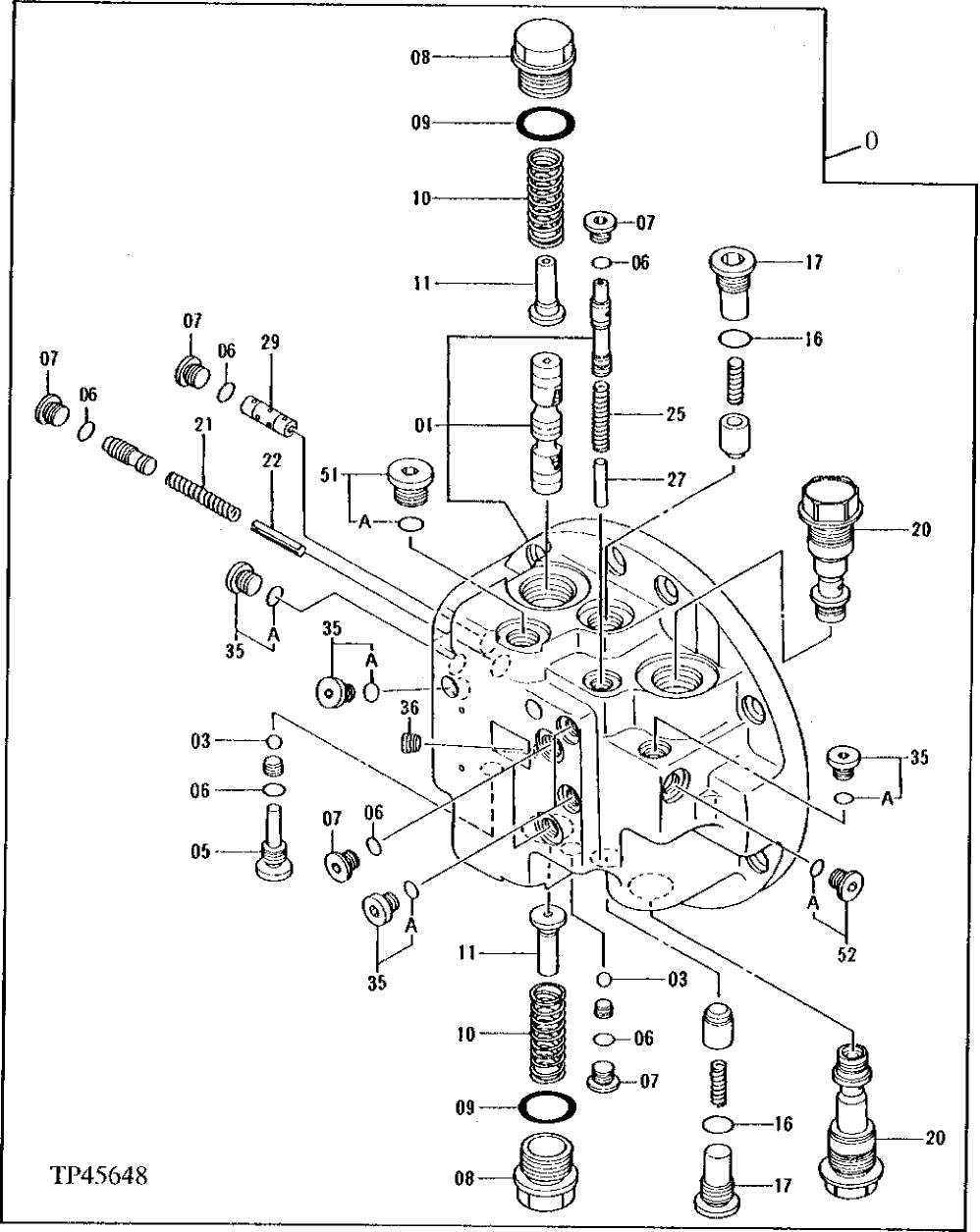

Запчасти John Deere 90E 15 - Brake Valve (025000 - ) 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

9133167

Flow Control Hyd. Valve

(SUB FOR AT202485)

1шт.

1

8056895

Case

(SUB FOR AT202478)

1шт.

3

R26552

Ball

7.938 mm (5/16")

2шт.

5

4335918

Fitting

(SUB FOR AT203654)

1шт.

6

M800650

Packing

7шт.

7

4208977

Drain Plug

(SUB FOR TH111351)

6шт.

8

4229631

Drain Plug

(SUB FOR TH112085)

2шт.

9

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

2шт.

10

4229522

Compression Spring

(SUB FOR AT154160)

2шт.

11

4229521

Stop

(SUB FOR AT154159)

2шт.

16

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

2шт.

17

4275049

Fitting

(SUB FOR AT154324)

2шт.

20

9120414

Pressure Relief Valve

(SUB FOR AT202481)

2шт.

21

4229525

Compression Spring

(SUB FOR AT154161)

1шт.

22

34M7035

Spring Pin

5 X 40 mm

1шт.

25

4297257

Compression Spring

(SUB FOR AT159500)

1шт.

27

4281767

Stop

(SUB FOR AT154354)

1шт.

29

4312685

Valve Spool

(SUB FOR AT203655)

1шт.

35

9134109

Drain Plug

(SUB FOR AT203656)

5шт.

35A

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

1шт.

36

15H560

Pipe Plug

1/16"

1шт.

51

9134112

Fitting Plug

(SUB FOR AT203657)

1шт.

51A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

52

9134109

Drain Plug

(SUB FOR AT203656)

1шт.

52A

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

1шт.
