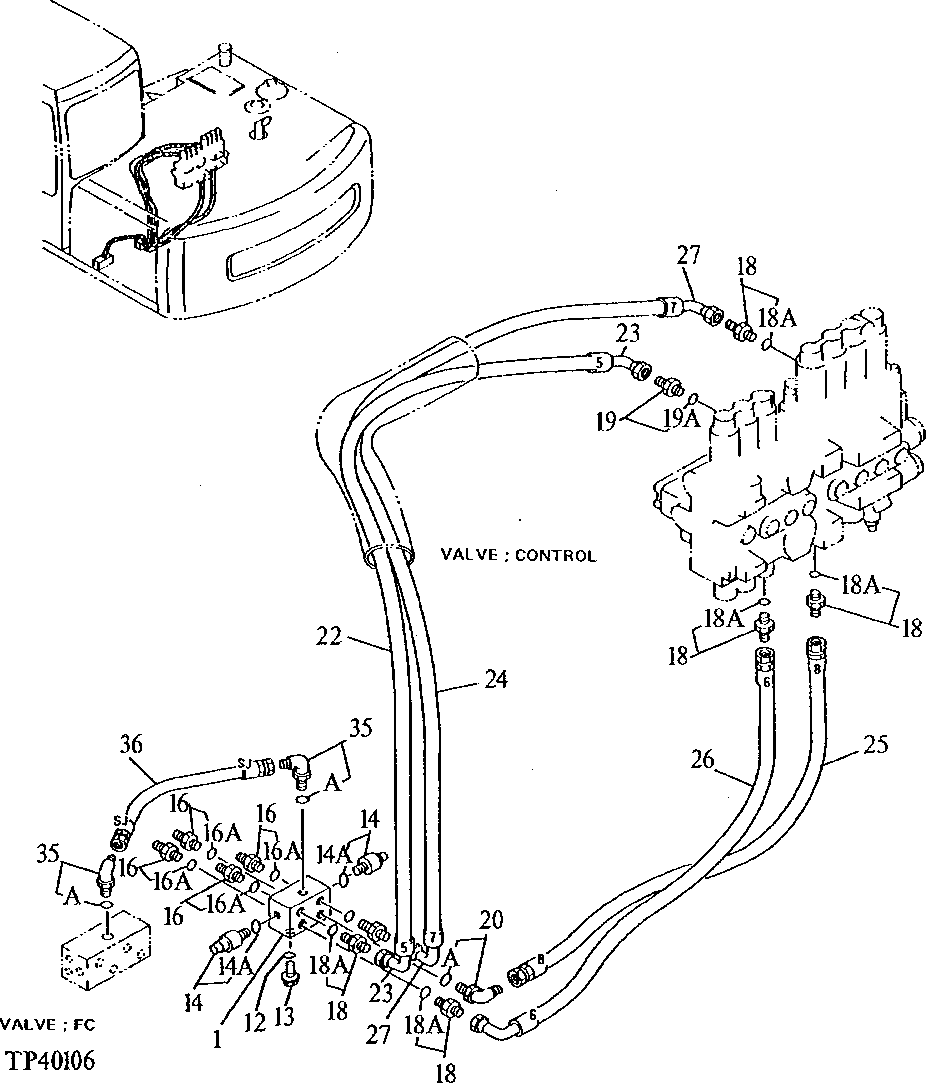

Запчасти John Deere 90E 230 - Pilot Lines 3360 Hydraulic System

1

4254613

Flow Control Hyd. Valve

(SUB FOR AT154218)(SHUTTLE)

1шт.

12

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

13

19M7932

Cap Screw

M8 X 16

2шт.

14

4254563

Pressure Switch

(SUB FOR AT154212)(BOOM D OWN AND ARM IN FUNCTIONS)

2шт.

14A

CH19111

O-Ring

1шт.

16

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

16A

CH11570

O-Ring

1шт.

18

4200466

Adapter Fitting

(SUB FOR TH108320)

6шт.

18A

CH11570

O-Ring

1шт.

19

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

19A

M800650

Packing

1шт.

20

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

20A

CH11570

O-Ring

1шт.

22

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

23

AE24616

Elbow Fitting

2шт.

24

AT48717

Hydraulic Hose

9/16" X 1130 mm (44-1/2") X 9/16"

1шт.

25

AT57860

Hydraulic Hose

9/16" X 1016 mm (40") X 9/16"

1шт.

26

AT68572

Hydraulic Hose

9/16" X 837 mm (33") X 9/16"

1шт.

27

AE24616

Elbow Fitting

2шт.

35

4154670

Elbow Fitting

(SUB FOR TH100951)

2шт.

35A

M800650

Packing

1шт.

36

AR101376

Hydraulic Hose

11.1252" X 355 mm (14") X 11.1252"

1шт.
