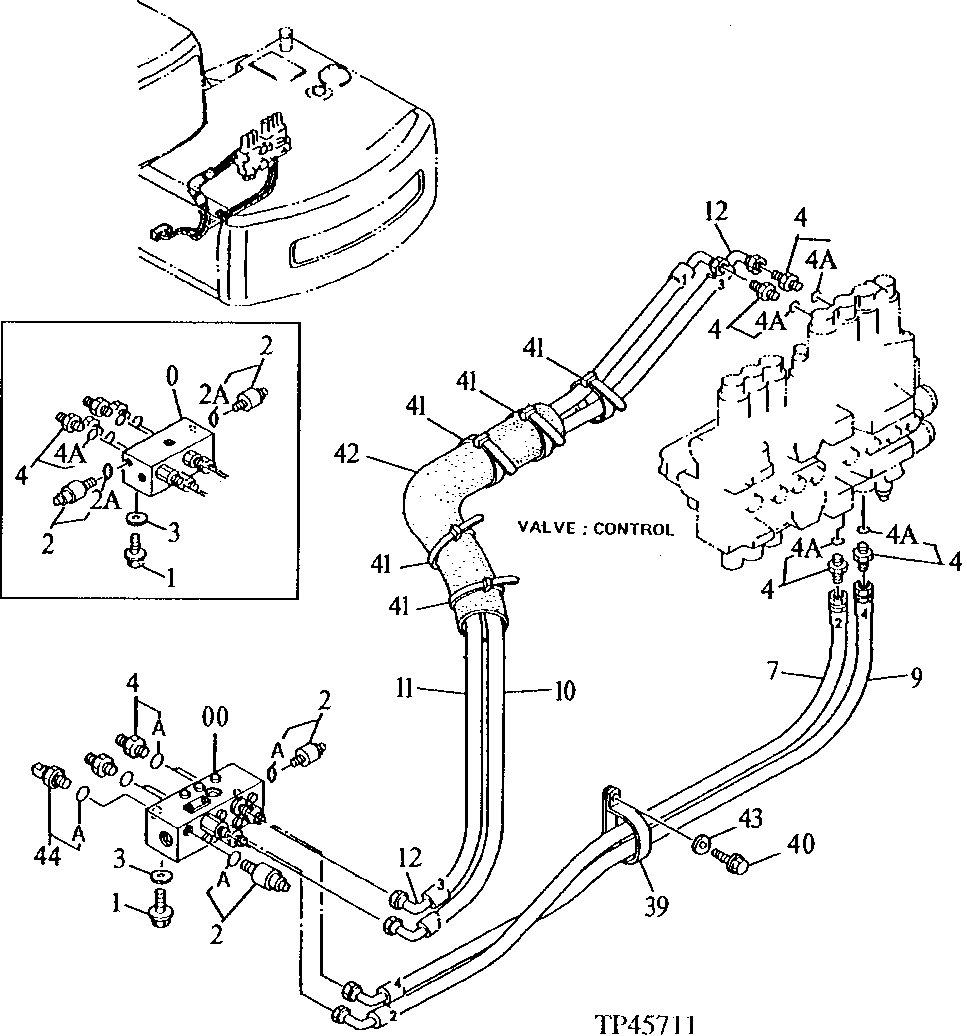

Запчасти John Deere 90E 229 - Pilot Lines 3360 Hydraulic System

0

Hyd Actuated Control Valve

SUB FOR AT158385, 4310803 NLA

1шт.

4340320

Flow Control Hyd. Valve

SUB FOR AT202470

1шт.

1

19M7932

Cap Screw

M8 X 16

2шт.

2

4254563

Pressure Switch

SUB FOR AT154212 Swing And Dig Function

2шт.

2A

CH19111

O-Ring

1шт.

3

12M7056

Lock Washer

8 mm SUB FOR 12M7065

2шт.

4

4200466

Adapter Fitting

SUB FOR TH108320

8шт.

4A

CH11570

O-Ring

1шт.

7

AT72803

Hydraulic Hose

9/16" X 1498 mm (59") X 9/16"

1шт.

9

AT72803

Hydraulic Hose

9/16" X 1498 mm (59") X 9/16"

1шт.

10

AR103791

Hose

1шт.

11

4447637

Hydraulic Hose

SUB FOR AT71731

1шт.

12

AE24616

Elbow Fitting

2шт.

39

R134002

Clamp

SUB FOR TH111255 AND 4193816

1шт.

40

19M7402

Cap Screw

M10 X 25

1шт.

41

H77698

Tie Band

5шт.

42

4217147

Isolator

SUB FOR TH110676

1шт.

43

12M7066

Lock Washer

10 mm

1шт.

44

Sensor

4326876 NLA, SUB FOR AT202458

1шт.

44A

TH102560

O-Ring

15.800 X 2.400 mm (0.622" X 3/32")

1шт.
