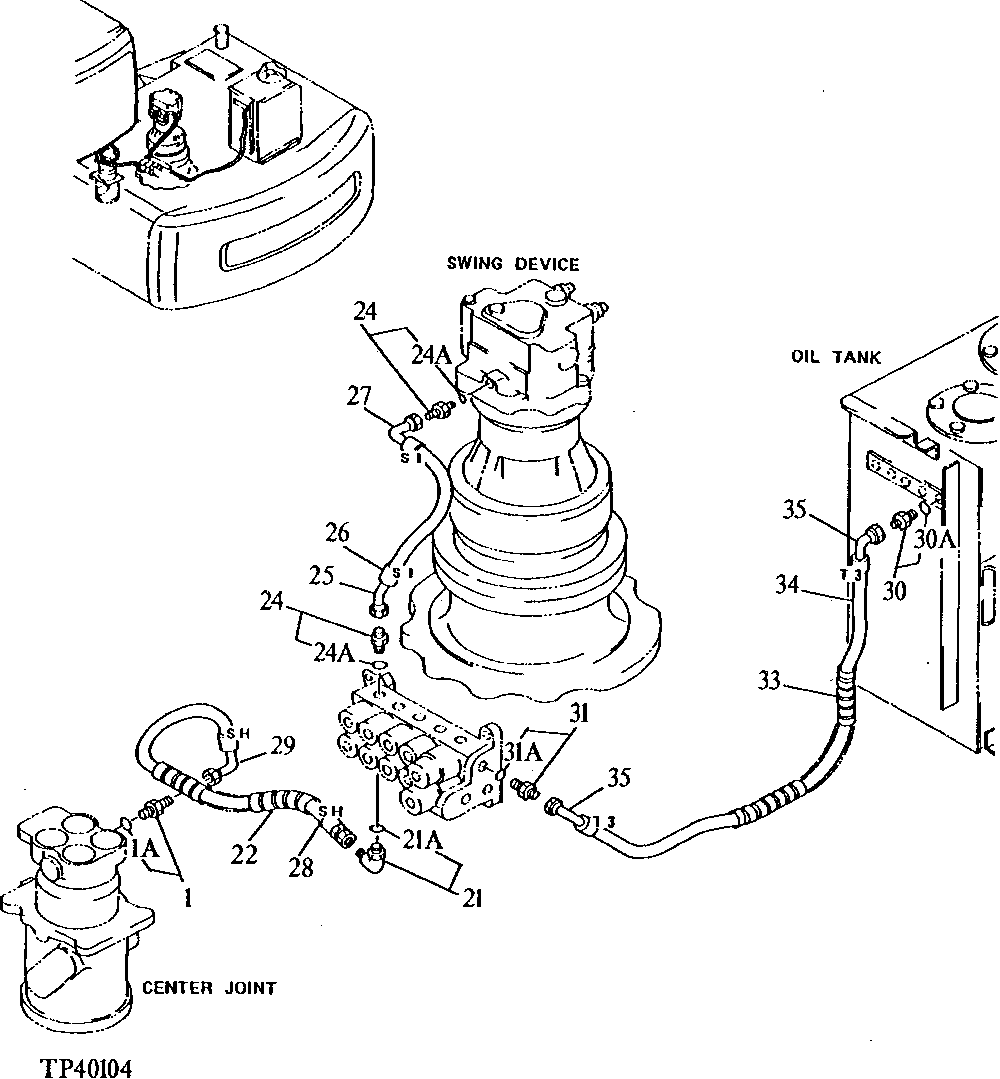

Запчасти John Deere 90E 228 - Pilot Lines 3360 Hydraulic System

1

4200465

Adapter Fitting

SUB FOR TH108328

1шт.

1A

M800650

Packing

1шт.

21

4154670

Elbow Fitting

SUB FOR TH100951

1шт.

21A

M800650

Packing

1шт.

22

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

1шт.

24

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

24A

M800650

Packing

1шт.

25

X4V6X-S

Elbow Fitting

SUB FOR AT128355 OR X3703-4-4

1шт.

26

AH97777

Hydraulic Hose

11.1252" X 406 mm (16") X 11.1252"

1шт.

27

AH89069

Elbow Fitting

1шт.

28

AE42282

Hydraulic Hose

11.1252" X 899 mm (35-1/2") X 11.1252"

1шт.

29

AH89069

Elbow Fitting

1шт.

30

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

30A

CH11570

O-Ring

1шт.

31

4200467

Adapter Fitting

SUB FOR TH108417

1шт.

31A

M800650

Packing

1шт.

33

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

1шт.

34

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

35

AE24616

Elbow Fitting

2шт.
