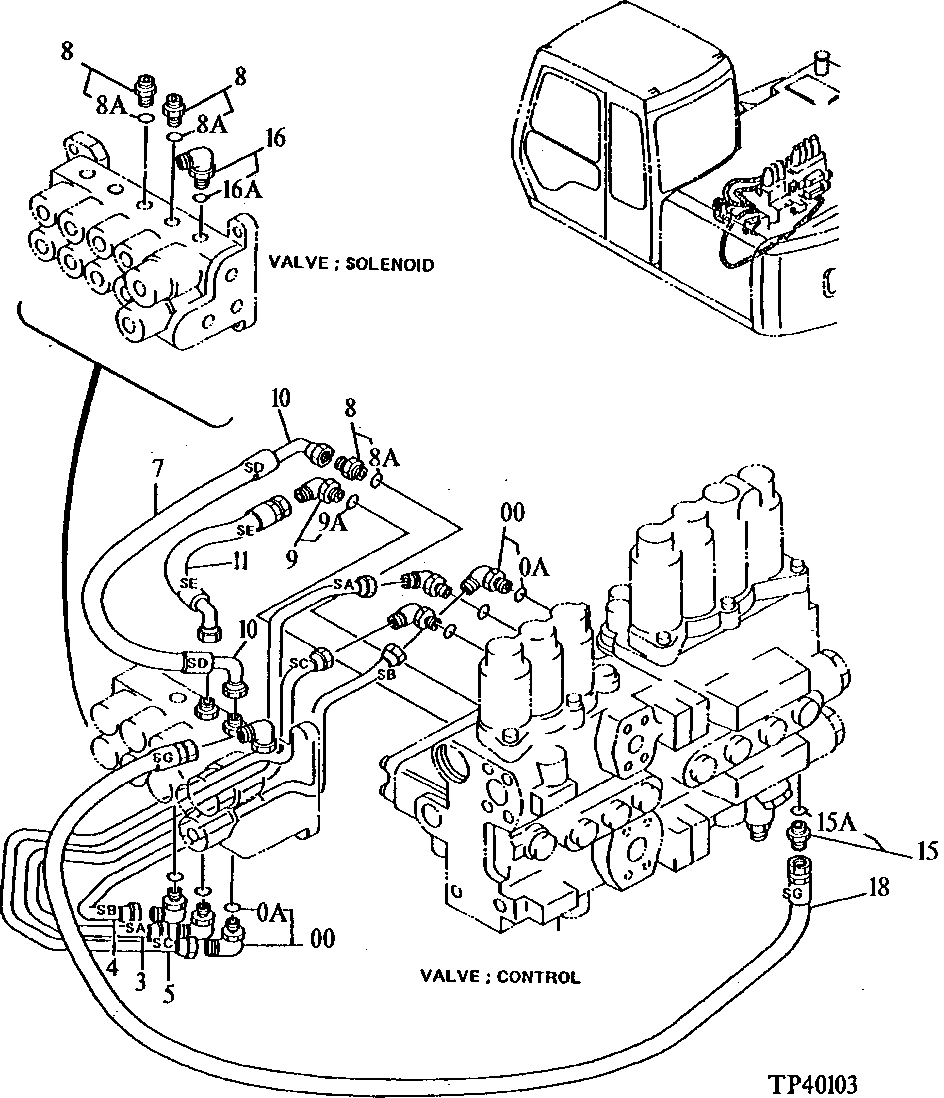

Запчасти John Deere 90E 227 - Pilot Lines 3360 Hydraulic System

0

4293950

Fitting

(SUB FOR AT160584)

6шт.

0A

M800650

Packing

1шт.

3

3056016

Oil Line

(SUB FOR AT154138)

1шт.

4

3055270

Oil Line

(SUB FOR AT154132)

1шт.

5

3055272

Oil Line

(SUB FOR AT154133)

1шт.

7

AT126482

Hydraulic Hose

11.1252" X 500 mm (19-3/4") X 11.1252"

1шт.

8

4200465

Adapter Fitting

(SUB FOR TH108328)

3шт.

8A

M800650

Packing

1шт.

9

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

9A

M800650

Packing

1шт.

10

AH89069

Elbow Fitting

2шт.

11

AT163097

Hydraulic Hose

11.1252" X 220 mm (8-3/4") X 11.1252" (SUB FOR AR101376, THIS APPLICATION)

1шт.

15

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

15A

M800650

Packing

1шт.

16

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

1шт.

16A

M800650

Packing

1шт.

18

AT48422

Hydraulic Hose

9/16" X 1422 mm (56") X 9/16"

1шт.
