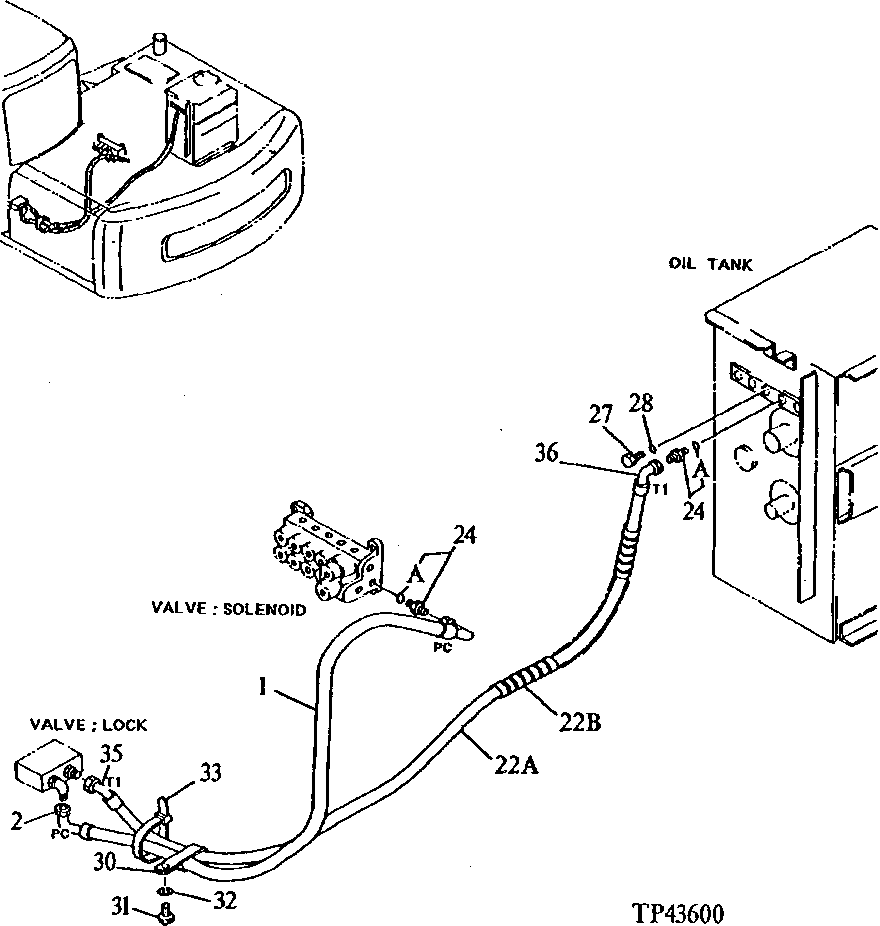

Запчасти John Deere 90E 226 - Pilot Lines 3360 Hydraulic System

1

AT72803

Hydraulic Hose

SUB FOR AT154991, ALONG WITH AE24616

1шт.

2

AE24616

Elbow Fitting

1шт.

22A

AT130683

Hydraulic Hose

9/16" X 2349 mm (92-1/2") X 9/16"

1шт.

22B

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

1шт.

24

4200466

Adapter Fitting

SUB FOR TH108320

2шт.

24A

CH11570

O-Ring

1шт.

27

15M7036

Drain Plug

SUB FOR TH109285 OR 0309805

1шт.

28

CH11570

O-Ring

1шт.

30

4190266

Clip

SUB FOR TH108793

1шт.

31

19M7938

Cap Screw

M10 X 20

1шт.

32

12M7066

Lock Washer

10 mm

1шт.

33

H77698

Tie Band

1шт.

35

AE24616

Elbow Fitting

1шт.

36

AU43156

Elbow Fitting

1шт.
