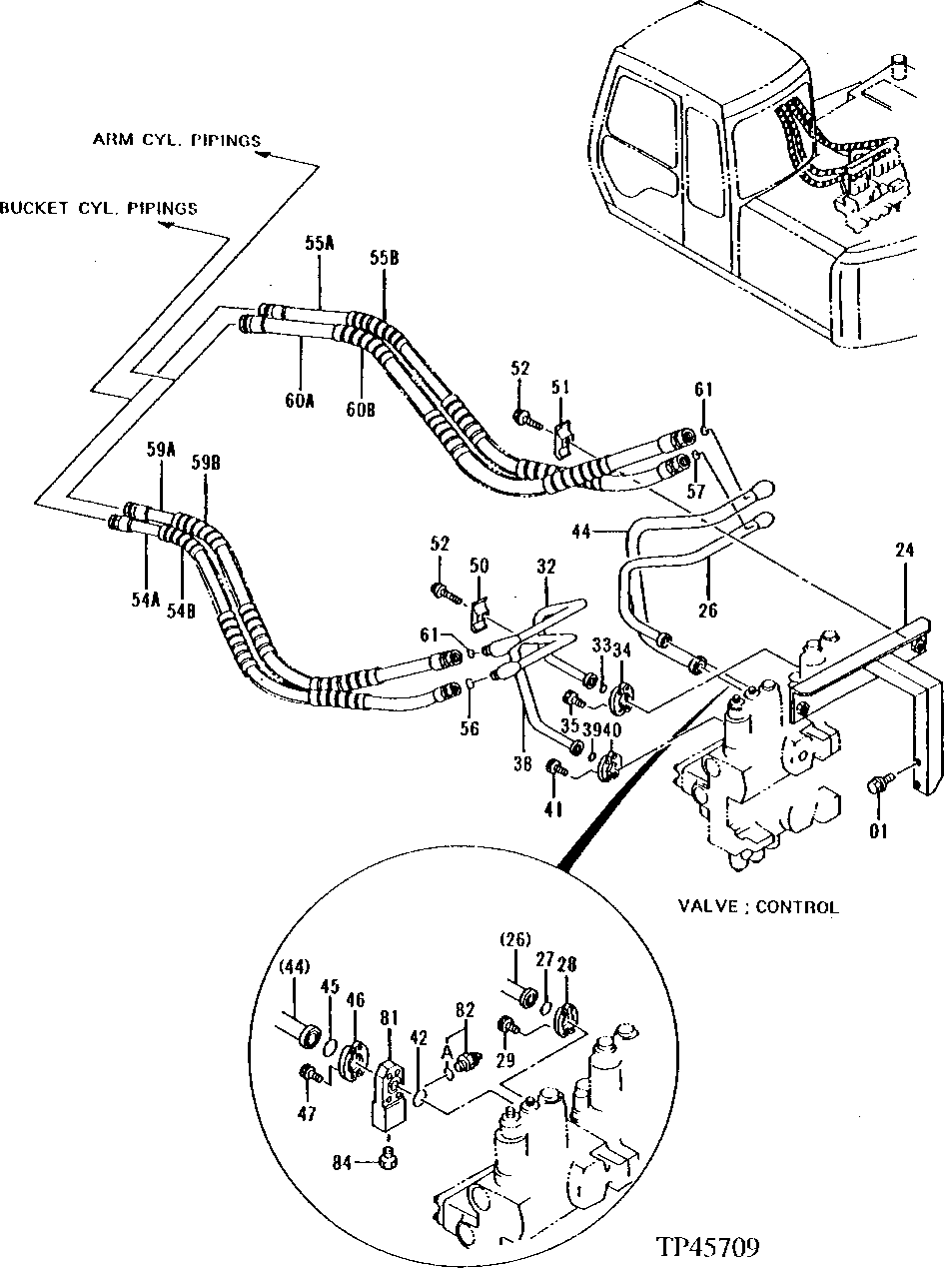

Запчасти John Deere 90E 221 - Main Hydraulic Lines 3360 Hydraulic System

1

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

24

8049612

Support

(SUB FOR AT154497)

1шт.

26

8050276

Oil Line

(SUB FOR AT154500)

1шт.

27

R69667

O-Ring

1шт.

28

4510173

Fitting

(SUB FOR TH108341)

2шт.

29

19M8439

Screw

M8 X 25

4шт.

32

8047351

Oil Line

(SUB FOR AT154483)

1шт.

33

R69667

O-Ring

1шт.

34

4510173

Fitting

(SUB FOR TH108341)

2шт.

35

19M8439

Screw

M8 X 25

4шт.

38

8047352

Oil Line

(SUB FOR AT154484)

1шт.

39

R69667

O-Ring

1шт.

40

4510173

Fitting

(SUB FOR TH108341)

2шт.

41

19M8439

Screw

M8 X 25

4шт.

42

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

1шт.

44

8047350

Oil Line

(SUB FOR AT154482)

1шт.

8059501

Line

(SUB FOR AT202480)

1шт.

45

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

1шт.

46

R29424

Flange Fitting

2шт.

47

19M8337

Screw

M10 X 30

4шт.

19M8213

Screw

M10 X 50 (SUB FOR AT203627)

4шт.

50

4189858

Clamp

(SUB FOR TH108333)

1шт.

51

4141806

Clamp

(SUB FOR TH100968)

1шт.

52

19M7362

Cap Screw

M12 X 55

2шт.

12H301

Lock Washer

1/2"

2шт.

54A

4285804

Hydraulic Hose

(SUB FOR AT131290)

1шт.

54B

Hose Guard

(MAKE FROM XHG-075 BULK MATE RIAL, CTL) (SUB FOR AT138222)

2шт.

55A

4286047

Hydraulic Hose

(SUB FOR AT131291)

1шт.

55B

Hose Guard

(MAKE FROM XHG-075 BULK MATE RIAL, CTL) (SUB FOR AT138222)

2шт.

56

T77857

O-Ring

1шт.

57

T77858

O-Ring

1шт.

59A

4271813

Hydraulic Hose

(SUB FOR AT131292)

1шт.

59B

Hose Guard

(MAKE FROM XHG-075 BULK MATE RIAL, CTL) (SUB FOR AT138222)

2шт.

60A

AT131293

Hydraulic Hose

1шт.

60B

Hose Guard

(MAKE FROM XHG-075 BULK MATE RIAL, CTL) (SUB FOR AT138222)

2шт.

61

T77858

O-Ring

2шт.

81

3067665

Flange

(SUB FOR AT202430)

1шт.

82

4436271

Sensor

(SUB FOR AT202390, AT175981 OR 4355 012)(ARM IN PRESSURE SENSOR SWITCH)

1шт.

82A

TH102560

O-Ring

15.800 X 2.400 mm (0.622" X 3/32")

1шт.

84

AT318013

Drain Plug

(SUB FOR 4093624 ) (SUB FOR TH102536)

1шт.
