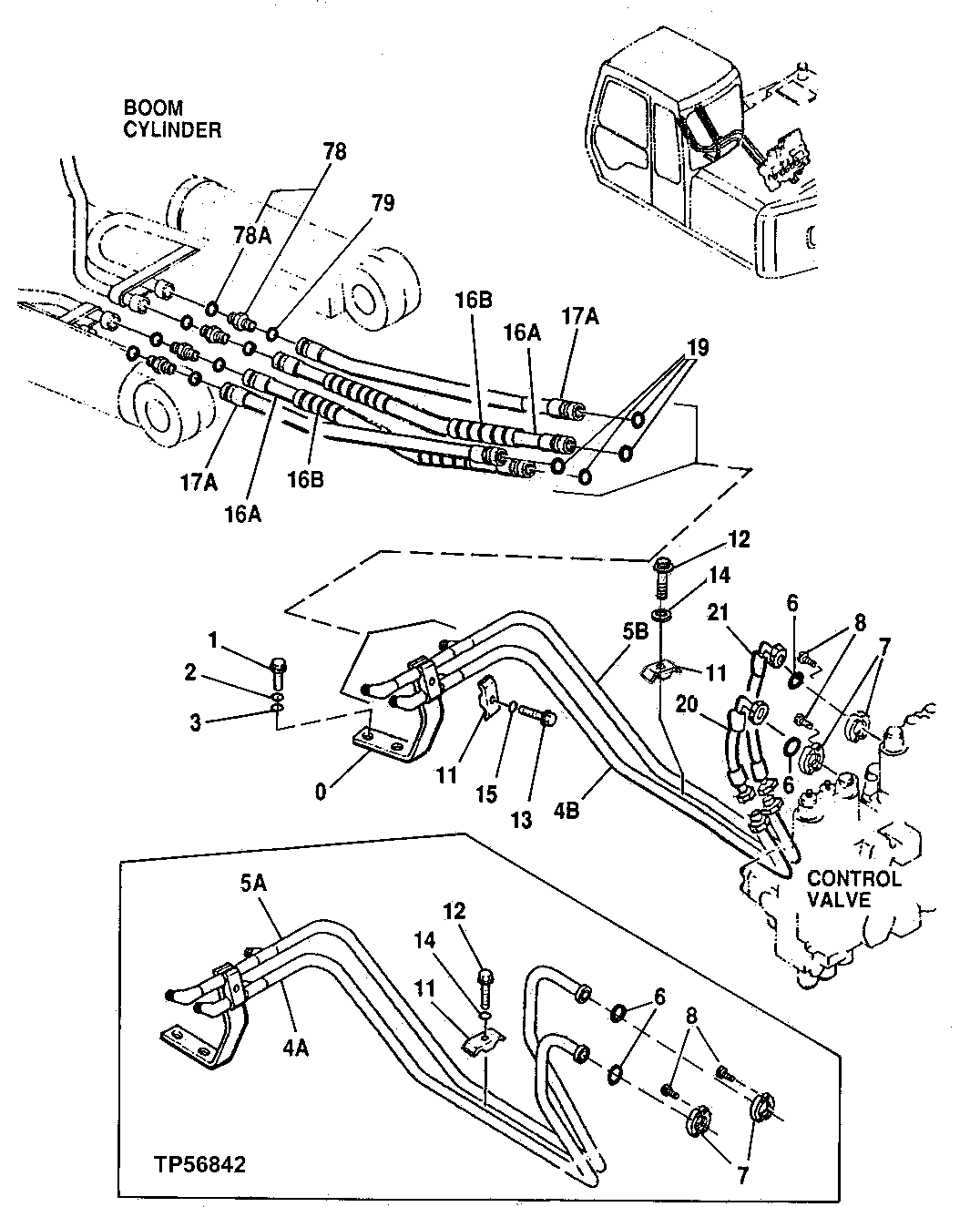

Запчасти John Deere 90E 220 - Main Hydraulic Lines 3360 Hydraulic System

0

Support

(NOT AVAILABLE FOR SERVICE)

1шт.

1

19M7872

Cap Screw

M12 X 25

2шт.

2

12H301

Lock Washer

1/2"

2шт.

3

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

4A

8070369

Line

(SUB FOR 8047349 ) (ALSO ORDE R 4392570 ) (SUB FOR AT187355)

1шт.

4B

8070369

Line

(SUB FOR AT187355)

1шт.

5A

8070370

Line

(SUB FOR 8047348 ) (ALSO ORDE R 4392571 ) (SUB FOR AT187356)

1шт.

5B

8070370

Line

(ALSO ORDER 4392571 ) (SUB FOR AT187356)

1шт.

6

R69667

O-Ring

2шт.

7

4510173

Fitting

(SUB FOR TH108341)

4шт.

8

19M8439

Screw

M8 X 25

8шт.

11

4189858

Clamp

(SUB FOR TH108333)

2шт.

12

19M7361

Cap Screw

M12 X 50

1шт.

13

19M7363

Cap Screw

M12 X 60

1шт.

14

12H301

Lock Washer

1/2"

1шт.

15

12H301

Lock Washer

1/2"

1шт.

16A

AT155624

Hydraulic Hose

2шт.

16B

Hose Guard

(MAKE FROM XHG-075 BULK MATE RIAL, CTL) (SUB FOR AT138222)

2шт.

17A

AT155624

Hydraulic Hose

2шт.

19

T77857

O-Ring

4шт.

20

4392570

Hydraulic Hose

(SUB FOR AT187357)

1шт.

21

4392571

Hydraulic Hose

(SUB FOR AT187358)

1шт.

78

4189602

Fitting

(SUB FOR TH108350)

4шт.

78A

4506418

O-Ring

(SUB FOR U46489)

1шт.

79

T77857

O-Ring

4шт.
