Запчасти John Deere 90E 217 - Standard Arm 3340 Frames

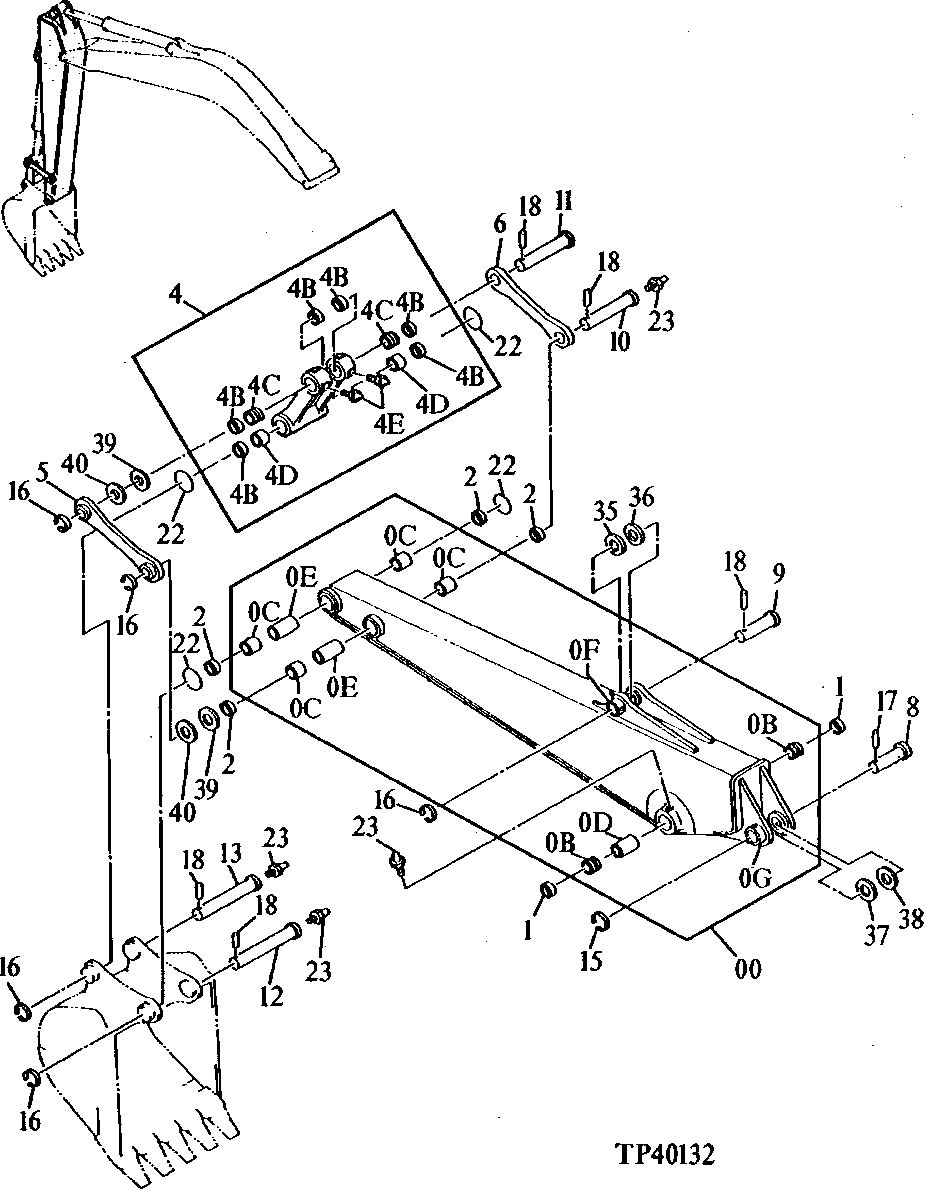

Схема запчастей John Deere 90E - 217 - Standard Arm 3340 Frames

Артикул

Название

Примечание

Количество

0

AP34180

Arm

1шт.

0B

3051399

Bushing

(SUB FOR AT126135 ) (SUB FOR AT154116)

2шт.

0C

AT122209

Bushing

(SUB FOR TH108931)

4шт.

0D

4258181

Spacer

(SUB FOR AT154250)

1шт.

0E

4124575

Spacer

(SUB FOR TH100369)

2шт.

0F

TH108649

Bushing

1шт.

0G

4276106

Stop

(SUB FOR AT154325)

1шт.

1

TH104472

Seal

2шт.

2

TH100374

Seal

4шт.

4

8050179

Link

(SUB FOR AT154498)

1шт.

4B

TH100374

Seal

6шт.

4C

4188796

Bushing

(SUB FOR TH108930)

2шт.

4D

AT122209

Bushing

(SUB FOR TH108931)

2шт.

4E

TH100074

Lubrication Fitting

2шт.

5

9735190

Link

(SUB FOR AT154543)

1шт.

6

4257933

Link

(SUB FOR AT154248)

1шт.

8

AT154119

Pin Fastener

1шт.

9

3044367

Pin

(SUB FOR AT134035)

1шт.

10

TH108940

Pin

1шт.

11

P66990

Shear Pin

(SUB FOR TH108943)

1шт.

12

AT318059

Pin Fastener

(SUB FOR 3084540 ) (ALSO ORDER TH100074 ) (SUB FOR TH108941)

1шт.

13

Pin

( P68886 NLA) (SUB FOR T H108942) (ORDER 3089242)

1шт.

3089242

Pin Fastener

Not Illustrated Pin Not Drilled For G rease Fitting See DTAC Solution 90615

1шт.

15

4098716

Ring

(SUB FOR TH103631)

1шт.

16

4065688

Retainer

(SUB FOR TH100624)

5шт.

17

4106307

Pin

(SUB FOR TH104411)

1шт.

18

4065689

Pin Fastener

(SUB FOR TH100625) (USE WITH P68886)

5шт.

22

4276696

O-Ring

Standard O-Ring

4шт.

AT349465

Seal

Split O-Ring

4шт.

23

TH100074

Lubrication Fitting

(USE WITH P68886)

5шт.

35

4179807

Washer

(SUB FOR TH108045)

1шт.

36

4284139

Washer

(SUB FOR AT154378)

1шт.

37

4366692R

Thrust Washer

(SUB FOR TH105593, 4366692 OR AT214030)

1шт.

38

4367410R

Thrust Washer

(SUB FOR TH105592, 4367410 OR AT214040)

1шт.

39

4075357

Washer

(SUB FOR TH108944)

2шт.

40

4075358

Washer

(SUB FOR TH108955)

2шт.

50

AT176038

Arm

(WHOLE GOODS) Includes Standard Arm, Bu cket Cylinder And Linkage Not Illustrate d Contains All Items On This Page Additi onal Components Listed On Separate Pages

1шт.

Выбрано товаров: 37
