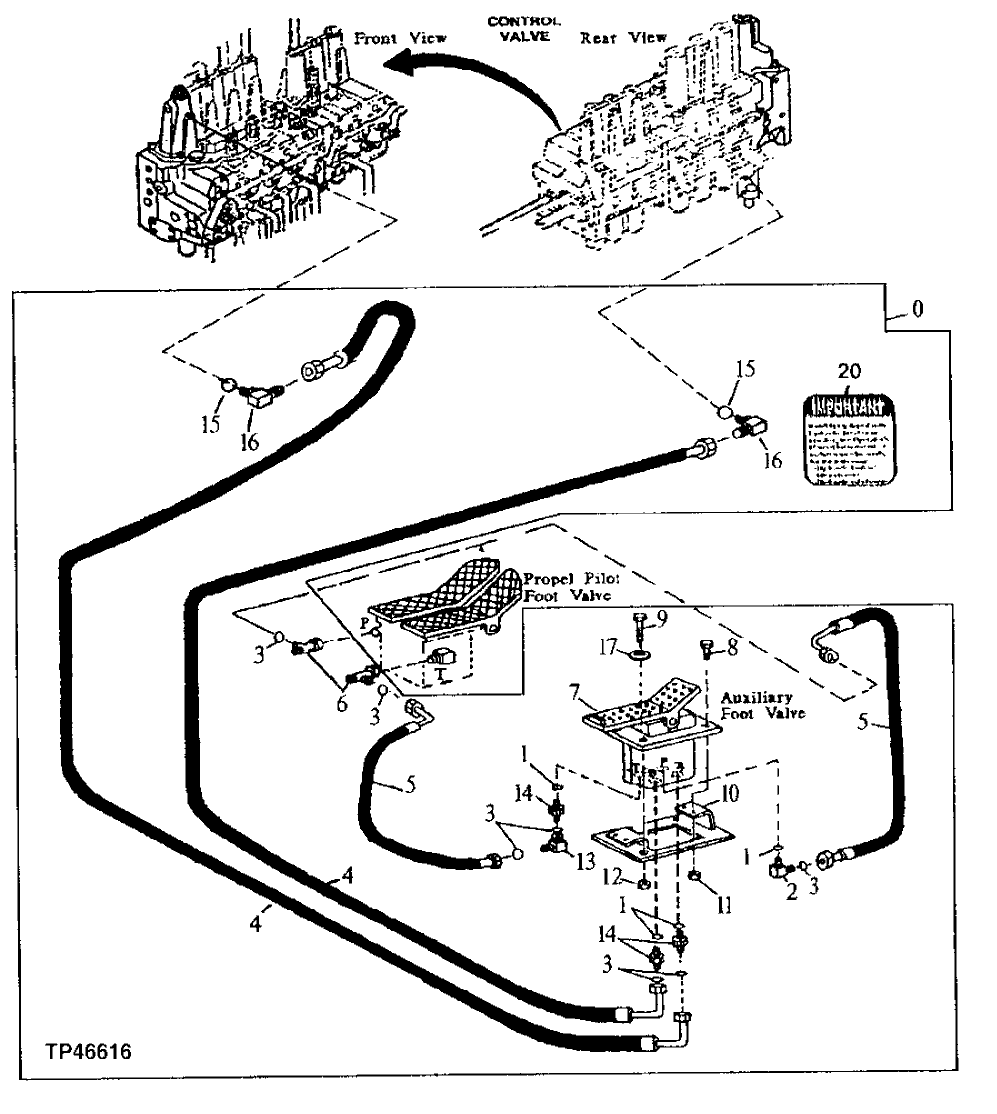

Запчасти John Deere 90E 213 - Auxiliary Foot Pedal Control 3315 Controls Linkage

0

Field Installation Kit

(SUB AT195684)( AT160350 AND A T185482 NLA) ( AT195684 NLA) (AU XILIARY FOOT PEDAL) (WHOLE GOODS )

1шт.

1

R26448

O-Ring

4шт.

2

38H1004

Elbow Fitting

1шт.

3

T77613

O-Ring

7шт.

4

AT160348

Hydraulic Hose

17.4752" X 3454 mm (136") X 17.4752"

2шт.

5

AT152138

Hydraulic Hose

9/16" X 515 mm (20-1/4") X 17.4752"

2шт.

6

AT36921

Tee Fitting

2шт.

7

AT152120

Valve

1шт.

8

19M7866

Screw

M8 X 20

4шт.

9

19M7784

Screw

M10 X 20

2шт.

10

AT115535

Support

1шт.

11

14M7298

Flange Nut

M8

4шт.

12

14M7296

Flange Nut

M10

1шт.

13

38H1094

Elbow Fitting

1шт.

14

38H1160

Adapter Fitting

3шт.

15

CH11570

O-Ring

2шт.

16

AT137356

Elbow Fitting

2шт.

17

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

20

T149434

Label

(ON RIGHT SIDE OF CAB BETWEEN ASH TRAY AND OPERATOR'S CAUTION DECAL)

1шт.
