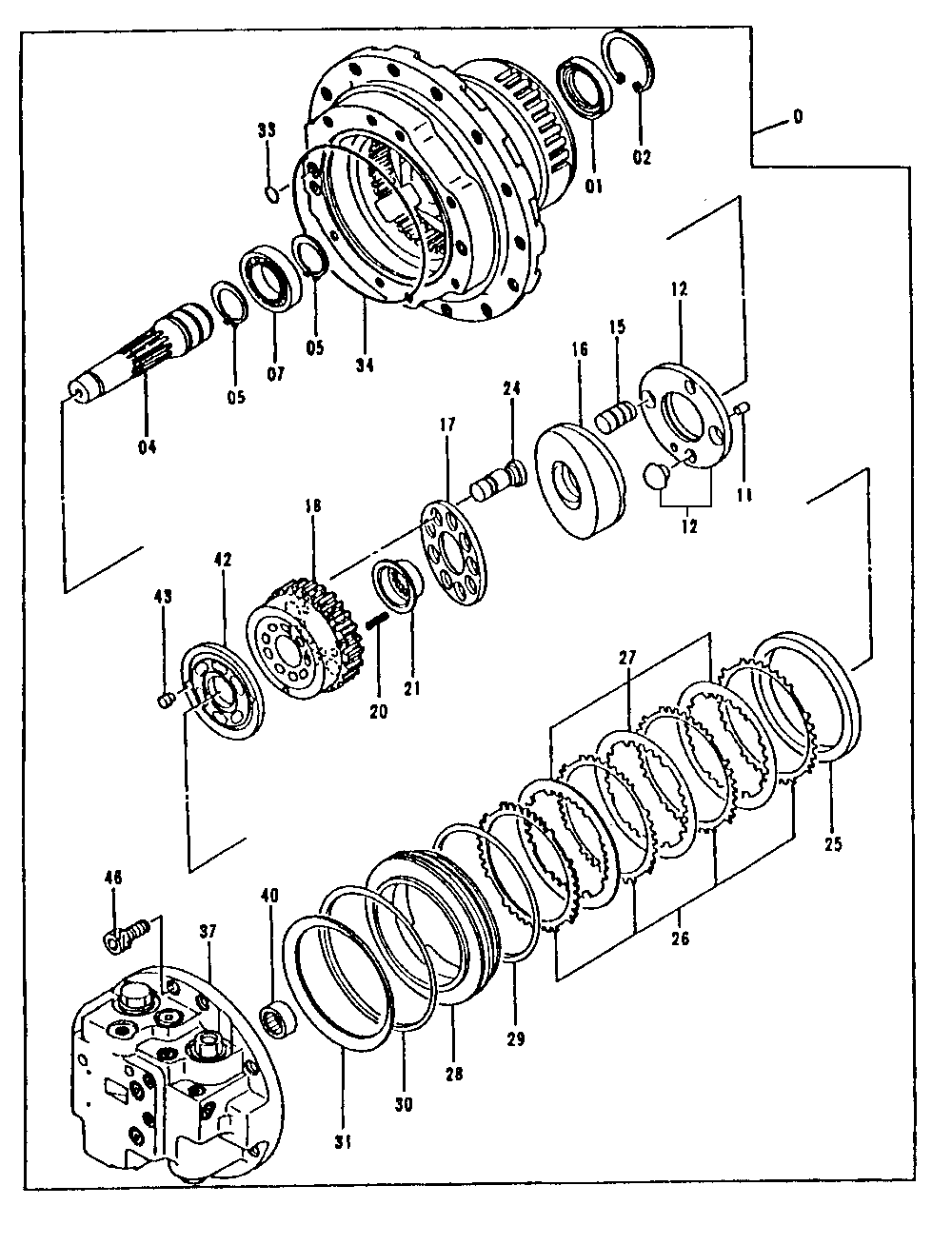

Запчасти John Deere 90E 12 - Travel Motor (025000 - ) 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

9133168

Hydraulic Motor

(SUB FOR AT202486)

1шт.

Hydraulic Motor

(REMAN) ( 9133168EX OR AT217366 NLA)

1шт.

1

4613831

Seal

(SUB FOR AT154154 OR 4212841)

1шт.

2

40M7090

Snap Ring

1шт.

Snap Ring

Not Required

1шт.

40M7090

Snap Ring

1шт.

Snap Ring

Not Required

1шт.

4

3063718

Shaft

(SUB FOR AT202413)

1шт.

5

40M7047

Snap Ring

2шт.

7

4343872

Cylindrical Roller Bearing

(SUB FOR AT154194) (SUB FOR AT176317)

1шт.

11

4212842

Pin

10.008 X 14.122 mm (0.394" X 0.556") (SUB FOR AT154155)

1шт.

12

9163200

Plate

(SUB FOR AT177803, AT154107, AT170 467 OR AT176318) (SUB FOR AT181701)

1шт.

15

4416040

Piston

(SUB FOR AT154292) (SUB FOR AT184567)

2шт.

16

3072797

Plate

(SUB FOR AT202420)

1шт.

17

3078124

Retainer

(SUB FOR AT154145)

1шт.

18

2028344

Rotor

(SUB FOR AT154067)

1шт.

20

4312681

Compression Spring

(SUB FOR AT202447) (SUB FOR AT170466)

9шт.

21

3065176

Bushing

(SUB FOR AT165704)

1шт.

24

8060510

Piston

(SUB FOR AT154502) Use If Available

9шт.

8060510

Piston

(SUB FOR AT154502) (SUB FOR AT176320)

9шт.

25

4266511

Spacer

(SUB FOR AT154303)

1шт.

26

3032432

Plate

(SUB FOR T107771)

4шт.

27

3043240

Plate

(SUB FOR AT154090)

3шт.

28

3051501

Piston

(SUB FOR AT154120)

1шт.

29

4232766

Ring

(SUB FOR T107773)

1шт.

30

4232767

Ring

(SUB FOR T107774)

1шт.

31

3043242

Disk Spring

(SUB FOR AT154091)

1шт.

33

T111819

O-Ring

14.800 X 2.400 mm (0.583" X 3/32")

3шт.

34

4244542

O-Ring

(SUB FOR AT154175)

1шт.

37

9133167

Flow Control Hyd. Valve

(SUB FOR AT202485) Brake

1шт.

40

AT154167

Needle Bearing

1шт.

42

3047922

Plate

(SUB FOR AT154097)

1шт.

43

4271350

Pin

(SUB FOR AT154313)

2шт.

46

M341232

Bolt

M12 X 32 (SUB FOR TH100046)

8шт.
