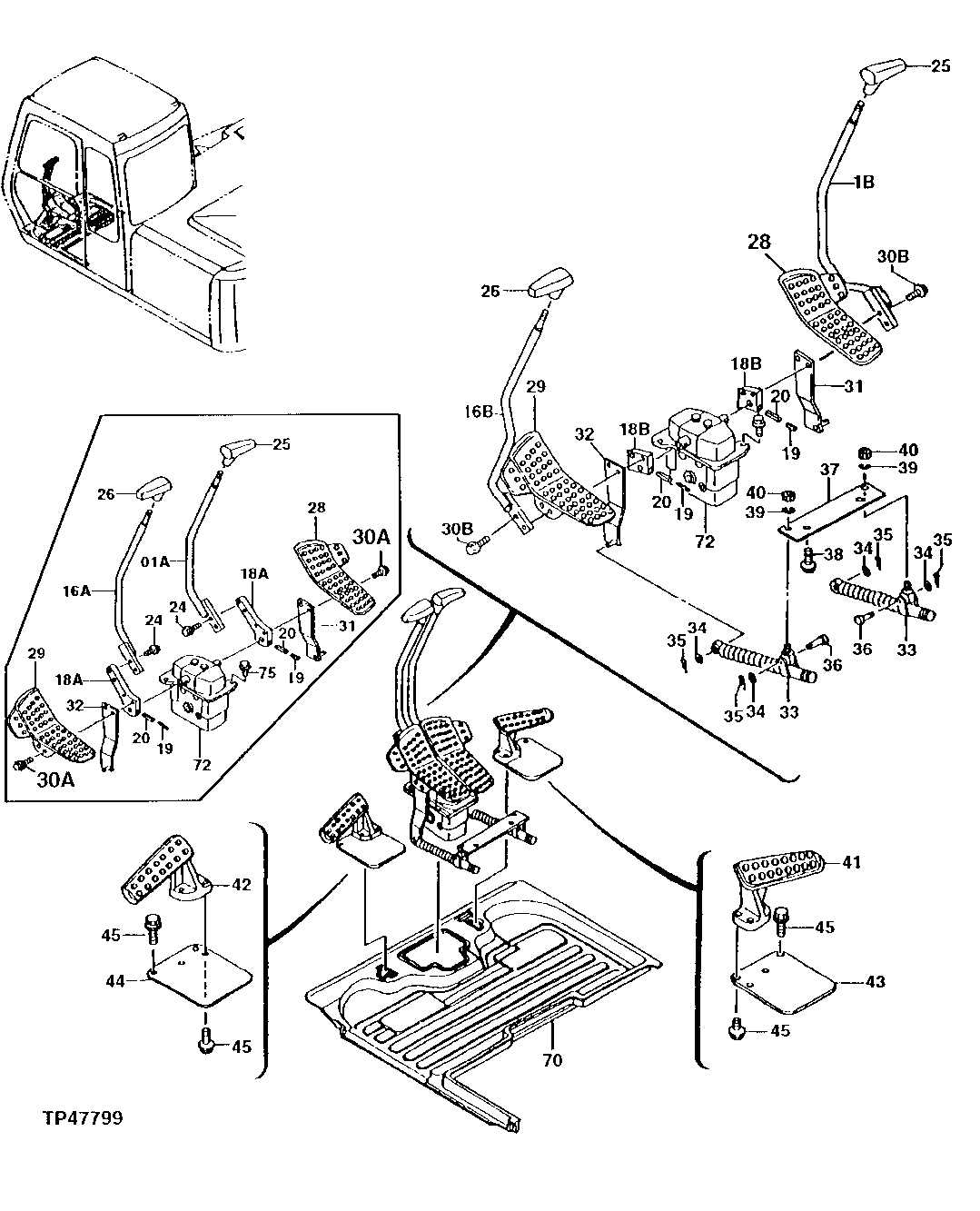

Запчасти John Deere 90E 207 - Brake Pedals, Flat Floor Cab (025000 - ) 3315 Controls Linkage

1A

8075450

Lever

(SUB FOR AT159142, 8062667)(USE IF AVAILABL E) (IF AT159142 IS NOT AVAILABLE, SUB AT1744 67, AT174468, (2) AT174469 AND (4) 19M7935)

1шт.

2043585

Grip

Not Illustrated

1шт.

4424185

Nut

Not Illustrated

1шт.

1B

8075450

Lever

(SUB FOR AT174467, 8062667)

1шт.

2043585

Grip

Not Illustrated

1шт.

4424185

Nut

Not Illustrated

1шт.

16A

Lever

(SUB AT174467, AT174468, (2) AT174 469 OR (4) 19M7935)( AT159143 NLA)

1шт.

16B

8075449

Lever

(SUB FOR AT174468 OR 8062623)

1шт.

2043584

Grip

(NOT ILLUSTRATED)

1шт.

4424185

Nut

(NOT ILLUSTRATED)

1шт.

18A

Bracket

( AT202294 NO LONGER AVAILABLE, SUB AT1744 67, AT174468, (2) T205603 AND (4) 19M7935)

2шт.

18B

T205603

Bracket

(SUB FOR AT174469 OR 3072628)

2шт.

19

34M7062

Spring Pin

5 X 32 mm

2шт.

20

34M7124

Spring Pin

8 X 30 mm (SUB FOR 34M7065)

2шт.

24

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

25

2030249

Grip

(SUB FOR AT154077)

1шт.

26

2030254

Grip

(SUB FOR AT154078)

1шт.

28

1024384

Pedal

(SUB FOR AT202292)

1шт.

29

1024224

Pedal

(SUB FOR AT202291)

1шт.

30A

19M8638

Cap Screw

M20 X 65

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

30B

19M7935

Cap Screw

M10 X 55

4шт.

31

Bracket

( AT307241 AND 9741920 NLA)

1шт.

32

Bracket

( AT307242 AND 9741921 NLA)

1шт.

33

4204959

Torsional Damper

(SUB FOR TH108384)

2шт.

34

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

35

H132922

Cotter Pin

4шт.

36

4044928

Pin

8 X 29 mm (0.315" X 1.1 42") (SUB FOR TH108385)

2шт.

37

4359716

Bracket

(SUB FOR AT201281 ) (SUB FOR AT215938)

1шт.

38

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

39

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

40

14M7273

Nut

M8

2шт.

41

1015478

Footrest

(SUB FOR AT154056)

1шт.

42

1015477

Footrest

(SUB FOR AT154055)

1шт.

43

3052543

Cover

(SUB FOR AT154127)

1шт.

44

4338635

Cover

(SUB FOR AT202338)

1шт.

45

19M7550

Cap Screw

M10 X 35

8шт.

12M7066

Lock Washer

10 mm

8шт.

70

0001671

Mat

(SUB FOR AT202277)

1шт.

72

9149235

Hyd Actuated Control Valve

(SUB FOR AT154526 ) (SUB FOR AT214393)

1шт.

75

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.
