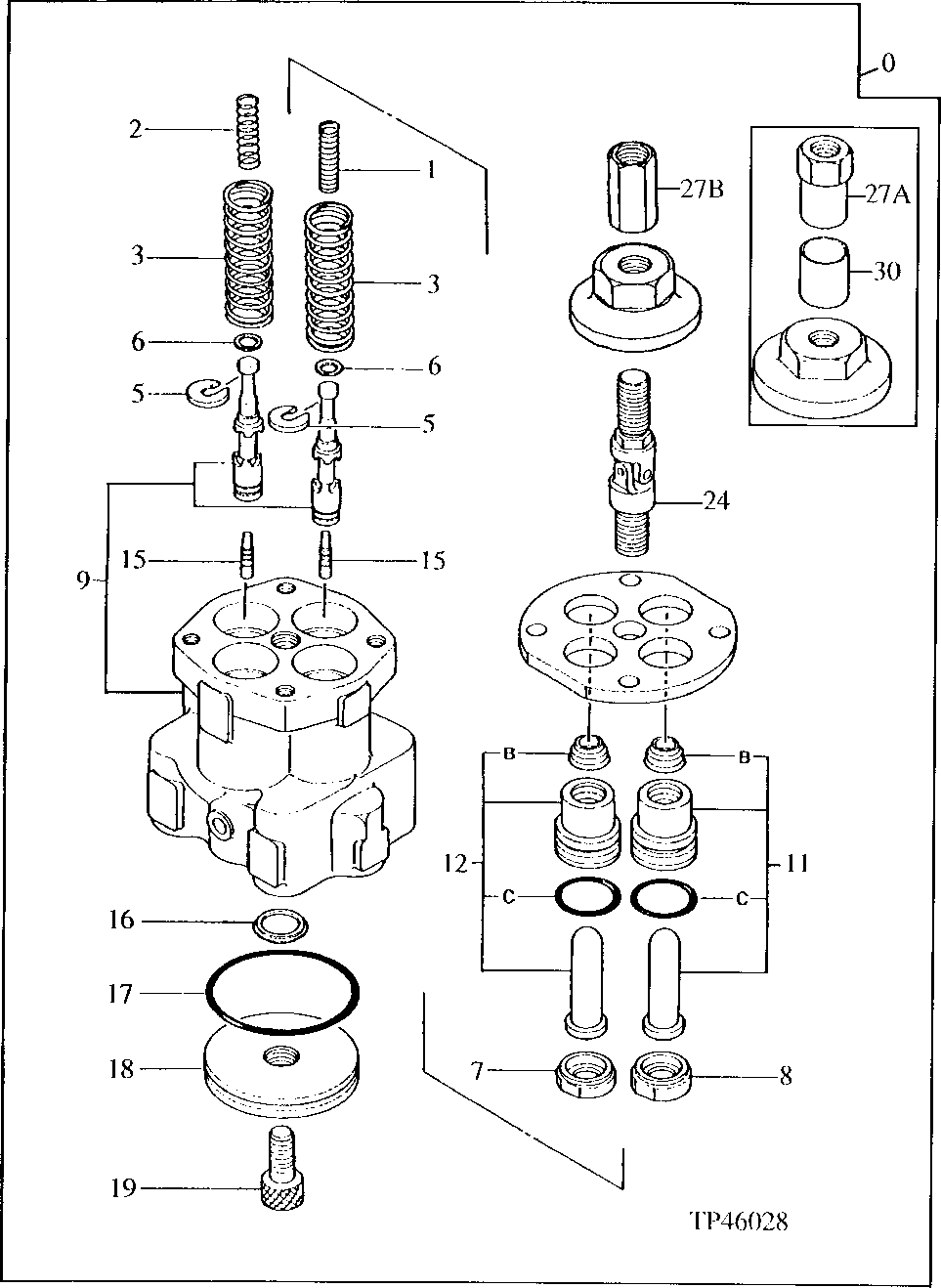

Запчасти John Deere 90E 205 - Pilot Valve Components (025000 - ) 3315 Controls Linkage

0

9134239

Valve

NLA (ORDER 9134239EX)

1шт.

9134239EX

Hyd/Pilot Cntl Valve Reman

(REMAN FOR 9134239) (SUB FOR AT202169, AT189843)

1шт.

1

4201915

Spring

(SUB FOR TH109212)

2шт.

2

4166686

Compression Spring

(SUB FOR TH109213)

2шт.

3

4195421

Compression Spring

(SUB FOR TH109214)

4шт.

5

4177777

Spacer

(SUB FOR AT154411 ) (SUB FOR TH109216)

4шт.

6

4173208

Shim

(SUB FOR TH109217)

20шт.

7

4177896

Guide

(SUB FOR TH109218)

2шт.

8

4179257

Guide

(SUB FOR AT154412 ) (SUB FOR TH109219)

2шт.

9

7024552

Housing

(SUB FOR AT155700)

1шт.

11

9101513

Cap

(SUB FOR AT154538)

2шт.

11B

4476342

Seal

(SUB FOR AT131269, 4359926)

1шт.

11C

U46166

O-Ring

24.400 X 3.100 mm (0.961" X 0.122")

1шт.

12

9108066

Cap

(SUB FOR AT154540)

2шт.

12B

4476342

Seal

(SUB FOR AT131269, 4359926)

1шт.

12C

U46166

O-Ring

24.400 X 3.100 mm (0.961" X 0.122")

1шт.

15

4184929

Piston

(SUB FOR TH109228)

4шт.

16

4286874

Sealing Washer

(SUB FOR AT155701)

1шт.

17

CH11571

Packing

1шт.

18

4184954

Plate

(SUB FOR TH109229)

1шт.

19

19M8168

Screw

M12 X 25

1шт.

24

4285209

Universal Joint

(SUB FOR TH109230)

1шт.

27A

Universal Joint

(SUB TH109232)( AT2021 51 NO LONGER AVAILABLE)

1шт.

27B

4182067

Jointer

(SUB FOR AT202151 ) (SUB FOR TH109232)

1шт.

30

Bushing

(NO LONGER REQUIRED)

1шт.
