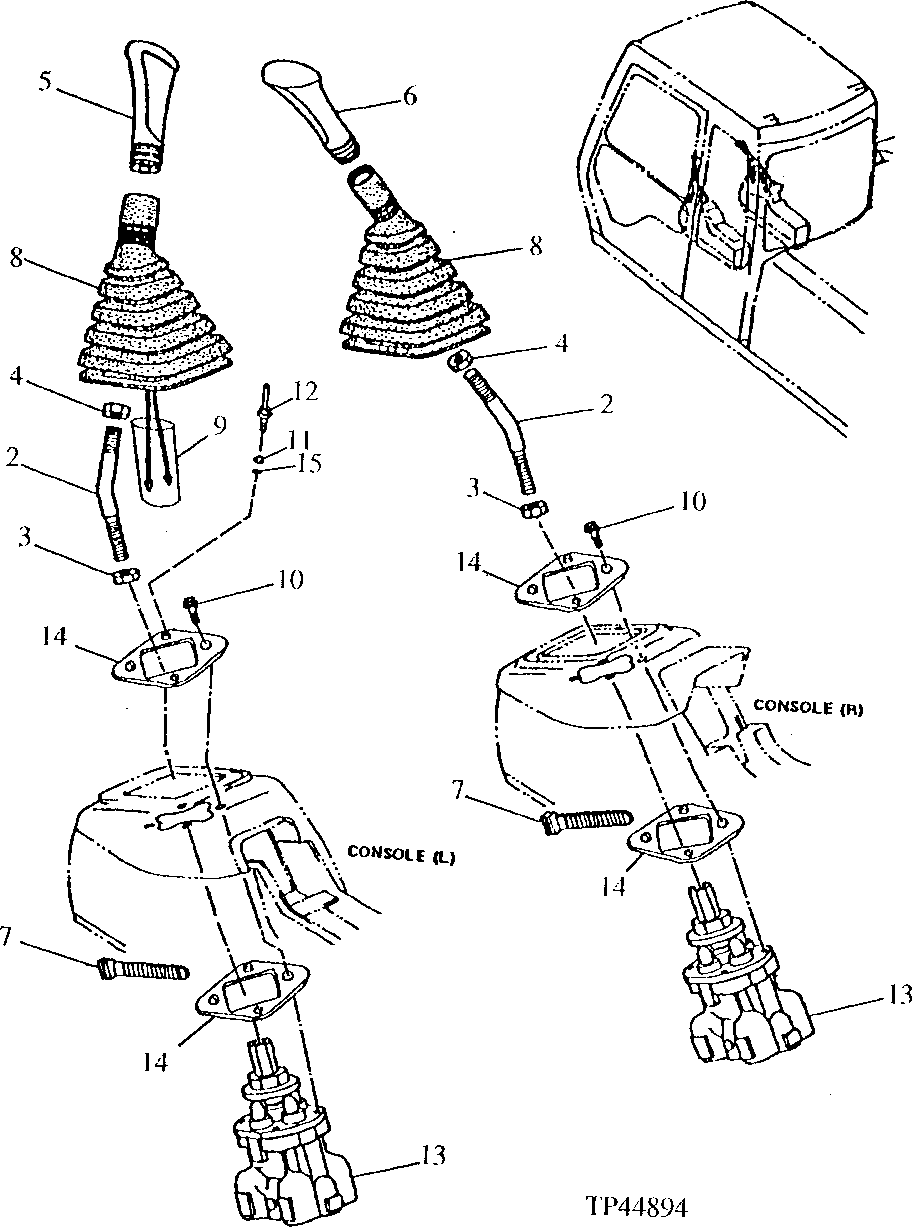

Запчасти John Deere 90E 203 - Control Lever 3315 Controls Linkage

2

4284522

Lever

(SUB FOR AT154379)

2шт.

4334707

Lever

(SUB FOR AT202326)(USE IF AVAILABLE)

2шт.

4334707

Lever

(SUB FOR AT202326 ) (SUB FOR AT177386)

2шт.

3

14M7141

Nut

M14

2шт.

4

14M7275

Nut

M12

2шт.

14M7357

Nut

M12

2шт.

5

Grip

( AT154085 NO LONGER AVAILABLE) (WITH HORN SWITCH) (SUB AT167505, ALONG WITH 34M7086, AND 4342802

1шт.

Grip

(WITH HORN SWITCH) ( AT163880 NO LONGER AVAILABLE) (SUB AT167505, ALONG WITH 34M7086, AND 4342802

1шт.

2033123

Grip

(SUB FOR AT167505)(WITH HORN SWITCH)

1шт.

6

2031487

Grip

(SUB FOR AT154084)

1шт.

7

H77698

Tie Band

(SUB FOR M88199)

ARшт.

8

2038578

Boot

(SUB FOR AT154080, 2030275)

2шт.

9

4300772

Tube

(SUB FOR AT200522)(USE WITH AT154085 GRIP ONLY)

1шт.

Tube

(INCLUDED IN AT163880 GRIP ASSEMBLY)

1шт.

10

19M7881

Screw

M8 X 20

7шт.

19M7407

Cap Screw

M8 X 25

7шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

7шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

7шт.

11

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

12

19M7881

Screw

M8 X 20

1шт.

19M7407

Cap Screw

M8 X 25

1шт.

4342802

Screw

(SUB FOR 4339621 ) (ALSO ORDER 34M7086)

1шт.

34M7086

Spring Pin

3 X 32 mm (SUB FOR 43396 21, ALONG WITH 4342802)

1шт.

4342802

Screw

(SUB FOR AT177372)(SUB FOR 4 339621, ALONG WITH 34M7086)

1шт.

13

AT154525

Hyd Actuated Control Valve

NLA, (ORDER AT189841)

2шт.

AT189841

Hyd/Pilot Cntl Valve Reman

(REMAN FOR AT154525)

2шт.

9134239

Valve

NLA, (ORDER 9134239EX)

1шт.

9134239EX

Hyd/Pilot Cntl Valve Reman

(SUB FOR AT202169, AT189 843) (REMAN FOR 9134239)

1шт.

14

4317301

Spacer

(SUB FOR AT165109)

4шт.

15

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.
