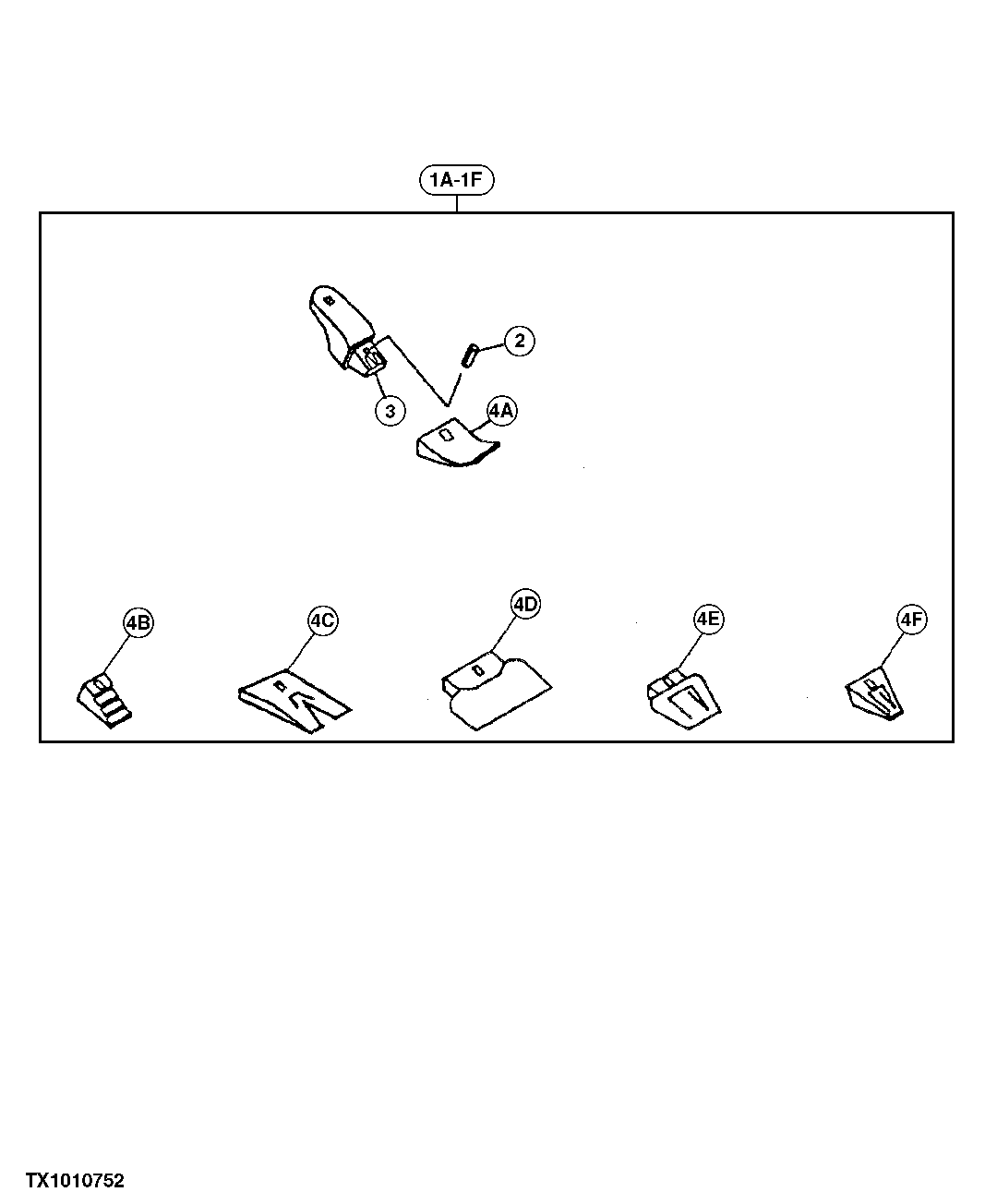

Запчасти John Deere 90E 201 - General Purpose Bucket Tooth Assembly 3302 Bucket With Teeth

1A

Tooth

( AT163528 NLA) (FANGGS 220 TOOTH ASSEMBLY)

1шт.

Tooth

( AT178738 NLA) (FANGGS 290 TOOTH ASSEMBLY)

1шт.

1B

Tooth

( AT163532 NLA) (STAND ARD 220 TOOTH ASSEMBLY)

1шт.

Tooth

( AT178739 NLA) (STAND ARD 290 TOOTH ASSEMBLY)

1шт.

1C

Tooth

( AT163536 NLA) (TWIN T IGER 220 TOOTH ASSEMBLY)

1шт.

Tooth

( AT178741 NLA) (TWIN T IGER 290 TOOTH ASSEMBLY)

1шт.

1D

Tooth

( AT163535 NLA) Flare

1шт.

1E

Tooth

( AT163534 NLA) Abrasion Panel

1шт.

1F

Tooth

( AT163533 NLA) (TIGER 220 TOOTH ASSEMBLY)

1шт.

Tooth

( AT178740 NLA) (TIGER 290 TOOTH ASSEMBLY)

1шт.

1G

Tooth

( AT167184 NLA) Esco Standard Tooth Assembly Not Illustrated

1шт.

1H

Tooth

( AT167186 NLA) Esco Twin Tige r Tooth Assembly Not Illustrated

1шт.

1I

Tooth

( AT167187 NLA) Esco Flare T ooth Assembly Not Illustrated

1шт.

1J

Tooth

( AT167185 NLA) Esco Tiger T ooth Assembly Not Illustrated

1шт.

1K

Tooth

( AT167188 NLA) (CATERPILLAR REPLACEMENT FANGGS TOOTH ASSEMBLY) Not Illustrated

1шт.

1L

Tooth

( AT167189 NLA) Caterpillar Replacement Standard Tooth Assembly Not Illustrated

1шт.

1M

Tooth

( AT167191 NLA) Caterpillar Replacement Twin Tiger Tooth Assembly Not Illustrated

1шт.

1N

Tooth

( AT167190 NLA) Caterpillar Replaceme nt Tiger Tooth Assembly Not Illustrated

1шт.

2

TP160L

Spring Pin

(SUB FOR TP160, THIS APPLICATIO N) (USE W/ 220 TOOTH ASSEMBLIES)

1шт.

TK290

Pin

(USE W/ 290 TOOTH ASSEMBLIES)

1шт.

EX21LKS

Tooth Retainer

(SUB FOR EX21LK) Esco Not Illustra ted On This Page-See Esco Tooth Page

1шт.

T9J2308

Pin Fastener

Caterpillar Not Illustrated

1шт.

3

T109X220

Bucket Tooth Adapter

(USE W/ 220 TOOTH ASSEMBLIES)

1шт.

T127X290

Bucket Tooth Adapter

(USE W/ 290 TOOTH ASSEMBLIES)

1шт.

EX5849-21

Bucket Tooth Adapter

Esco Not Illustrated On Th is Page-See Esco Tooth Page

1шт.

T3G6304

Bucket Tooth Adapter

Caterpillar Not Illustrated

1шт.
