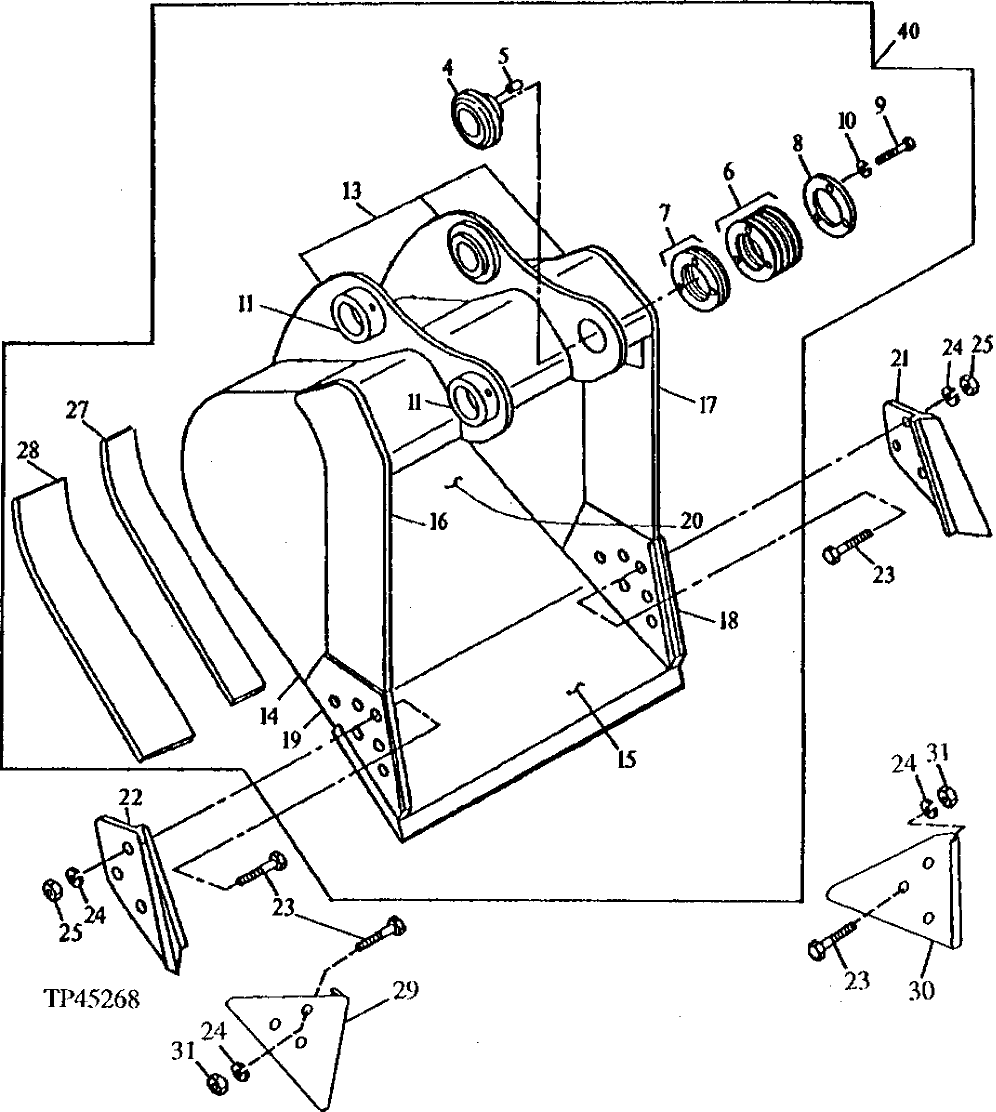

Запчасти John Deere 90E 194 - Heavy Duty Bucket (Also Order Bucket Tooth Assemblies) 3302 Bucket With Teeth

4

3028363

Bushing

(SUB FOR TH100346)

1шт.

5

4179109

Pin

(SUB FOR TH103619)

1шт.

6

Washer

(SUB AT146242) (K2) ( TH100348 NLA)

7шт.

7

Shim

(SUB AT146242) (K2) ( TH100349 NLA)

3шт.

8

Spacer

( TH100347 NLA)

1шт.

9

19M7404

Cap Screw

M14 X 40

3шт.

10

12H317

Lock Washer

9/16"

3шт.

11

TH108649

Bushing

2шт.

13

C610778

Pivot

(F) Bucket Ear Blank Assembly

1шт.

14

607048

Plate

(F) Right and Left Side

2шт.

15

AT131081

Dura-Max Cutting Edge

(CTL)

1шт.

16

304960

Vertical Cutter

(F) Upper Right Side Cutter

1шт.

17

304961

Vertical Cutter

(F) Upper Left Side Cutter

1шт.

18

304968

Vertical Cutter

(F) Left Side Cutter Insert

1шт.

19

304967

Vertical Cutter

(F) Right Side Cutter Insert

1шт.

20

604647

Moldboard

(F) 18in. , Bucket

1шт.

604650

Moldboard

(F) 24in. , Bucket

1шт.

604652

Moldboard

(F) 30in. , Bucket

1шт.

604653

Moldboard

(F) 36in. , Bucket

1шт.

21

Cutting Edge

(K) (SUB AT131080)

1шт.

22

Cutting Edge

(K) (SUB AT131080)

1шт.

23

09H1770

Bolt

(K) 7/8" X 2-1/2" (K3)

6шт.

24

12H245

Lock Washer

(K) 7/8" (K3)

6шт.

25

14H1077

Nut

(K) 7/8"

6шт.

27

304966

Bar

(F) Inner Wear

1шт.

28

306618

Bar

(F) Outer Wear

2шт.

29

Shroud

Wear Shroud (SUB AT167874 (K3))

1шт.

30

Shroud

Wear Shroud (SUB AT167874 (K3))

1шт.

31

14H1044

Nut

7/8" (K3)

6шт.

40

Excavator Bucket

18in. 34yd³ , ( AT163576 NLA) (WHOLE GOODS) Available Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

24in. 50yd³ , (SUB AT332661) ( AT1 63577 NLA) (WHOLE GOODS) Available Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

30in. 64yd³ , (SUB AT332662) ( AT 163578 NLA) (WHOLE GOODS) Availabl e Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

36in. 78yd³ , (SUB AT332663) ( AT 163579 NLA) (WHOLE GOODS) Availabl e Tooth Assemblies On Separate Page

1шт.
