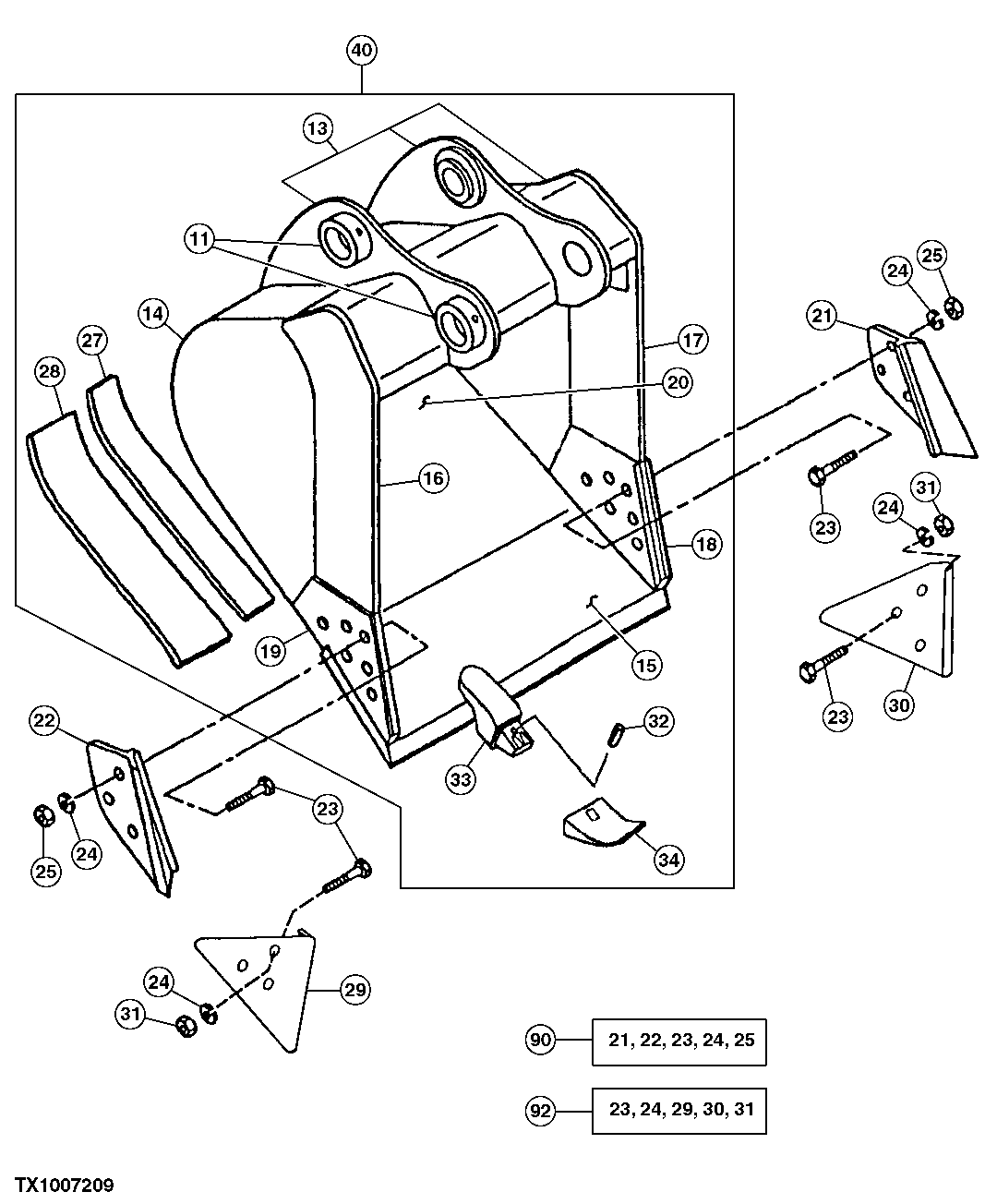

Запчасти John Deere 90E 192 - General Purpose Bucket Assembly 3302 Bucket With Teeth

11

TH108649

Bushing

2шт.

13

C610778

Pivot

(F) Bucket Ear Blank Assembly

1шт.

14

607048

Plate

(F) (RH/LH)

2шт.

304403

Plate

(F) 42in. .79yd³ , (RH/LH) (F OR USE W/ AT163573 BUCKET ONLY)

2шт.

16

304954

Vertical Cutter

(F) (UPPER) (RH)

1шт.

305331

Vertical Cutter

(F) 42in. .79yd³ , (UPPER) (RH) (FOR USE W/ AT163573 BUCKET ONLY)

1шт.

17

304955

Vertical Cutter

(F) (UPPER) (LH)

1шт.

307186

Vertical Cutter

(F) 42in. .79yd³ , (UPPER) (LH) (FOR USE W/ AT163573 BUCKET ONLY)

1шт.

18

304953

Vertical Cutter

(F) (LH) Insert

1шт.

19

304952

Vertical Cutter

(F) (RH) Insert

1шт.

20

604667

Moldboard

(F) 24in. , Bucket

1шт.

604669

Moldboard

(F) 30in. , Bucket

1шт.

604670

Moldboard

(F) 36in. , Bucket

1шт.

604671

Moldboard

(F) 42in. .79yd³ , Bucket

1шт.

604671

Moldboard

(F) 42in. .92yd³ , Bucket

1шт.

21

Cutting Edge

(SUB AT131080)

1шт.

22

Cutting Edge

(SUB AT131080)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

304966

Bar

(F) Inner Wear

1шт.

28

306618

Bar

(F) Outer Wear

2шт.

29

Shroud

(SUB AT167874) Wear

1шт.

30

Shroud

(SUB AT167874) Wear

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TP160L

Spring Pin

5шт.

33

T109X220

Bucket Tooth Adapter

5шт.

34

TF220

Tooth

5шт.

40

Excavator Bucket

24in. .50yd³ , (SUB FOR AT163569) ( A T339023 NLA) ( AT332657 NLA) (4 TEETH)

1шт.

Excavator Bucket

30in. .64yd³ , (SUB FOR AT163570) ( A T339025 NLA) ( AT332658 NLA) (4 TEETH)

1шт.

Excavator Bucket

36in. .78yd³ , (SUB FOR AT163571) ( A T339027 NLA) ( AT332659 NLA) (5 TEETH)

1шт.

Excavator Bucket

42in. .92yd³ , (SUB FOR AT163574) ( A T339029 SUB) ( AT332660 NLA) (5 TEETH)

1шт.

90

End Bit

Side Cutter Kit ( AT131080 NLA) (WHOLEGOO DS) (WOODS-CENTRAL FABRICATORS NO. C20338)

1шт.

92

Kit

Edge Protector Kit ( AT167874 NLA) (WHOLEGO ODS) (WOODS-CENTRAL FABRICATORS NO. C28357)

1шт.
