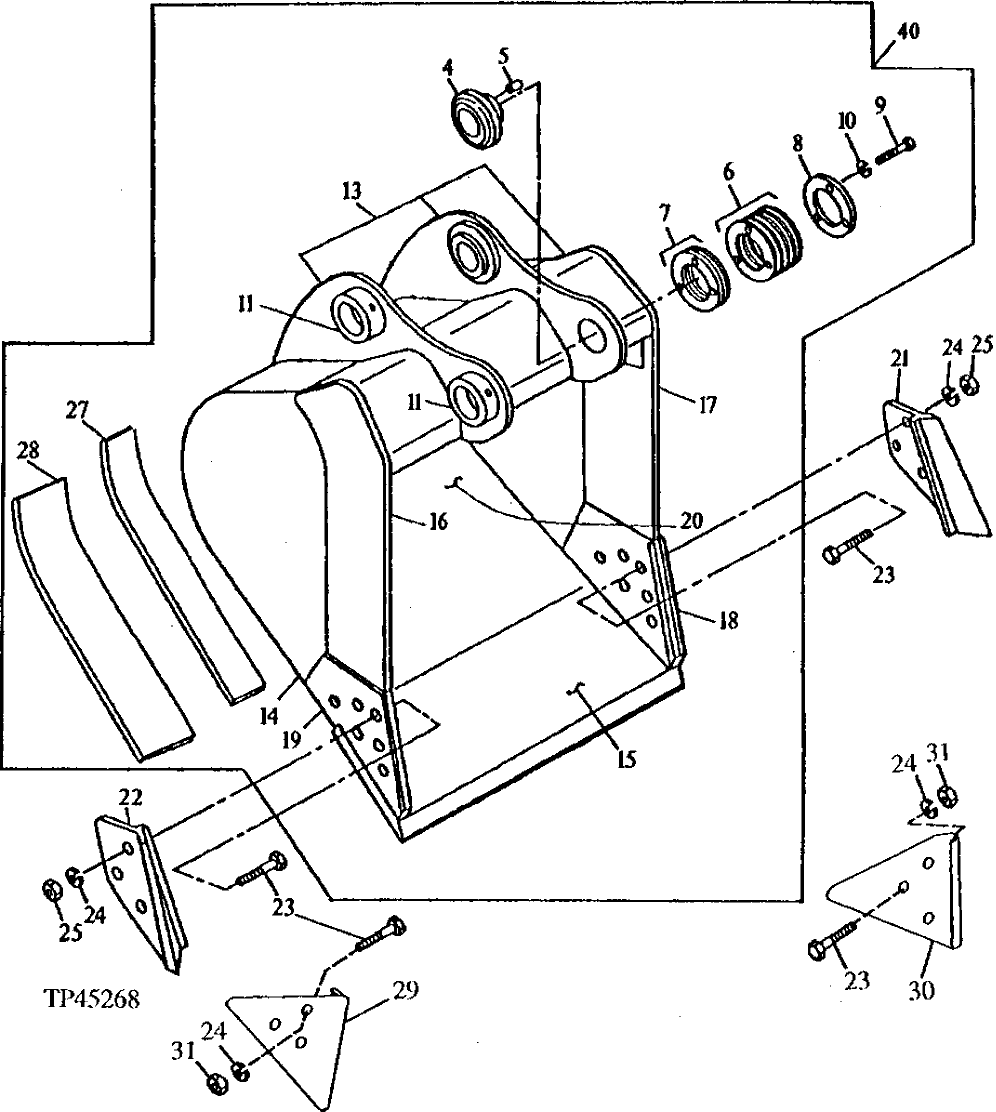

Запчасти John Deere 90E 191 - General Purpose Bucket (Also Order Bucket Tooth Assemblies) 3302 Bucket With Teeth

21

Cutting Edge

(K) (SUB AT131080)

1шт.

22

Cutting Edge

(K) (SUB AT131080)

1шт.

23

09H1770

Bolt

(K) 7/8" X 2-1/2" (K3)

6шт.

24

12H245

Lock Washer

(K) 7/8" (K3)

6шт.

25

14H1077

Nut

(K) 7/8"

6шт.

27

304966

Bar

(F) Inner Wear

1шт.

28

306618

Bar

(F) Outer Wear

2шт.

29

Shroud

Wear Shroud (SUB AT167874 (K3))

1шт.

30

Shroud

Wear Shroud (SUB AT167874 (K3))

1шт.

31

14H1044

Nut

7/8" (K3)

6шт.

40

Excavator Bucket

18in. .34yd³ , (SUB FOR AT131338 OR AT131339) ( AT163568 NLA) Availabl e Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

24in. .50yd³ , (SUB FOR AT131340 OR AT13 1341) (SUB AT332657) ( AT163569 NLA) Ava ilable Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

30in. .64yd³ , (SUB FOR AT131342 OR AT13 1343) (SUB AT332658) ( AT163570 NLA) Ava ilable Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

36in. .78yd³, (SUB FOR AT131344 OR AT13 1345) (SUB AT332659) ( AT163571 NLA) Av ailable Tooth Assemblies On Separate Pag e

1шт.

Excavator Bucket

42in. .79yd³ , ( AT163573 NLA) (SUB FOR AT131346 OR AT131347 (WHOLEGOODS)) Ava ilable Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

42in. .92yd³ , (SUB FOR AT131348 OR AT13 1349) (SUB AT332660) ( AT163574 NLA) Ava ilable Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

48in. 1.06yd³ , (SUB FOR AT131350 O R AT131351) ( AT163575 NLA) Availab le Tooth Assemblies On Separate Page

1шт.
