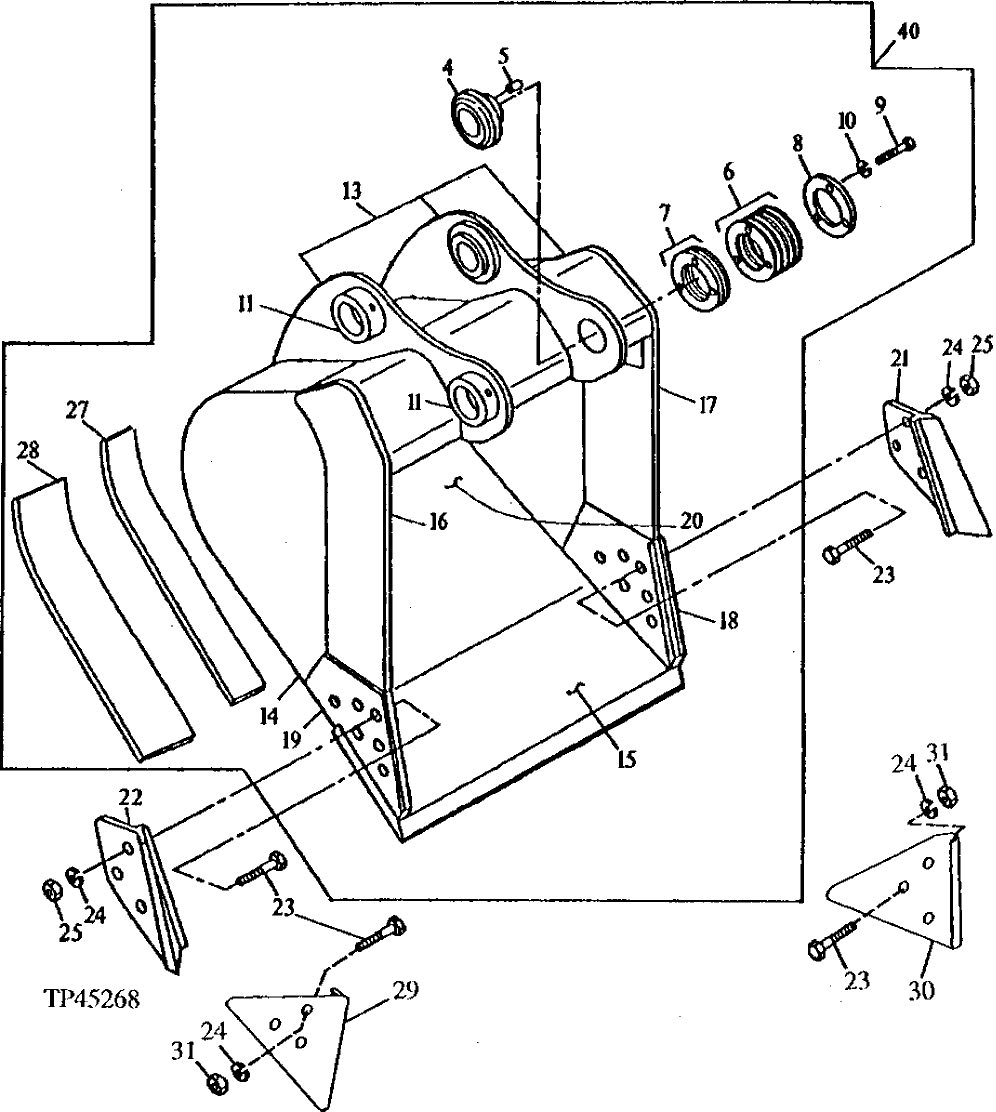

Запчасти John Deere 90E 190 - General Purpose Bucket (Also Order Bucket Tooth Assemblies) 3302 Bucket With Teeth

4

3028363

Bushing

(SUB FOR TH100346)

1шт.

5

4179109

Pin

(SUB FOR TH103619)

1шт.

6

Washer

(SUB AT146242) (K2) ( TH100348 NLA)

7шт.

7

Shim

(SUB AT146242) (K2) ( TH100349 NLA)

3шт.

8

Spacer

( TH100347 NLA)

1шт.

9

19M7404

Cap Screw

M14 X 40

3шт.

10

12H317

Lock Washer

9/16"

3шт.

11

TH108649

Bushing

2шт.

13

C610778

Pivot

(F) Bucket Ear Blank Assembly

1шт.

14

607048

Plate

(F) Right and Left Side

2шт.

304403

Plate

(F) 42in. .79yd³ , Right and Left S ide (FOR USE W/ AT163573 BUCKET ONLY)

2шт.

15

AT131081

Dura-Max Cutting Edge

72in. , (CTL)

1шт.

16

304954

Vertical Cutter

(F) Upper Right Side Cutter

1шт.

305331

Vertical Cutter

(F) 42in. .79yd³ , Upper Right Side C utter (FOR USE W/ AT163573 BUCKET ONLY)

1шт.

17

304955

Vertical Cutter

(F) Upper Left Side Cutter

1шт.

307186

Vertical Cutter

(F) 42in. .79yd³ , Upper Left Side Cu tter (FOR USE W/ AT163573 BUCKET ONLY)

1шт.

18

304953

Vertical Cutter

(F) Left Side Cutter Insert

1шт.

19

304952

Vertical Cutter

(F) Right Side Cutter Insert

1шт.

20

604664

Moldboard

(F) 18in. , Bucket

1шт.

604667

Moldboard

(F) 24in. , Bucket

1шт.

604669

Moldboard

(F) 30in. , Bucket

1шт.

604670

Moldboard

(F) 36in. , Bucket

1шт.

604671

Moldboard

(F) 42in. .79yd³ , Bucket

1шт.

604671

Moldboard

(F) 42in. .92yd³ , Bucket

1шт.

604672

Moldboard

(F) 48in. , Bucket

1шт.
