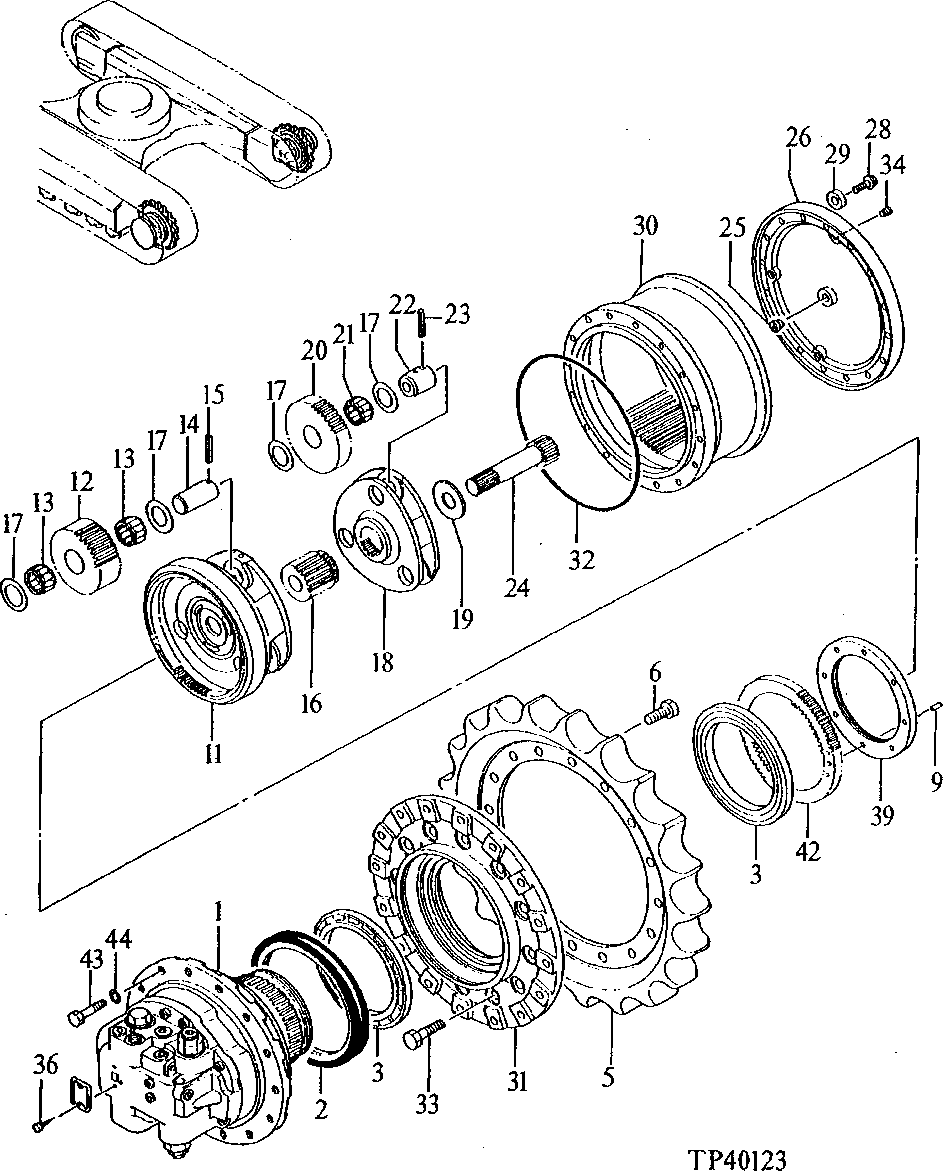

Запчасти John Deere 90E 10 - Travel Motor 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

1

9116384

Hydraulic Motor

(SUB FOR AT158390 OR AT159497)

1шт.

Hydraulic Motor

(REMAN) ( AT217313 OR 9116384EX NLA)

1шт.

9133168

Hydraulic Motor

(SUB FOR AT202486)

1шт.

Hydraulic Motor

(REMAN) ( AT217366 OR 9133168EX NLA)

1шт.

2

AT154151

Seal

1шт.

3

4321887

Tapered Roller Bearing

(SUB FOR AT154158) (SUB FOR AT165353)

2шт.

5

AT316098

Chain Sprocket

(SUB FOR TH108826 OR AT180462)

1шт.

6

19M7488

Cap Screw

M16 X 40

16шт.

9

4148012

Dowel Pin

10 X 19.500 mm (0.394" X 0.768") (SUB FOR TH110463)

1шт.

11

1014516

Planet Pinion Carrier

(SUB FOR AT154047)

1шт.

12

03082618

Gear

(SUB FOR AT154099) Planetary

3шт.

13

4354289

Needle Bearing

(SUB FOR AT154152) (SUB FOR AT215929)

6шт.

14

4245966

Pin

36 X 76 mm (1.417" X 2. 992") (SUB FOR AT154181)

3шт.

15

4144020

Spring Pin

6 X 56 mm (0.236" X 2.2 05") (SUB FOR TH108833)

3шт.

16

3072878

Sun Gear

(SUB FOR AT154089)

1шт.

17

4192982

Plate

(SUB FOR T107736)

12шт.

18

2028797

Planet Pinion Carrier

(SUB FOR AT154068)

1шт.

19

4252721

Washer

34 X 75 X 3.200 mm (1.339" X 2-61 /64" X 0.126") (SUB FOR AT154204)

1шт.

20

3081793

Gear

(SUB FOR AT154098) Planetary

3шт.

21

4354278

Needle Bearing

(SUB FOR AT154203) (SUB FOR AT215928)

3шт.

22

4178203

Bushing

15 X 36 X 41.500 mm (0.591" X 1. 417" X 1.634") (SUB FOR TH108840)

3шт.

23

4192020

Spring Pin

4 X 55 mm (0.157" X 2.1 65") (SUB FOR TH111239)

3шт.

24

2028798

Shaft

(SUB FOR AT154069)

1шт.

25

4631350

Pin

(SUB FOR AT154259 OR 4258916)

1шт.

26

2028800

Cover

(SUB FOR AT154070)

1шт.

28

19M8011

Cap Screw

M12 X 30

12шт.

29

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

12шт.

30

Ring Gear

(SUB AT154058 AND AT154305)

1шт.

1016124

Ring Gear

(SUB FOR AT154058)

1шт.

31

1016125

Drum

(SUB FOR AT154059)

1шт.

32

4269322

O-Ring

285.100 X 3.100 mm (11.224" X 0.122") (SUB FOR AT154305)

1шт.

PM38655

Sealant

(SUB FOR TY6304)

1шт.

33

19M7369

Cap Screw

M16 X 60

16шт.

34

94-2013

Fitting Plug

(SUB FOR TH100648)

3шт.

36

37H99

Screw

0.100" X 1/4"

2шт.

39

3057124

Nut

(SUB FOR AT154144)

1шт.

42

3059034

Hub

(SUB FOR AT154148)

1шт.

43

4272305

Bolt

(SUB FOR AT154319)

28шт.

44

24M7338

Washer

17 X 30 X 3 mm

28шт.
