Запчасти John Deere 90E 186 - Control Valve 2160 Vehicle Hydraulics

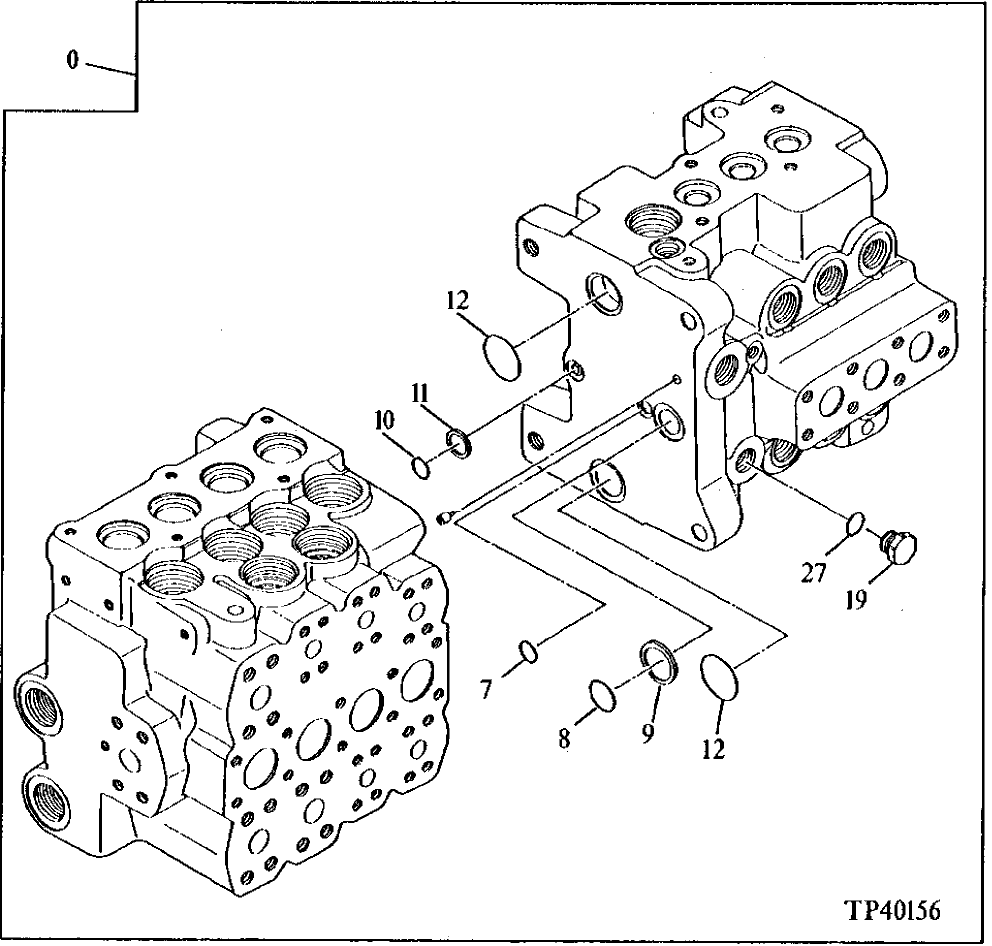

Схема запчастей John Deere 90E - 186 - Control Valve 2160 Vehicle Hydraulics

Артикул

Название

Примечание

Количество

0

4304905

Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE ADDI TIONAL COMPONENTS LISTED ON PREVIOUS P AGES) (SUB FOR AT158386 AND AT186748)

1шт.

4340052

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE ADDI TIONAL COMPONENTS LISTED ON PREVIOUS P AGES) (SUB FOR AT202469 AND AT186094)

1шт.

7

CH17167

O-Ring

1шт.

8

0411901

O-Ring

(SUB FOR AT153977)

1шт.

9

0412501

Back-Up Ring

(SUB FOR AT154045)

1шт.

10

M800650

Packing

1шт.

11

0412502

Back-Up Ring

(SUB FOR AT154046)

1шт.

12

0309402

O-Ring

(SUB FOR TH109141)

2шт.

19

0218608

Drain Plug

(SUB FOR TH110243)

1шт.

27

CH11570

O-Ring

1шт.

Выбрано товаров: 10
