Запчасти John Deere 90E 185 - Control Valve 2160 Vehicle Hydraulics

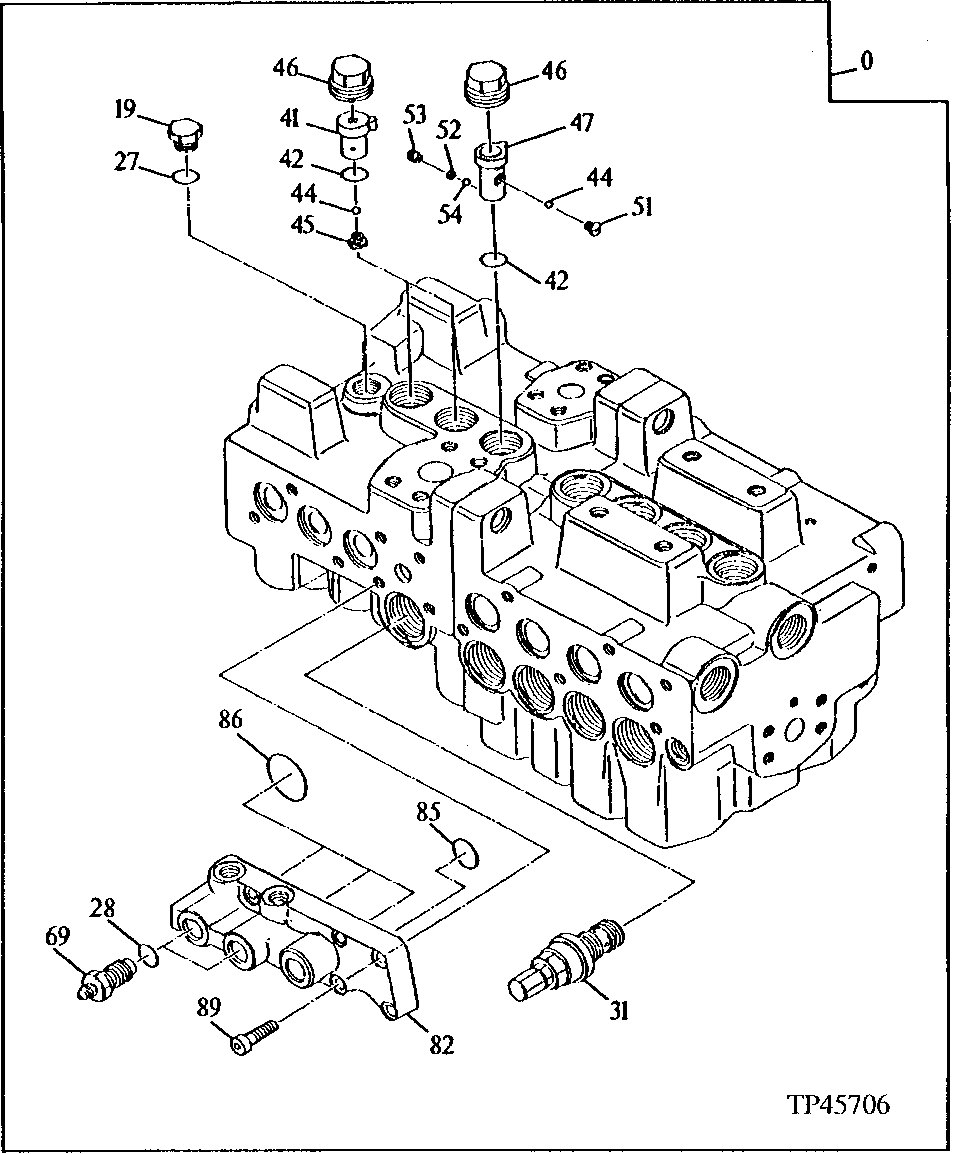

Схема запчастей John Deere 90E - 185 - Control Valve 2160 Vehicle Hydraulics

Артикул

Название

Примечание

Количество

0

4304905

Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE ADDITION AL COMPONENTS LISTED ON PREVIOUS AND FOLLO WING PAGES) (SUB FOR AT158386 AND AT186748 )

1шт.

4340052

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE ADDITION AL COMPONENTS LISTED ON PREVIOUS AND FOLLO WING PAGES) (SUB FOR AT202469 AND AT186094 )

1шт.

19

0218608

Drain Plug

(SUB FOR TH110243)

1шт.

27

CH11570

O-Ring

1шт.

28

CH11570

O-Ring

2шт.

31

0412401

Pressure Relief Valve

(SUB FOR AT154038) Surge

1шт.

0613101

Pressure Relief Valve

(SUB FOR AT203674) Surge

1шт.

41

0412304

Plug

(SUB FOR AT154031)

2шт.

42

T111819

O-Ring

3шт.

44

R63075

Ball

(SUB FOR AT154032)

3шт.

45

0412306

Retainer

(SUB FOR AT154033)

2шт.

46

0412307

Fitting Plug

(SUB FOR AT154034)

3шт.

47

2046991

Fitting

(SUB FOR AT154041 OR 0412404)

1шт.

2046991

Fitting

(SUB FOR AT203676, 0613102 OR 0412404)

1шт.

51

0412405

Seat

(SUB FOR AT154042)

1шт.

0613103

Valve Seat

(SUB FOR AT203677)

1шт.

52

0412406

Filter

(SUB FOR AT154043)

1шт.

53

0412407

Screw

(SUB FOR AT154044)

1шт.

54

0613104

Back-Up Ring

(SUB FOR AT203678)

1шт.

69

0412013

Adapter Fitting

(SUB FOR AT154004)

2шт.

82

0463702

Housing

(SUB FOR AT203675)

1шт.

85

985099

O-Ring

(SUB FOR AT154040) (SUB FOR TH101479)

1шт.

86

0411803

O-Ring

(SUB FOR AT153963)

3шт.

89

19M8735

Screw

M8 X 30 (SUB FOR AT153964)

7шт.

Выбрано товаров: 24
