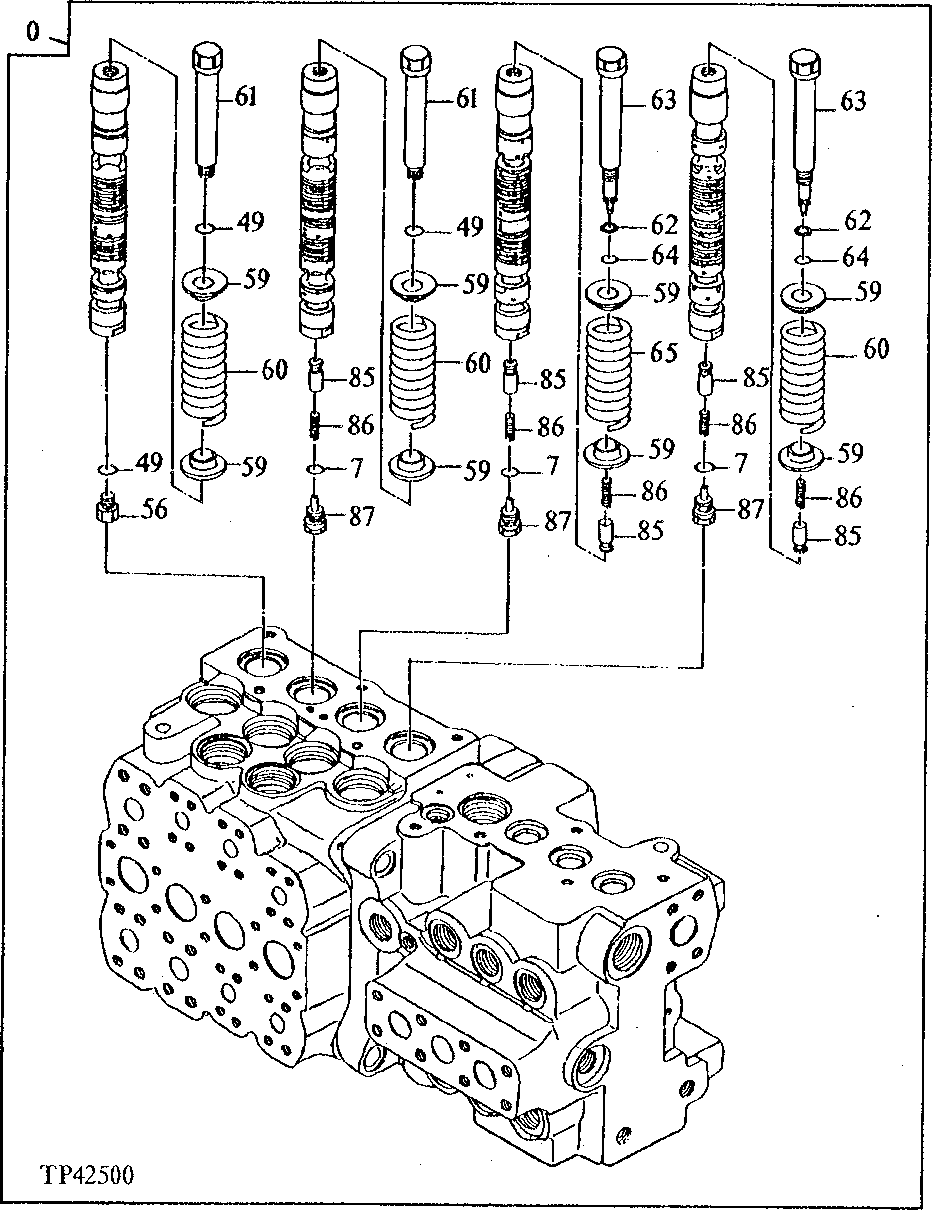

Запчасти John Deere 90E 182 - Control Valve 2160 Vehicle Hydraulics

0

4304905

Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE FOR ADDI TIONAL COMPONENTS SEE PREVIOUS AND FOLLOWI NG PAGES) (SUB FOR AT158386 AND AT186748)

1шт.

4340052

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE ADDITION AL COMPONENTS LISTED ON PREVIOUS AND FOLLO WING PAGES) (SUB FOR AT202469 AND AT186094 )

1шт.

7

CH17167

O-Ring

3шт.

49

4506408

O-Ring

(SUB FOR TH101490)

3шт.

56

0412012

Fitting

(SUB FOR AT154003)

1шт.

59

0412101

Plate

(SUB FOR AT154011)

8шт.

60

0412102

Spring

(SUB FOR AT154012)

3шт.

61

0412103

Bolt

(SUB FOR AT154013)

2шт.

62

0412104

Back-Up Ring

(SUB FOR AT154014)

2шт.

63

0412105

Bolt

(SUB FOR AT154015)

2шт.

64

CH11568

Packing

2шт.

65

4313361

Spring

(SUB FOR AT160501)

1шт.

0412102

Spring

(SUB FOR AT154012)

1шт.

85

0412015

Valve

(SUB FOR AT154006)

5шт.

86

0412016

Spring

(SUB FOR AT154007)

5шт.

87

0412017

Fitting

(SUB FOR AT154008)

3шт.
