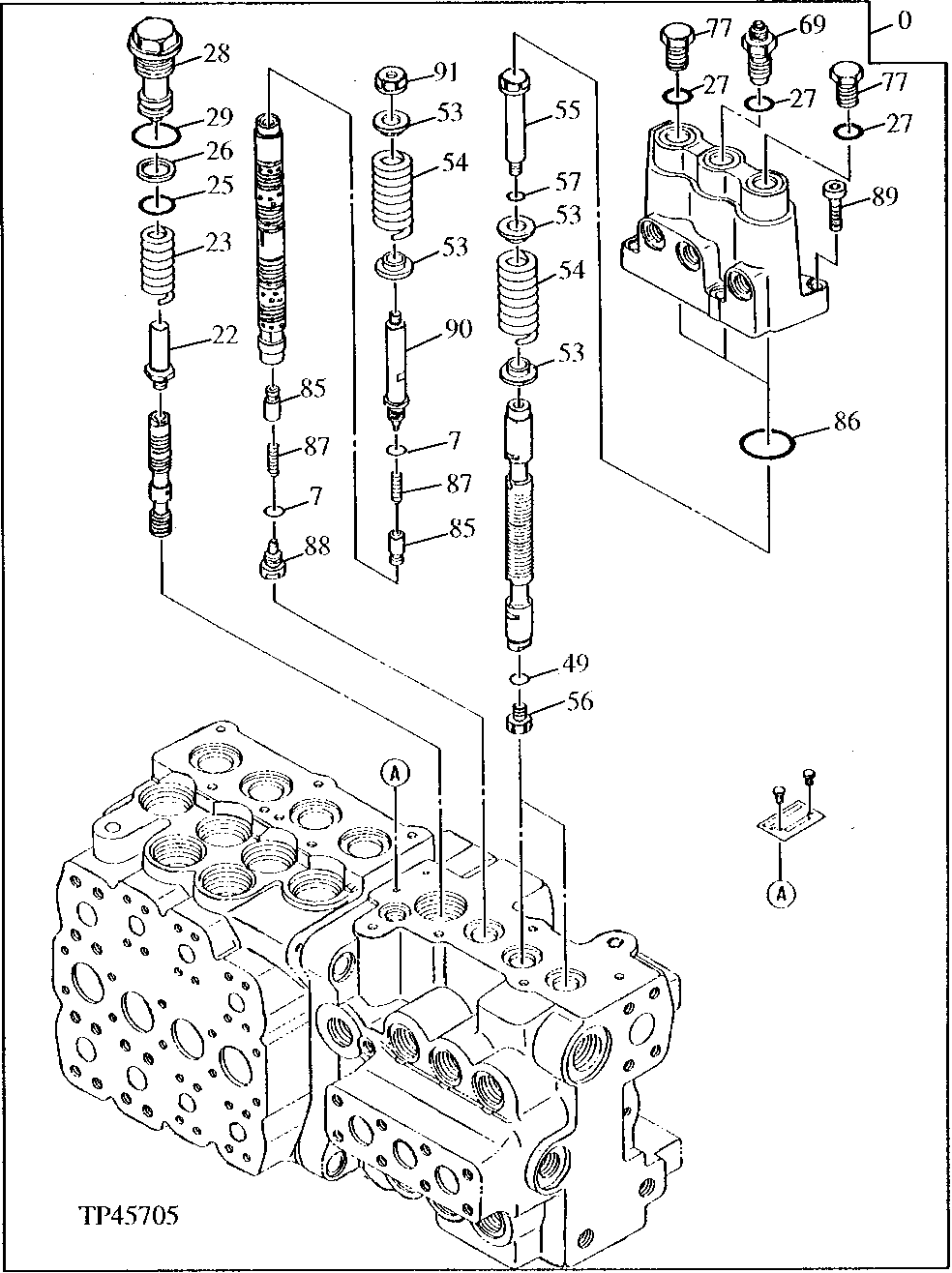

Запчасти John Deere 90E 181 - Control Valve (025000 - ) 2160 Vehicle Hydraulics

0

4340052

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE FOR ADDI TIONAL COMPONENTS SEE PREVIOUS AND FOLLOWI NG PAGES) (SUB FOR AT202469 AND AT186094)

1шт.

7

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

2шт.

22

0412001

Bolt

(SUB FOR AT153992)

1шт.

23

0412002

Spring

(SUB FOR AT153993)

1шт.

25

CH12329

Packing

1шт.

26

4027959

Back-Up Ring

(USE IF AVAILABLE) (SUB FOR AT15399 4) (SUB TH100771) (SUB FOR AT134327)

1шт.

4027959

Back-Up Ring

(SUB FOR TH100771)

1шт.

27

CH11570

O-Ring

3шт.

28

0612701

Fitting

(SUB FOR AT203672)

1шт.

29

CH17886

Packing

1шт.

49

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

2шт.

53

0412009

Plate

(SUB FOR AT154000)

6шт.

54

0412010

Spring

(SUB FOR AT154001)

3шт.

55

0412011

Bolt

(SUB FOR AT154002)

2шт.

56

0412012

Fitting

(SUB FOR AT154003)

2шт.

57

0411802

O-Ring

5.750 X 1.778 mm (0.226" X 0.070") (SUB FOR AT153962)

2шт.

69

0463301

Adapter Fitting

(SUB FOR AT203673)

1шт.

77

0332914

Drain Plug

(SUB FOR TH110315)

2шт.

85

0412015

Valve

(SUB FOR AT154006)

2шт.

86

0411803

O-Ring

35.200 X 2.400 mm (1.386" X 3/32") (SUB FOR AT153963)

3шт.

87

0412016

Spring

(SUB FOR AT154007)

2шт.

88

0412017

Fitting

(SUB FOR AT154008)

1шт.

89

19M8735

Screw

M8 X 30 (SUB FOR AT153964)

4шт.

90

0412018

Bolt

(SUB FOR AT154009)

1шт.

91

0412019

Nut

(SUB FOR AT154010)

1шт.
