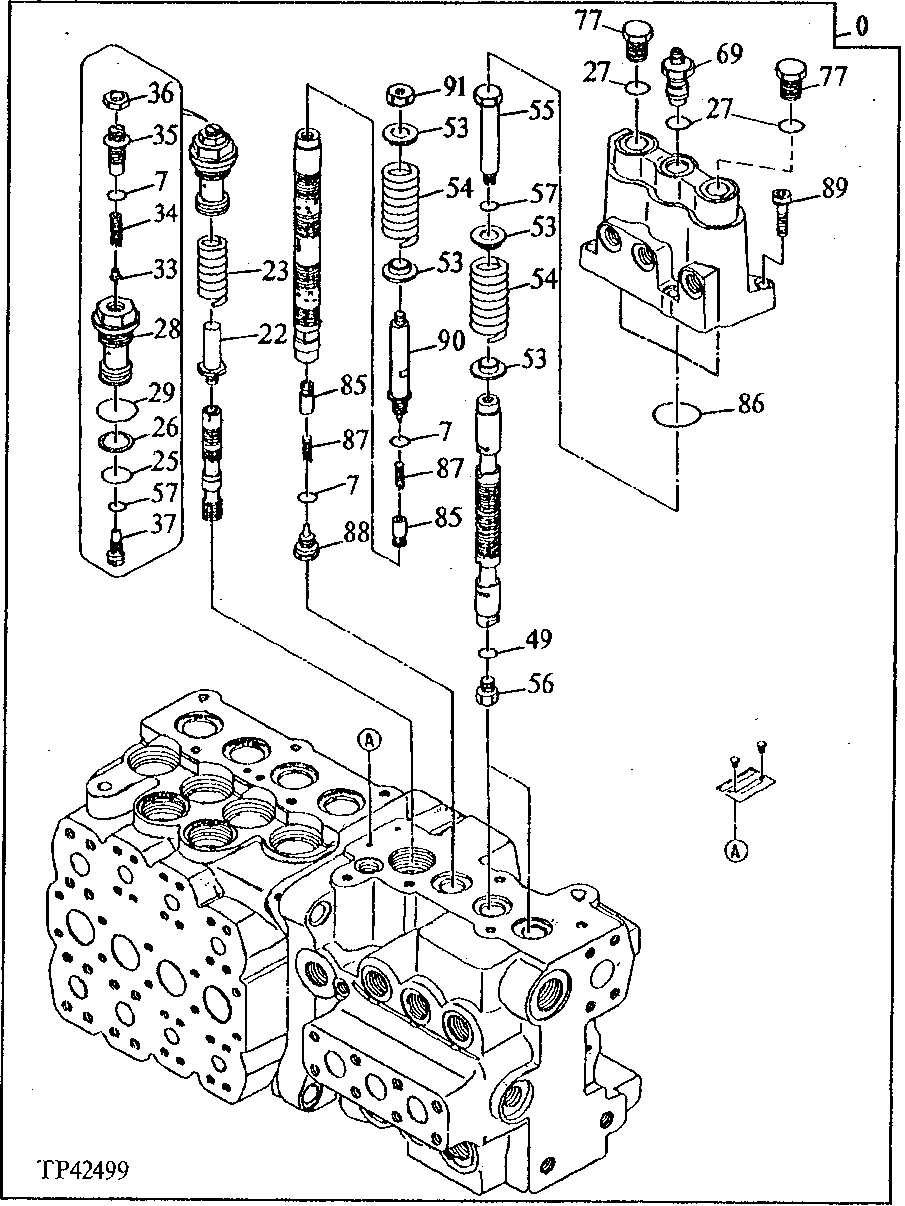

Запчасти John Deere 90E 180 - Control Valve ( - 024999) 2160 Vehicle Hydraulics

0

4304905

Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE FOR ADDI TIONAL COMPONENTS SEE PREVIOUS AND FOLLOWI NG PAGES) (SUB FOR AT158386 AND AT186748)

1шт.

7

CH17167

O-Ring

3шт.

22

0412001

Bolt

(SUB FOR AT153992)

1шт.

23

0412002

Spring

(SUB FOR AT153993)

1шт.

25

CH12329

Packing

1шт.

26

4027959

Back-Up Ring

(USE IF AVAILABLE) (SUB FOR AT15399 4) (SUB TH100771) (SUB FOR AT134327)

1шт.

4027959

Back-Up Ring

(SUB FOR TH100771)

1шт.

27

CH11570

O-Ring

3шт.

28

0412004

Fitting

(SUB FOR AT153995)

1шт.

29

CH17886

Packing

1шт.

33

0412005

Valve

(SUB FOR AT153996)

1шт.

34

0412006

Spring

(SUB FOR AT153997)

1шт.

35

0412007

Screw

(SUB FOR AT153998)

1шт.

36

2046464

Nut

(SUB FOR TH109179 AND 0309439)

1шт.

37

0412008

Seat

(SUB FOR AT153999)

1шт.

49

4506408

O-Ring

(SUB FOR TH101490)

2шт.

53

0412009

Plate

(SUB FOR AT154000)

6шт.

54

0412010

Spring

(SUB FOR AT154001)

3шт.

55

0412011

Bolt

(SUB FOR AT154002)

2шт.

56

0412012

Fitting

(SUB FOR AT154003)

2шт.

57

0411802

O-Ring

(SUB FOR AT153962)

3шт.

69

0463301

Adapter Fitting

(SUB FOR AT203673)

1шт.

77

0332914

Drain Plug

(SUB FOR TH110315)

2шт.

85

0412015

Valve

(SUB FOR AT154006)

2шт.

86

0411803

O-Ring

(SUB FOR AT153963)

3шт.

87

0412016

Spring

(SUB FOR AT154007)

2шт.

88

0412017

Fitting

(SUB FOR AT154008)

1шт.

89

19M8735

Screw

M8 X 30 (SUB FOR AT153964)

4шт.

90

0412018

Bolt

(SUB FOR AT154009)

1шт.

91

0412019

Nut

(SUB FOR AT154010)

1шт.
