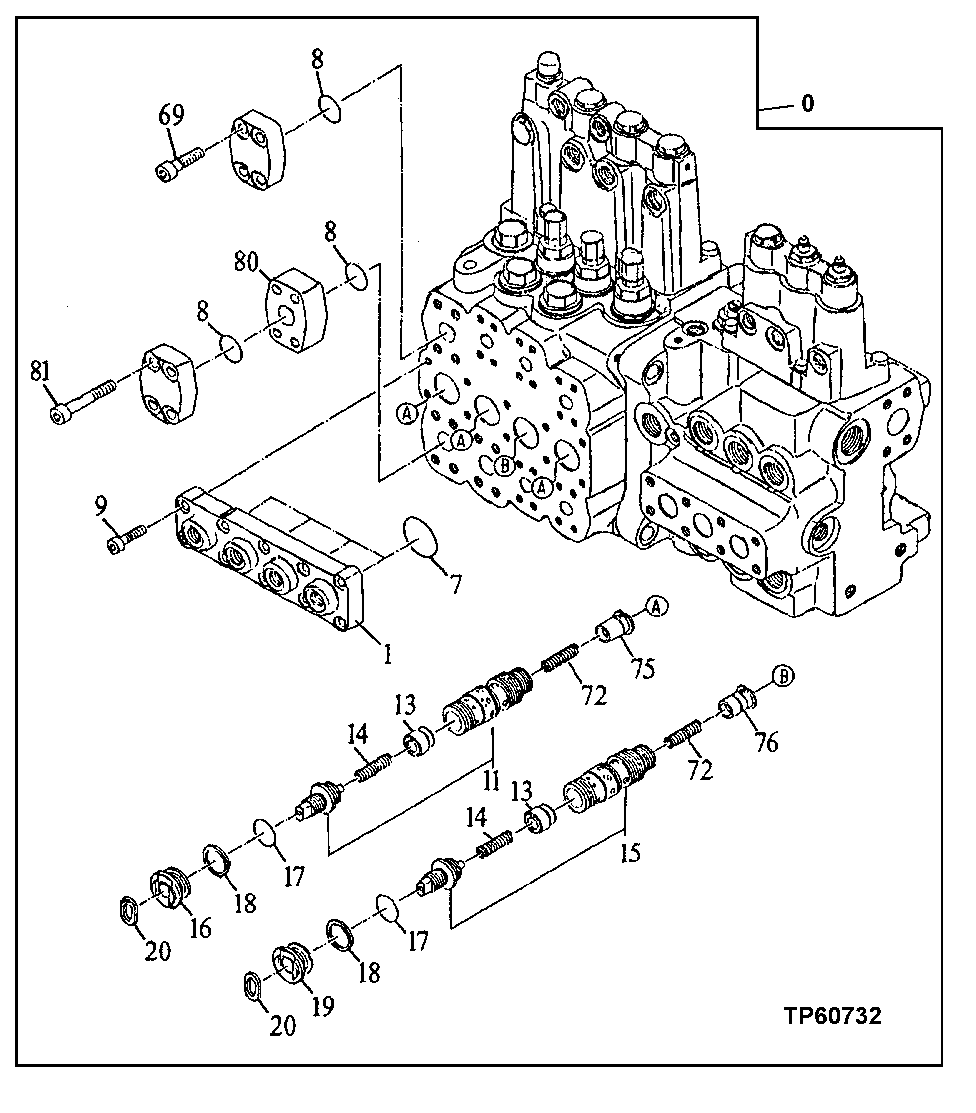

Запчасти John Deere 90E 179 - Control Valve 2160 Vehicle Hydraulics

0

4304905

Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE ADDITION AL CONPONENTS LISTED ON PREVIOUS AND FOLLO WING PAGES) (SUB FOR AT158386 AND AT186748 )

1шт.

4340052

Hyd Actuated Control Valve

(CONTAINS ALL ITEM ON THIS PAGE ADDITIONA L COMPONENTS LISTED ON PREVIOUS AND FOLLOW ING PAGES) (SUB FOR AT202469 AND AT186094)

1шт.

1

0411910

Plate

(SUB FOR AT153986)

1шт.

7

R67590

O-Ring

(SUB FOR AT153978)

4шт.

8

0411901

O-Ring

(SUB FOR AT153977)

3шт.

9

19M8735

Screw

M8 X 30 (SUB FOR AT153964)

10шт.

11

0463201

Flow Control Hyd. Valve

(SUB FOR AT203666)

3шт.

13

0411904

Flow Control Hyd. Valve

(SUB FOR AT153980)

4шт.

0479701

Flow Control Hyd. Valve

(SUB FOR AT203667)

4шт.

14

0411905

Spring

(SUB FOR AT153981)

4шт.

15

0463203

Flow Control Hyd. Valve

(SUB FOR AT203668)

1шт.

16

2048140

Bushing

(SUB FOR AT153985 OR 0411909)

3шт.

0463202

Bushing

(SUB FOR AT203669)

3шт.

17

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

4шт.

18

0411908

Back-Up Ring

(SUB FOR AT153984)

4шт.

19

0411907

Bushing

(SUB FOR AT153983)

1шт.

20

0411809

Gasket

(SUB FOR AT153969)

4шт.

69

19M8447

Screw

M10 X 35 (SUB FOR AT153988)

4шт.

72

0411913

Spring

(SUB FOR AT153989)

4шт.

75

0411915

Flow Control Hyd. Valve

(SUB FOR AT153991)

3шт.

76

0411915

Flow Control Hyd. Valve

(SUB FOR AT153991)

1шт.

80

Plate

(NLA)

1шт.

0634701

Plate

(SUB FOR AT203670)

1шт.

81

19M8441

Screw

M10 X 60

4шт.

0634702

Screw

(SUB FOR AT203671)

4шт.
