Запчасти John Deere 90E 178 - Control Valve 2160 Vehicle Hydraulics

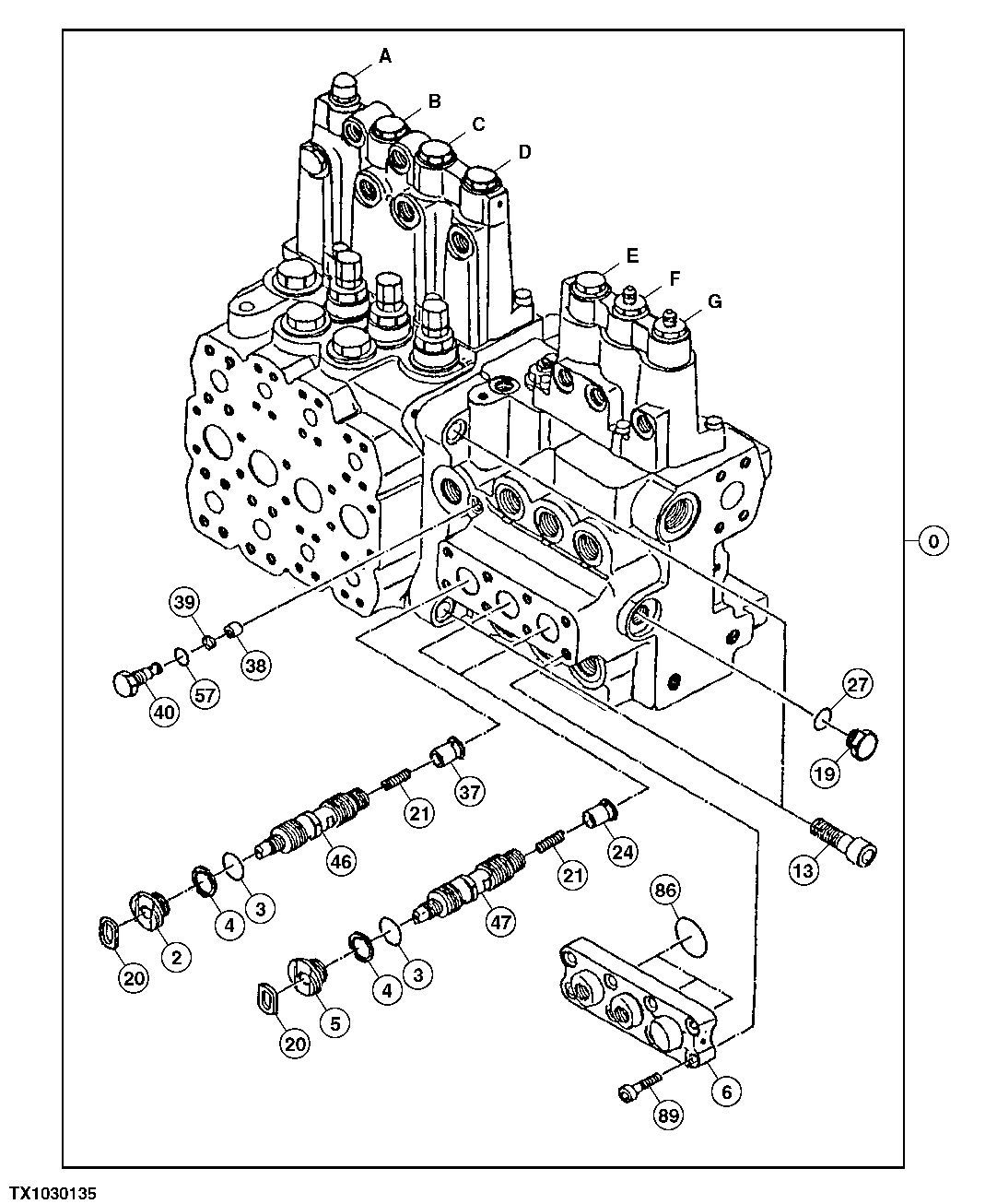

Схема запчастей John Deere 90E - 178 - Control Valve 2160 Vehicle Hydraulics

Артикул

Название

Примечание

Количество

0

4304905

Control Valve

(CONTAINS ALL PARTS ON THIS PAGE ADDI TIONAL COMPONENTS LISTED ON FOLLOWING PAGES) (SUB FOR AT158386 AND AT186748)

1шт.

4340052

Hyd Actuated Control Valve

(CONTAINS ALL PARTS ON THIS PAGE - ADD ITIONAL COMPONENTS LISTED ON FOLLOWING PAGES) (SUB FOR AT202469 AND AT186094)

1шт.

0A

Section

(AUXILARY)

1шт.

0B

Section

Arm

1шт.

0C

Section

Boom

1шт.

0D

Section

Bucket

1шт.

0E

Section

Swing

1шт.

0F

Section

Right Propel

1шт.

0G

Section

Left Propel

1шт.

2

0411806

Bushing

(SUB FOR AT153966)

1шт.

3

0411807

O-Ring

(SUB FOR AT153967)

3шт.

4

0411808

Back-Up Ring

(SUB FOR AT153968)

3шт.

5

0463102

Bushing

(SUB FOR AT203664)

2шт.

6

0411810

Plate

(SUB FOR AT153970)

1шт.

13

19M8734

Screw

M14 X 45 (SUB FOR AT153961)

2шт.

19

0218608

Drain Plug

(SUB FOR TH110243)

1шт.

20

0411809

Gasket

(SUB FOR AT153969)

3шт.

21

0411811

Spring

(SUB FOR AT153971)

3шт.

24

0411813

Flow Control Hyd. Valve

(SUB FOR AT153973)

2шт.

0612501

Flow Control Hyd. Valve

(SUB FOR AT203665)

2шт.

27

CH11570

O-Ring

1шт.

37

0411813

Flow Control Hyd. Valve

(SUB FOR AT153973)

1шт.

0612501

Flow Control Hyd. Valve

(SUB FOR AT203665)

1шт.

38

0411814

Bushing

(SUB FOR AT153974)

1шт.

39

0411815

Filter

(SUB FOR AT153975)

1шт.

40

0411816

Fitting

(SUB FOR AT153976)

1шт.

46

9203490

Valve

(SUB FOR 0411805)

1шт.

47

0463101

Valve

(SUB FOR AT203663)

2шт.

57

0411802

O-Ring

(SUB FOR AT153962)

1шт.

86

0411803

O-Ring

(SUB FOR AT153963)

3шт.

89

19M8735

Screw

M8 X 30 (SUB FOR AT153964)

8шт.

Выбрано товаров: 31
