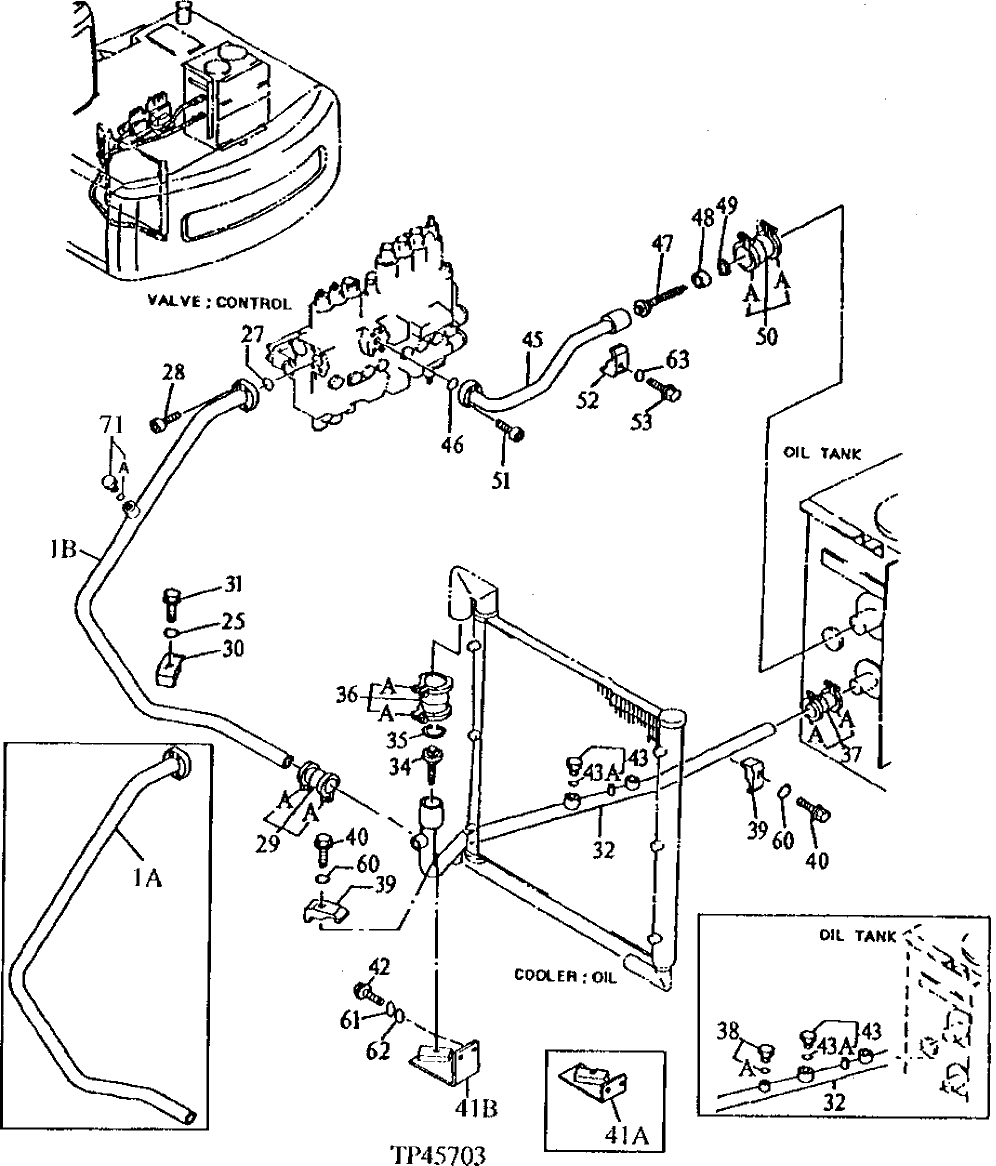

Запчасти John Deere 90E 176 - Oil Cooler Lines 2160 Vehicle Hydraulics

1

7025011

Line

SUB FOR AT154461

1шт.

7029505

Line

SUB FOR AT203625

1шт.

1A

7025011

Line

SUB FOR AT154461

1шт.

1B

7029505

Line

SUB FOR AT203625

1шт.

25

12H301

Lock Washer

1/2"

1шт.

27

AT264324

O-Ring

SUB FOR TH100044, USE IF AVAILABLE

1шт.

AT264324

O-Ring

SUB FOR T32587, TH100044

1шт.

28

19M8447

Screw

M10 X 35

4шт.

29

4071213

Coupling

SUB FOR TH101923 AND FXV00000005

1шт.

29A

Coupling

SUB FOR TH106965 AND 4196258

2шт.

30

4190127

Clamp

SUB FOR TH108313

1шт.

31

19M8348

Cap Screw

M12 X 65

1шт.

32

7025010

Line

SUB FOR AT154475

1шт.

34

4276584

Flow Control Hyd. Valve

SUB FOR AT154331

1шт.

35

40M7225

Snap Ring

1шт.

36

4067834

Coupling

SUB FOR TH102945

1шт.

36A

4196260

Seal

SUB FOR TH106967

2шт.

37

4071213

Coupling

SUB FOR TH101923 AND FXV00000005

1шт.

37A

Coupling

TH106965 AND 4196258 NLA

2шт.

38

AT318013

Drain Plug

SUB FOR 4093624, SUB FOR TH103949, SUB FOR TH102536

1шт.

38A

M800650

Packing

1шт.

39

4190127

Clamp

SUB FOR TH108313

2шт.

40

19M8348

Cap Screw

M12 X 65

2шт.

41A

8052223

Bracket

SUB FOR AT154494

1шт.

41B

8049223

Bracket

SUB FOR AT203626

1шт.

42

19M7662

Cap Screw

M10 X 30

2шт.

43

4174542

Drain Plug

SUB FOR TH110478

1шт.

43A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

45

8047335

Oil Line

SUB FOR AT154478 Return

1шт.

46

A811030

O-Ring

SUB FOR TH101300

1шт.

47

4266481

Flow Control Hyd. Valve

SUB FOR AT154301

1шт.

48

4256203

Bushing

SUB FOR AT154234

1шт.

49

40M7123

Snap Ring

1шт.

50

4069801

Coupling

SUB FOR TH101915 AND 4712341

1шт.

50A

4196259

Seal

SUB FOR TH106966

2шт.

51

19M8447

Screw

M10 X 35

4шт.

52

4190126

Clamp

SUB FOR TH109830

1шт.

53

19M7362

Cap Screw

M12 X 55

1шт.

60

12H301

Lock Washer

1/2"

2шт.

61

12M7066

Lock Washer

10 mm

2шт.

62

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

63

12H301

Lock Washer

1/2"

1шт.

71

4174542

Drain Plug

SUB FOR TH110478

1шт.

71A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.
