Запчасти John Deere 90E 175 - Oil Cooler Lines 2160 Vehicle Hydraulics

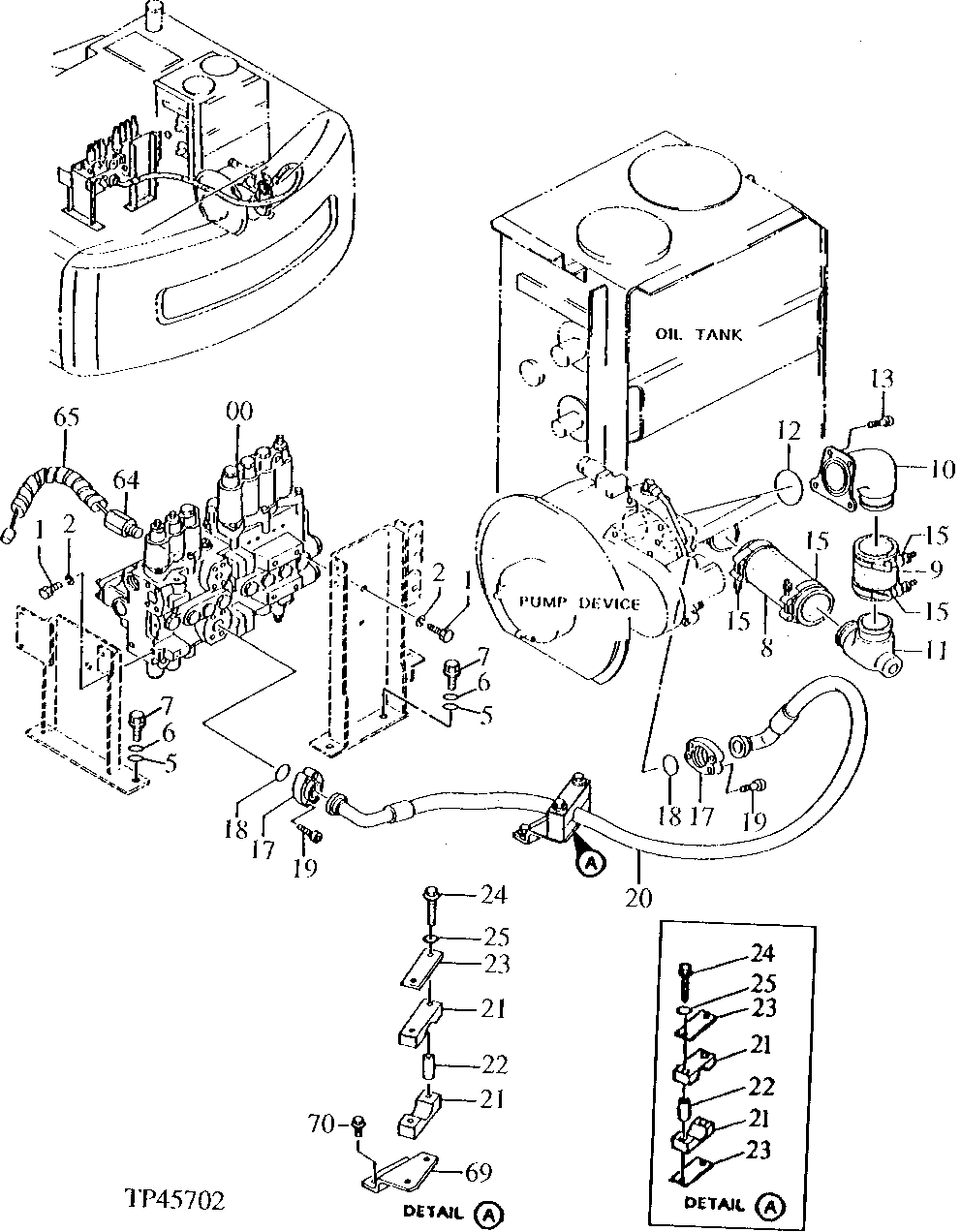

Схема запчастей John Deere 90E - 175 - Oil Cooler Lines 2160 Vehicle Hydraulics

Артикул

Название

Примечание

Количество

0

4304905

Control Valve

(SUB FOR AT158386 AND AT186748)

1шт.

4340052

Hyd Actuated Control Valve

(SUB FOR AT202469 AND AT186094)

1шт.

1

19M7877

Cap Screw

M14 X 30

6шт.

2

12H317

Lock Washer

9/16"

6шт.

5

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

6

24M7345

Washer

13.500 X 24 X 2.500 mm

4шт.

7

19M7493

Cap Screw

M12 X 40

4шт.

8

4277495

Hose

(SUB FOR AT154346)

1шт.

9

4284953

Hose

(SUB FOR AT154347)

1шт.

10

3056541

Line

(SUB FOR AT154143)

1шт.

3066335

Line

(SUB FOR AT202424)

1шт.

11

3056540

Line

(SUB FOR AT154142)

1шт.

3073276

Line

(SUB FOR AT203624) (SUB FOR AT176387)

1шт.

12

TH105684

O-Ring

1шт.

13

M341232

Bolt

(SUB FOR TH100046)

4шт.

15

AT50923

Hose Clamp

(SUB FOR AT160583)

4шт.

17

4085560

Flange Fitting

(SUB FOR TH101960)

4шт.

18

T78313

O-Ring

2шт.

19

19M8341

Screw

M12 X 45

8шт.

20

AT154972

Hydraulic Hose

1шт.

AT202456

Hydraulic Hose

1шт.

21

4266480

Clamp

(SUB FOR AT154300)

2шт.

22

4266482

Spacer

(SUB FOR AT154302)

2шт.

23

4276321

Strap

(SUB FOR AT154327)

2шт.

Plate

(SUB TH109533) ( AT202464 NLA)

1шт.

4195494

Plate

(SUB FOR TH109533)

1шт.

24

19M8183

Cap Screw

M10 X 90

2шт.

Cap Screw

(NLA)

2шт.

25

12M7066

Lock Washer

10 mm

2шт.

Lock Washer

2шт.

64

4339559

Sensor

(SUB FOR AT154530) (DIFFERENTIAL PRESSURE)

1шт.

65

Hose Guard

(NLA)

1шт.

69

8059308

Bracket

(SUB FOR AT202479)

1шт.

70

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

Выбрано товаров: 35
