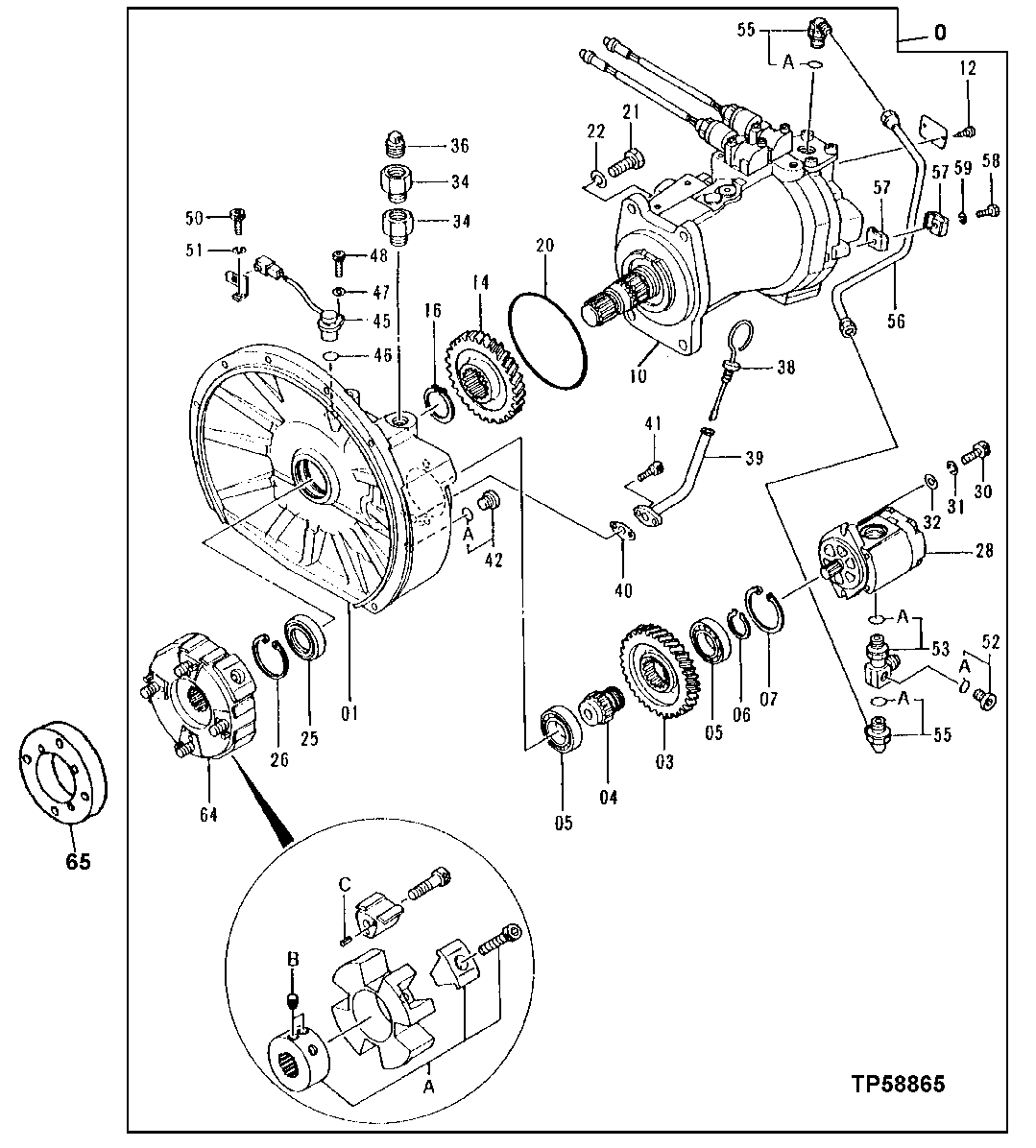

Запчасти John Deere 90E 168 - Main Hydraulic Pump (025000 - ) 2160 Vehicle Hydraulics

0

9133005

Pump

1шт.

AT202484

Pump

NLA

1шт.

9133005EX

Hydraulic Pump Reman

REMAN FOR AT202484 OR 9 133005, SUB FOR AT217365

1шт.

1

Gear Case

SUB FOR AT202405, 1018997 NLA

1шт.

T22874

Bolt

To Flywheel Housing

5шт.

19H3483

Cap Screw

3/8" X 1-1/8" To Flywheel Housing

3шт.

12H304

Lock Washer

3/8" To Flywheel Housing

8шт.

3

3063840

Gear

SUB FOR AT202414

1шт.

4

3055594

Shaft

SUB FOR AT202412

1шт.

5

JD8514

Ball Bearing

2шт.

6

962002

Snap Ring

SUB FOR TH100483

1шт.

7

40M7090

Snap Ring

1шт.

10

Hydraulic Pump

SEE SEPARATE PAGE FOR DETAIL OF PUMP

1шт.

12

37H99

Screw

0.100" X 1/4"

2шт.

14

3064810

Gear

SUB FOR AT202421

1шт.

16

AT152406

Snap Ring

SUB FOR AT203647, 4274552

1шт.

20

4314092

O-Ring

SUB FOR AT202448

1шт.

21

19M7489

Cap Screw

M16 X 45 SUB FOR 19M7396

4шт.

22

12H294

Lock Washer

5/8"

4шт.

25

4310055

Seal

SUB FOR AT202443

1шт.

26

40M7090

Snap Ring

1шт.

28

9218005

Pump

Components On Seperate Page , SUB FOR AT202122, 4276918

1шт.

A811085

O-Ring

1шт.

30

19M8337

Screw

M10 X 30

2шт.

31

12M7135

Lock Washer

10 mm SUB FOR 12M6791

2шт.

32

4114402

Washer

10.500 X 22 X 3.200 mm (0.413" X 0.866" X 0.126") SUB FOR TH102181

2шт.

34

4317633

Adapter Fitting

SUB FOR AT202452

2шт.

36

4234782

Plug

SUB FOR AT200990

1шт.

38

4340855

Level Gauge

SUB FOR TH112088, THIS APP LICATION, SUB FOR AT204835

1шт.

39

9736788

Pipe

SUB FOR AT202488

1шт.

40

9742779

Gasket

SUB FOR TH112091, SUB FOR AT214401

1шт.

41

19M7932

Cap Screw

M8 X 16

2шт.

42

9134111

Fitting

SUB FOR AT203648

1шт.

42A

CH11570

O-Ring

1шт.

45

4265372

Sensor

SUB FOR AT154297

1шт.

46

4306888

O-Ring

18.771 X 1.778 mm (0.739" X 0.070") SUB FOR AT154310

1шт.

47

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

48

19M8553

Screw

M6 X 16

1шт.

50

0209423

Bolt

SUB FOR TH100738

1шт.

51

12M7133

Lock Washer

6 mm SUB FOR 12M7129

1шт.

52

9134110

Fitting

SUB FOR AT203649

1шт.

52A

M800650

Packing

1шт.

53

4278547

Adapter Fitting

SUB FOR AT154349

1шт.

53A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

55

4293950

Fitting

USE AT160584 UNTIL EXHAUSTED, SUB FOR AT160584 OR TH109468

2шт.

55A

M800650

Packing

1шт.

56

3064811

Pipe

SUB FOR AT202422

1шт.

57

9736515

Clamp

SUB FOR AT154545

2шт.

58

19M7513

Cap Screw

M8 X 30 SUB FOR 19M7288

1шт.

59

12M7056

Lock Washer

8 mm SUB FOR 12M7065

1шт.

64

4310056

Splined Coupling

SUB FOR AT202444

1шт.

64A

4340960

Hub

SUB FOR AT203650

1шт.

64B

4702173

Set Screw

SUB FOR AT203651 OR 4334899

2шт.

64C

34M7117

Spring Pin

5 X 10 mm

4шт.

65

Spacer

FOR DETAIL SEE ENGINE MOUNTS PAGE

1шт.
