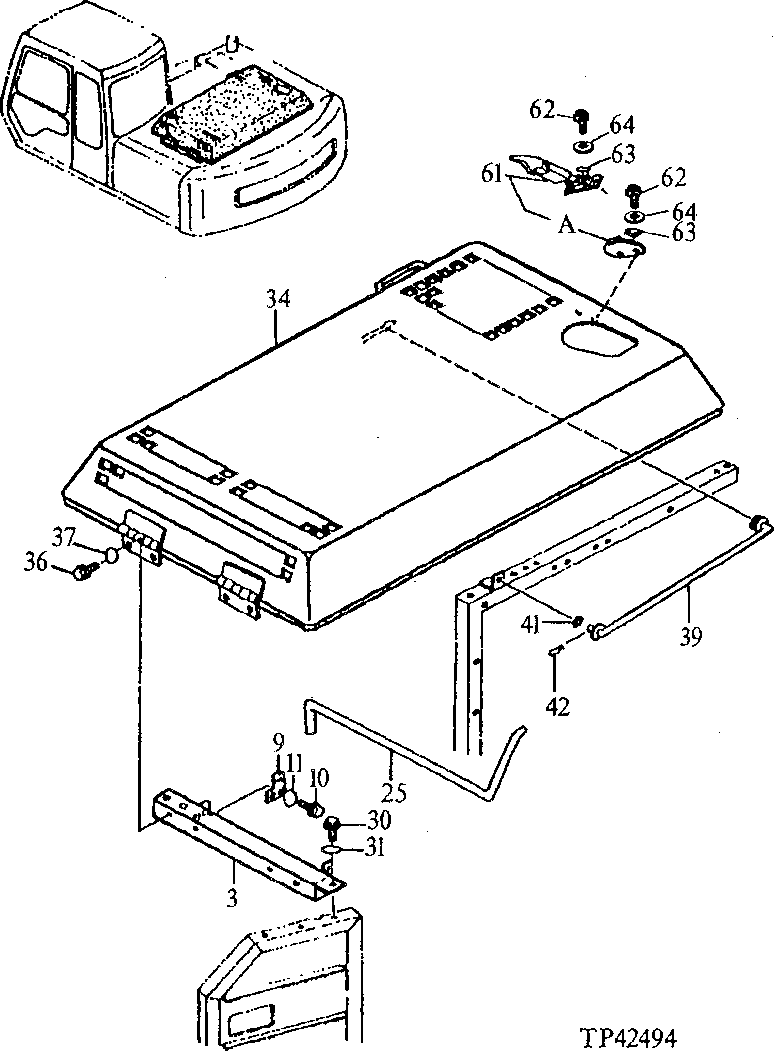

Запчасти John Deere 90E 156 - Covers 1910 Hood Or Engine Enclosure

3

8052812

Support

(SUB FOR AT155169)

1шт.

9

4285201

Guide

(SUB FOR AT154974)

1шт.

10

19M7402

Cap Screw

M10 X 25

2шт.

11

12M7066

Lock Washer

10 mm

2шт.

25

3058907

Bar

(SUB FOR AT154906)

1шт.

30

19M7402

Cap Screw

M10 X 25

2шт.

31

12M7066

Lock Washer

10 mm

2шт.

34

5003407

Cover

(SUB FOR AT155147)

1шт.

36

19M7402

Cap Screw

M10 X 25

4шт.

37

12M7066

Lock Washer

10 mm

4шт.

39

9738839

Bar

(SUB FOR AT155191)

1шт.

41

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

42

R50647

Spring Locking Pin

1шт.

61

4361455

Catch

(SUB FOR TH108769)

1шт.

AT194969

Key

(SUB FOR AT147803) (H800) Not Illustrated

1шт.

61A

3021131

Anchor

(SUB FOR TH102247)

1шт.

62

19M7881

Screw

M8 X 20

4шт.

63

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

64

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.
