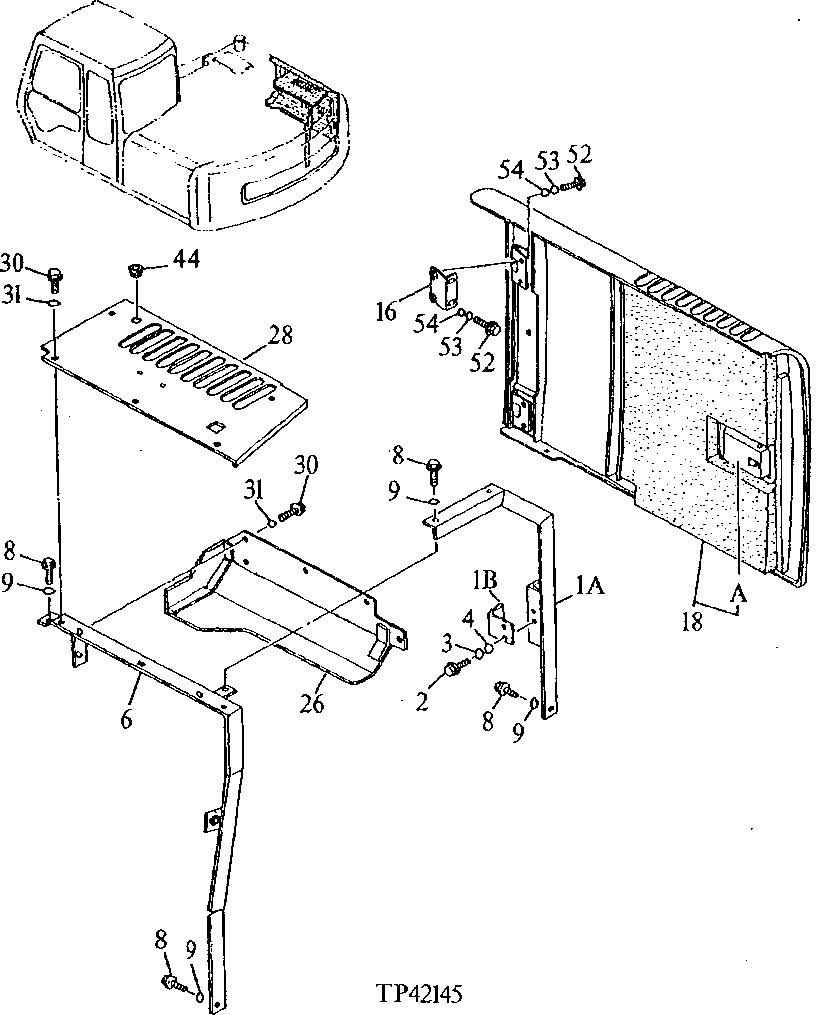

Запчасти John Deere 90E 155 - Covers 1910 Hood Or Engine Enclosure

1A

7024986

Support

(SUB FOR AT155155)

1шт.

1B

4257087

Stop

(SUB FOR AT154930)

1шт.

2

19M7662

Cap Screw

M10 X 30

2шт.

3

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

4

24M7346

Washer

11 X 20 X 2 mm

2шт.

6

7025004

Support

(SUB FOR AT155157)

1шт.

8

19M7402

Cap Screw

M10 X 25

4шт.

9

12M7066

Lock Washer

10 mm

4шт.

16

8048338

Bracket

(SUB FOR AT155161)

2шт.

18

5003719

Door

(SUB FOR AT158399)

1шт.

18A

Lock

(SUB AT214010) ( TH110126 NLA)

1шт.

26

7024976

Cover

(SUB FOR AT155153)

1шт.

28

7025003

Cover

(SUB FOR AT155156)

1шт.

30

19M7402

Cap Screw

M10 X 25

10шт.

31

12M7066

Lock Washer

10 mm

10шт.

44

94-2806

Grommet

(SUB FOR AT121758)

1шт.

52

19M7402

Cap Screw

M10 X 25

8шт.

53

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

8шт.

54

24M7346

Washer

11 X 20 X 2 mm

8шт.
