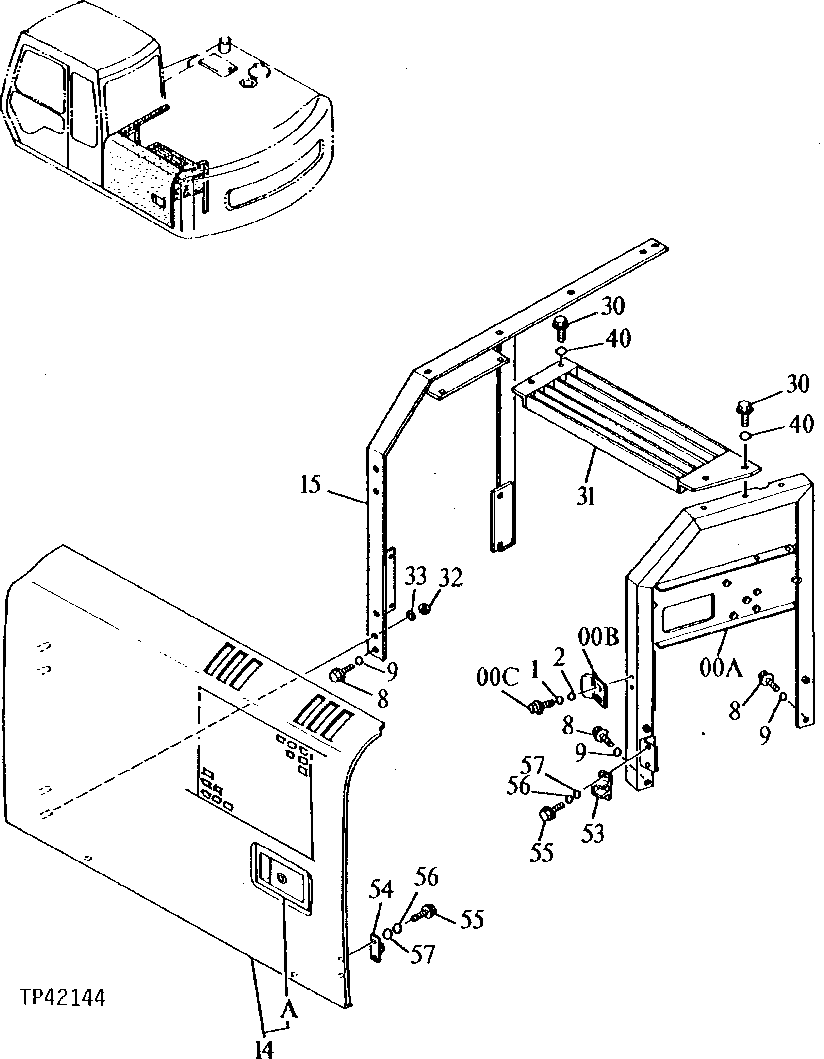

Запчасти John Deere 90E 154 - Covers 1910 Hood Or Engine Enclosure

0A

7024978

Support

(SUB FOR AT155154)

1шт.

0B

4259298

Stop

(SUB FOR AT154936)

1шт.

0C

19M7662

Cap Screw

M10 X 30

2шт.

1

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

2

24M7346

Washer

11 X 20 X 2 mm

2шт.

8

19M7402

Cap Screw

M10 X 25

3шт.

9

12M7066

Lock Washer

10 mm

3шт.

14

5003720

Door

(SUB FOR AT155146)

1шт.

14A

Lock

(SUB AT214010) ( TH110898 NLA)

1шт.

15

7025267

Support

(SUB FOR AT155158)

1шт.

30

19M7402

Cap Screw

M10 X 25

4шт.

31

8052736

Cover

(SUB FOR AT155168)

1шт.

32

14M7274

Nut

M10

4шт.

33

12M7066

Lock Washer

10 mm

4шт.

40

12M7066

Lock Washer

10 mm

4шт.

53

4175253

Bracket

(SUB FOR AT318015, AT154915)

1шт.

54

4175254

Stop

(SUB FOR AT154916)

1шт.

55

19M7923

Cap Screw

M6 X 12

4шт.

56

12M7006

Lock Washer

6 mm

4шт.

57

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.
