Запчасти John Deere 90E 152 - Covers 1910 Hood Or Engine Enclosure

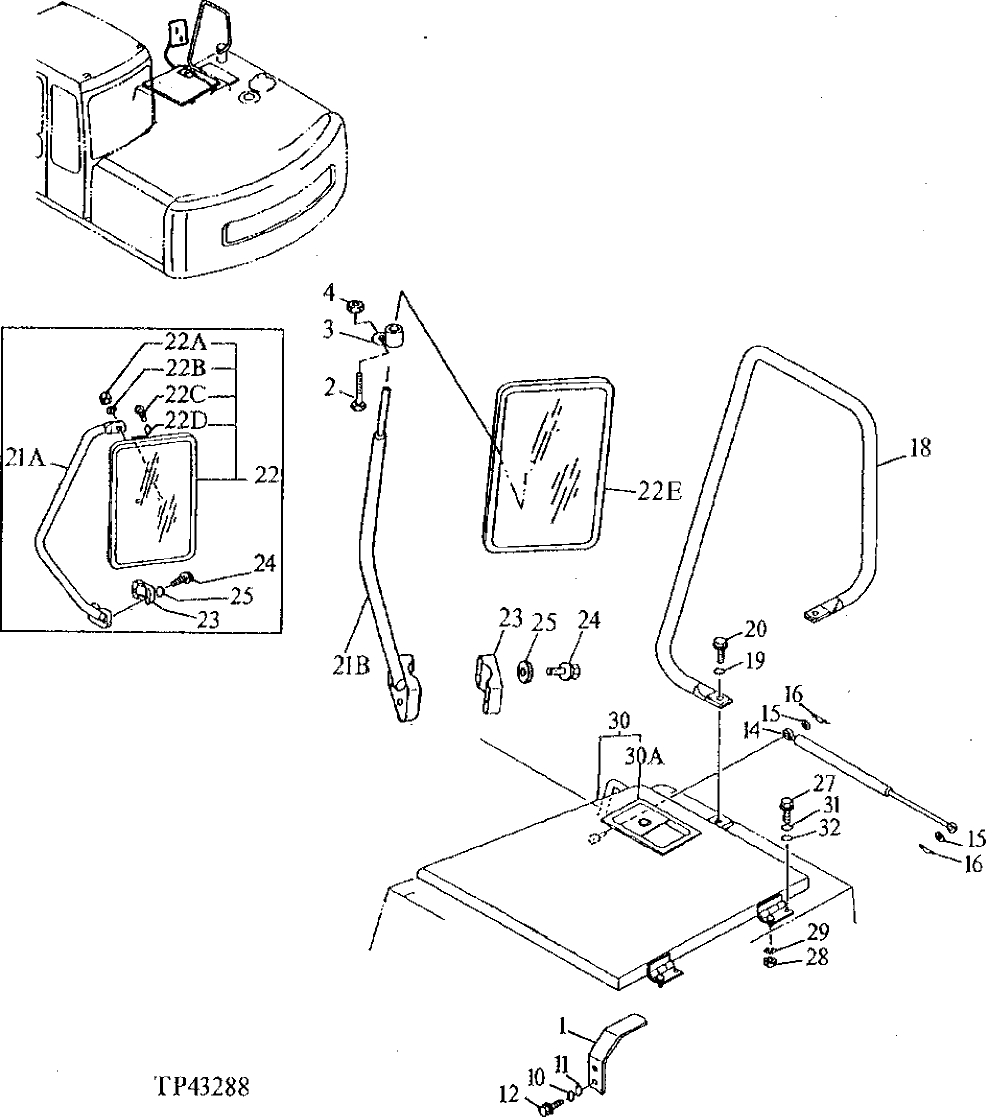

Схема запчастей John Deere 90E - 152 - Covers 1910 Hood Or Engine Enclosure

Артикул

Название

Примечание

Количество

1

9736904

Bracket

(SUB FOR AT154546)

1шт.

2

03M7193

Bolt

M10 X 35

1шт.

3

Clamp

(NLA)

1шт.

4

14M7400

Lock Nut

M10

1шт.

10

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

11

24M7346

Washer

11 X 20 X 2 mm

2шт.

12

19M7662

Cap Screw

M10 X 30

2шт.

14

4196560

Gas Operated Cylinder

(SUB FOR TH108776)

1шт.

15

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

16

H132922

Cotter Pin

2шт.

18

8047346J

Handrail

(SUB FOR AT154479 OR 8047346)

1шт.

19

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

20

19M8765

Screw

M12 X 28 (SUB FOR 19M3204)

2шт.

21A

Arm

( 8019989 NLA) (SUB 442072 4 MIRROR AND 8056640) Arm

1шт.

21B

8056640

Arm

(SUB FOR AT161067)

1шт.

22

4318135

Rear View Mirror

Right Hand (SUB FOR AT103919, THI S APPLICATION) (SUB FOR AT121241)

1шт.

22A

14M7273

Nut

M8

1шт.

22B

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

22C

21M7250

Screw

M4 X 12

3шт.

22D

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

3шт.

22E

Rear View Mirror

Right Hand ( TH104119 NLA) (SUB AT185207 MIRROR AND AT186649 ARM)

1шт.

4420724

Rear View Mirror

(SUB FOR AT185207)

1шт.

23

4113705

Clamp

(SUB FOR AT128469)

1шт.

24

19M7922

Cap Screw

M8 X 40

2шт.

25

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

27

19M7662

Cap Screw

M10 X 30

2шт.

28

14M7274

Nut

M10

2шт.

29

12M7066

Lock Washer

10 mm

2шт.

30

7024437

Cover

(SUB FOR AT154473)

1шт.

30A

Lock

(SUB AT214010) ( TH110898 NLA)

1шт.

31

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

32

12M7066

Lock Washer

10 mm

2шт.

Выбрано товаров: 32
