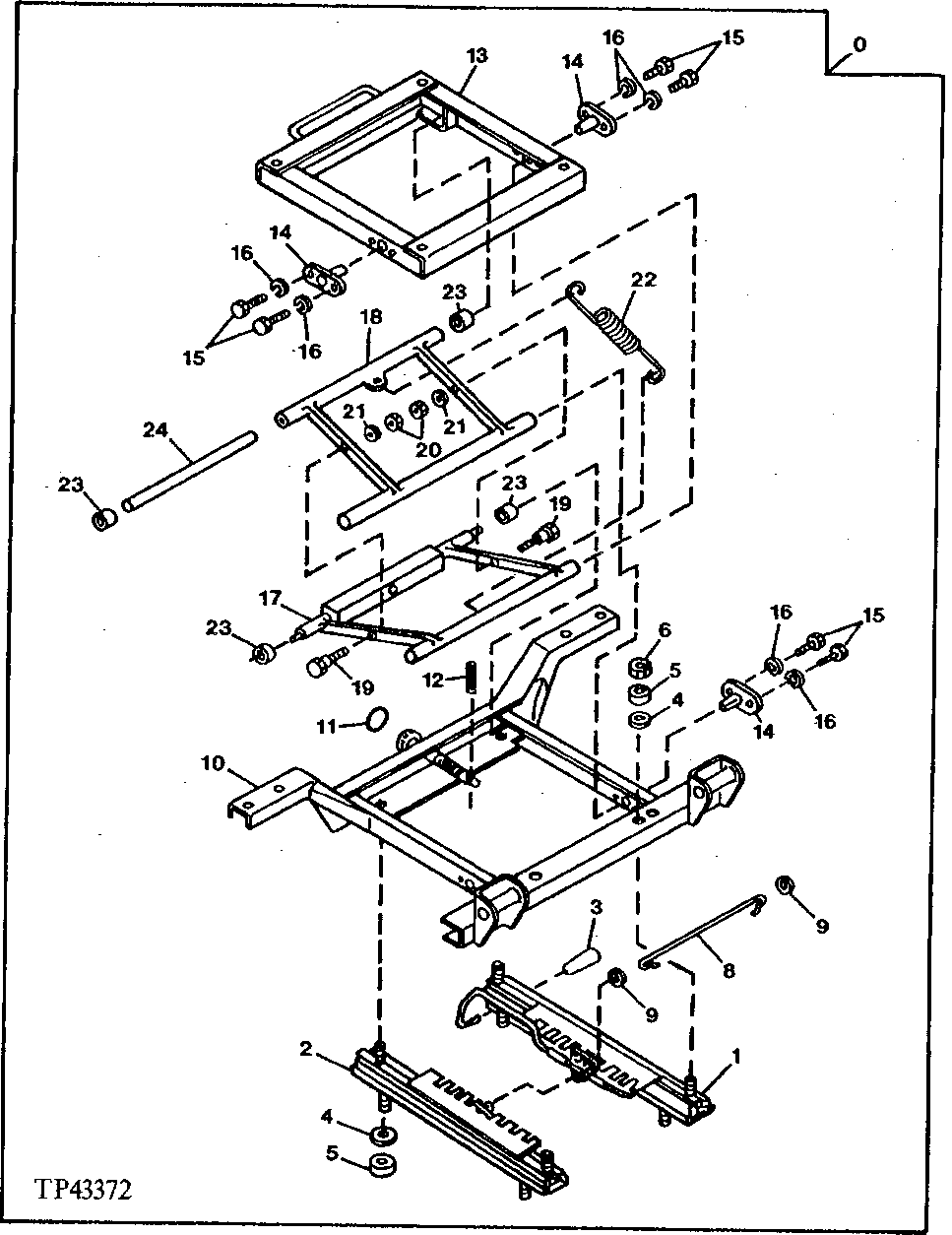

Запчасти John Deere 90E 134 - Seat Stand ( - 024999) 1821 Seat And Seat Belts

0

4293352

Stand

NLA, SUB FOR AT155016

1шт.

1

4323531

Rail

SUB FOR AT161780 Right

1шт.

2

4323532

Rail

SUB FOR AT161781 Left

1шт.

3

4322701

Knob

SUB FOR AT161782

1шт.

4

4322702

Washer

SUB FOR AT161783

8шт.

5

4322703

Bushing

SUB FOR AT161784

8шт.

6

4322704

Nut

SUB FOR AT161785

4шт.

8

4322706

Rod

SUB FOR AT161786

1шт.

9

24M7087

Washer

5.500 X 10 X 1 mm SUB F OR AT161787 AND 4322707

2шт.

10

4322708

Frame

SUB FOR AT161788

1шт.

11

4322709

Seal

SUB FOR AT161789

1шт.

12

34M7102

Spring Pin

5 X 26 mm SUB FOR AT161790

1шт.

13

4322711

Frame

SUB FOR AT161791

1шт.

14

4322712

Flange

SUB FOR AT161792

4шт.

15

19M7600

Screw

M5 X 12 SUB FOR AT161793 AND 4322713

8шт.

16

12M7064

Lock Washer

5 mm SUB FOR AT161794 OR 4322714

8шт.

17

4322715

Arm

SUB FOR AT161795 AND 4322718

1шт.

18

4322716

Arm

SUB FOR AT161796

1шт.

19

4322717

Bolt

SUB FOR AT161797

2шт.

20

14M7517

Lock Nut

M10 SUB FOR AT161798 AND 4322718

2шт.

21

24M7096

Washer

10.500 X 18 X 1.600 mm SU B FOR AT161799 AND 4322719

2шт.

22

4322720

Spring

SUB FOR AT161800

1шт.

23

4322721

Roller

SUB FOR AT161801

4шт.

24

4322722

Shaft

SUB FOR AT161802

1шт.
