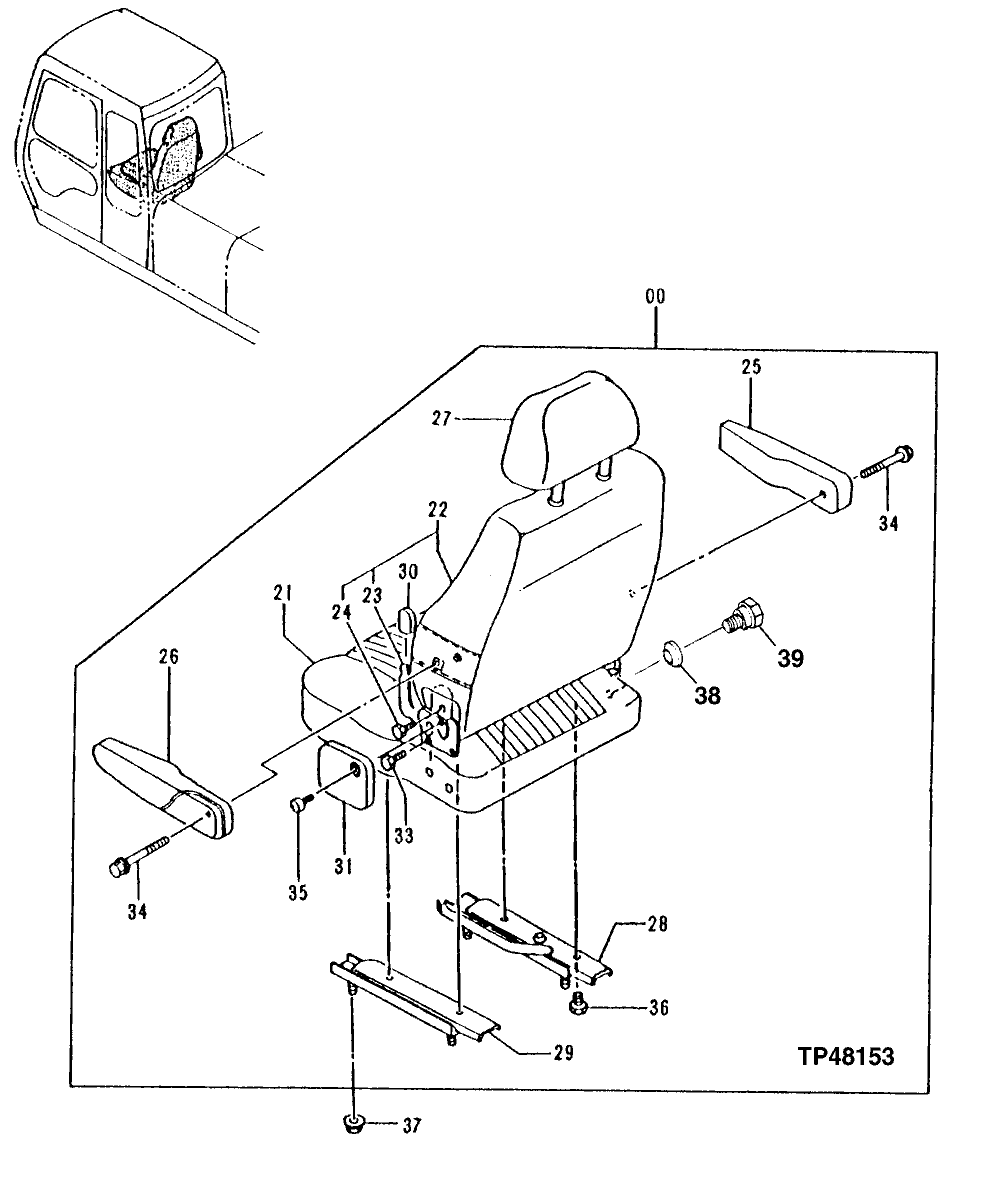

Запчасти John Deere 90E 132 - Seat (025000 - ) 1821 Seat And Seat Belts

0

4351864

Seat

SUB FOR 4344501

1шт.

21

Cushion

4346759 NLA, SUB FOR AT203637

1шт.

22

4341206

Seat Back

SUB FOR AT203638

1шт.

23

4222852

Lever

SUB FOR AT200409

1шт.

24

19M7407

Cap Screw

M8 X 25 SUB FOR 4222853, ALONG W/ 12M7065

2шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

2шт.

25

4341207

Armrest

SUB FOR AT203639

1шт.

26

4341208

Armrest

SUB FOR AT203640

1шт.

27

4679327

Seat Assembly

ALSO ORDER M669008 (8), FYA40009826 , FYA00014799, J900820 (4) AND A5909 08 (4), SUB FOR 4341209 AND AT203641

1шт.

28

4282809

Adjuster

SUB FOR AT200482

1шт.

29

4282808

Adjuster

SUB FOR AT200481

1шт.

30

4282805

Grip

SUB FOR AT200479

1шт.

31

4282810

Cover

SUB FOR AT200483

1шт.

33

19M7407

Cap Screw

M8 X 25 SUB FOR 4222853, ALONG W/ 12M7065

2шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

2шт.

34

4345839

Bolt

SUB FOR AT203642

2шт.

35

21M7265

Screw

M5 X 12 SUB FOR AT200455

1шт.

36

21M7192

Screw

M8 X 16 SUB FOR 4222865, ALONG W/ 12M7065

4шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.

37

14M7273

Nut

M8

4шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.

38

4368256

Bushing

SUB FOR AT177820

1шт.

39

4368257

Cap Screw

SUB FOR AT177821

1шт.
