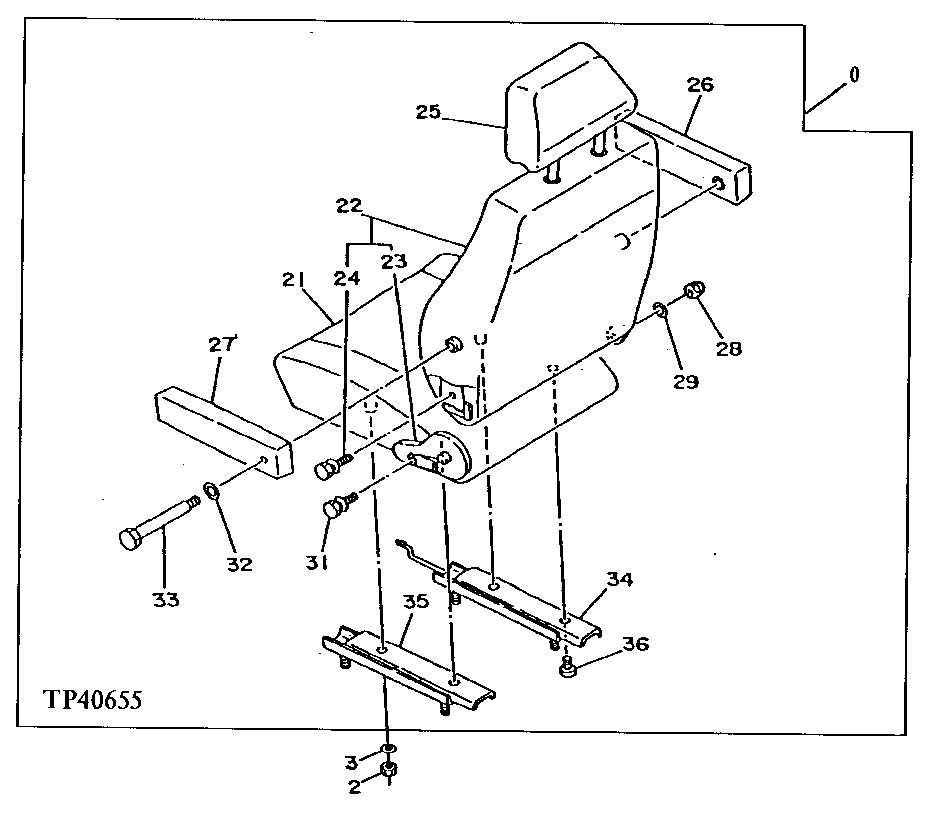

Запчасти John Deere 90E 130 - Seat ( - XXXXXX) 1821 Seat And Seat Belts

0

Seat

SUB AT200472, AT154953 NLA

1шт.

2

14M7273

Nut

M8

4шт.

3

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.

21

4355576

Cushion

SUB FOR AT155702, USE IF AVAILABLE

1шт.

4355576

Cushion

SUB FOR AT155702, SUB FOR AT184349

1шт.

22

4355577

Seat Back

SUB FOR AT155703, USE IF AVAILABLE

1шт.

4355577

Seat Back

SUB FOR AT184350, SUB FOR AT155703 ALONG W/ AT184354

1шт.

23

0340803

Adjuster

SUB FOR AT155704, USE IF AVAILABLE

1шт.

0340803

Adjuster

SUB FOR AT155704, SUB FOR TH111648

1шт.

24

19M7402

Cap Screw

M10 X 25 SUB FOR AT155705 OR TH104152, ALSO ORDER 12M7066

2шт.

12M7066

Lock Washer

10 mm

2шт.

25

4355580

Head Restraint

SUB FOR AT155706, USE IF AVAILABLE

1шт.

4355580

Head Restraint

SUB FOR AT155706, SUB FOR AT184351

1шт.

26

4355579

Armrest

SUB FOR AT155707, USE IF AVAILABLE

1шт.

4355579

Armrest

SUB FOR AT155707, SUB FOR AT184352

1шт.

27

Armrest

4355578 NLA, SUB FOR AT 155708, USE IF AVAILABLE

1шт.

Armrest

4355578 NLA, SUB FOR AT 155708, SUB FOR AT184353

1шт.

28

4278845

Cap

SUB FOR AT155709

1шт.

29

4355581

Bushing

SUB FOR AT155710, SUB FOR AT184354

1шт.

31

19M7402

Cap Screw

M10 X 25 SUB FOR AT155705 OR TH104152, ALSO ORDER 12M7066

2шт.

12M7066

Lock Washer

10 mm

2шт.

32

Washer

0262710 NLA

2шт.

24M7434

Washer

13 X 20 X 2 mm SUB FOR 026 2710, AT155711 AND TH104154

2шт.

33

4278847

Bolt

SUB FOR AT155712

2шт.

34

4300069

Adjuster

SUB FOR AT155713

1шт.

35

4278841

Adjuster

SUB FOR AT155714

1шт.

36

0340808

Screw

SUB FOR AT155715, SUB FOR TH111653

4шт.
