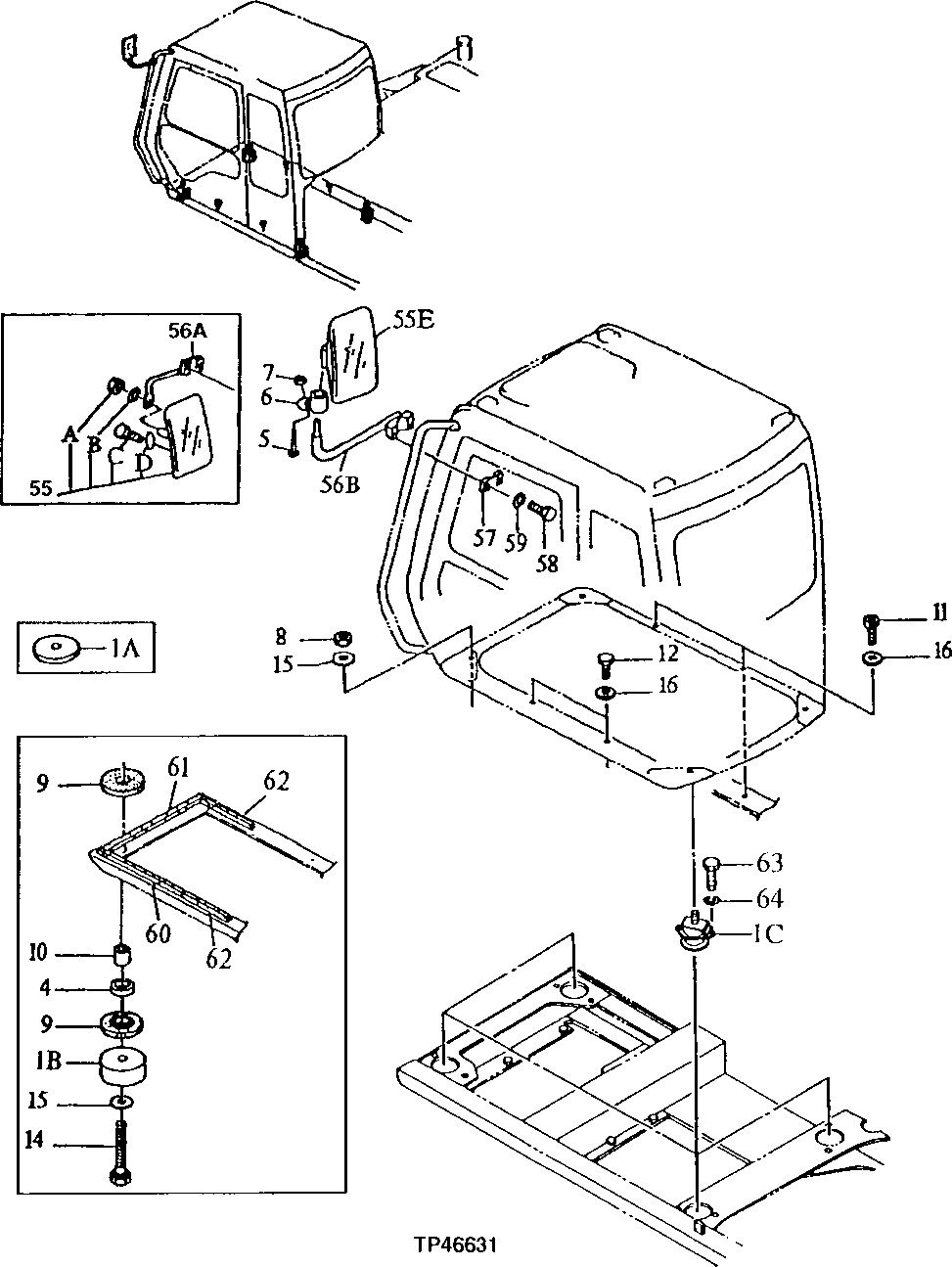

Запчасти John Deere 90E 128 - Cab 1810 Operator Enclosure

1A

4185675

Stop

(SUB FOR TH108607)

4шт.

1B

4311166

Retainer

(SUB FOR T145861)

4шт.

1C

4366825

Isolator

(SUB FOR AT202465) (SUB FOR AT176229)

4шт.

4

4200085

Isolator

(SUB FOR TH108604)

4шт.

5

03M7193

Bolt

M10 X 35

1шт.

6

Clamp

(NLA)

1шт.

7

14M7400

Lock Nut

M10

1шт.

8

14M7328

Lock Nut

M16

4шт.

9

4311428

Spacer

(SUB FOR AT158387)

8шт.

10

4310307

Bushing

(SUB FOR AT158389)

4шт.

11

19M8338

Screw

M10 X 40 (SUB FOR 19M8 337, THIS APPLICATION)

2шт.

12

19M7662

Cap Screw

M10 X 30

2шт.

14

19M7884

Cap Screw

M16 X 110

4шт.

4136792

Bolt

M16 X 115 (SUB FOR TH101104)

4шт.

15

24M7338

Washer

17 X 30 X 3 mm

8шт.

24M7338

Washer

17 X 30 X 3 mm

4шт.

16

24M7346

Washer

11 X 20 X 2 mm

4шт.

55

4318135

Rear View Mirror

Left Hand (SUB FOR AT103919, THI S APPLICATION) (SUB FOR AT121241)

1шт.

55A

14M7273

Nut

M8

1шт.

55B

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

55C

21M7250

Screw

M4 X 12

3шт.

55D

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

3шт.

55E

Rear View Mirror

( TH104119 NLA) (SUB AT1852 07 MIRROR AND AT186649 ARM)

1шт.

4420724

Rear View Mirror

(SUB FOR AT185207)

1шт.

56A

Arm

( 8048596 NLA) (SUB 44207 24 ARM AND 8076201 MIRROR)

1шт.

56B

8076201

Arm

(SUB FOR AT186649)

1шт.

57

AT219494

Clamp

(SUB FOR AT131743)

1шт.

58

19M8359

Cap Screw

M8 X 45

2шт.

59

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

60

Rubber Mount

( T145858 NLA)

1шт.

61

Rubber Mount

( T145859 NLA)

1шт.

62

Rubber Mount

( T145860 NLA)

2шт.

63

19M7493

Cap Screw

M12 X 40 (SUB FOR 4330785 OR J921240)

8шт.

64

12H301

Lock Washer

1/2"

8шт.
