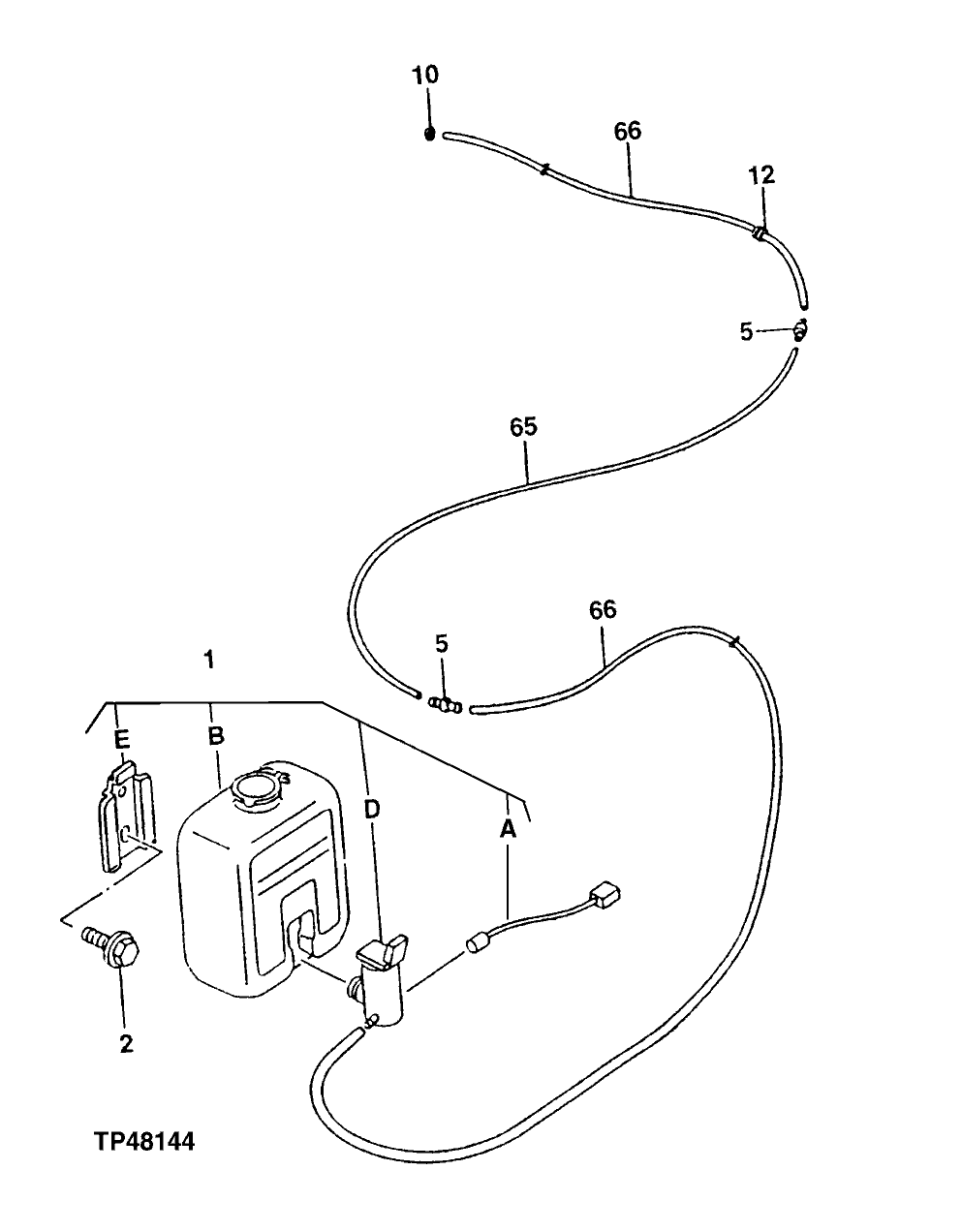

Запчасти John Deere 90E 127 - Window Washer (025790 - ) 1810 Operator Enclosure

1

4333185

Reservoir

(SUB FOR AT177804)

1шт.

1A

4365327

Wiring Harness

(SUB FOR AT177807)

1шт.

1B

Reservoir

(SUB FOR AT177805) ( 4369472 NLA)

1шт.

1D

4326095

Pump

(SUB FOR AT187562)

1шт.

1E

4338974

Bracket

(SUB FOR AT177806)

1шт.

2

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

5

4254237

Adapter Fitting

(SUB FOR AT126799)

2шт.

10

4282793

Nozzle

(SUB FOR AT154358)

1шт.

12

4287903

Grommet

(SUB FOR AT154413)

1шт.

65

Hose

(CTL FROM R54445 BULK MATERIAL)

1шт.

66

Hose

(CTL FROM R54445 BULK MATERIAL)

2шт.
