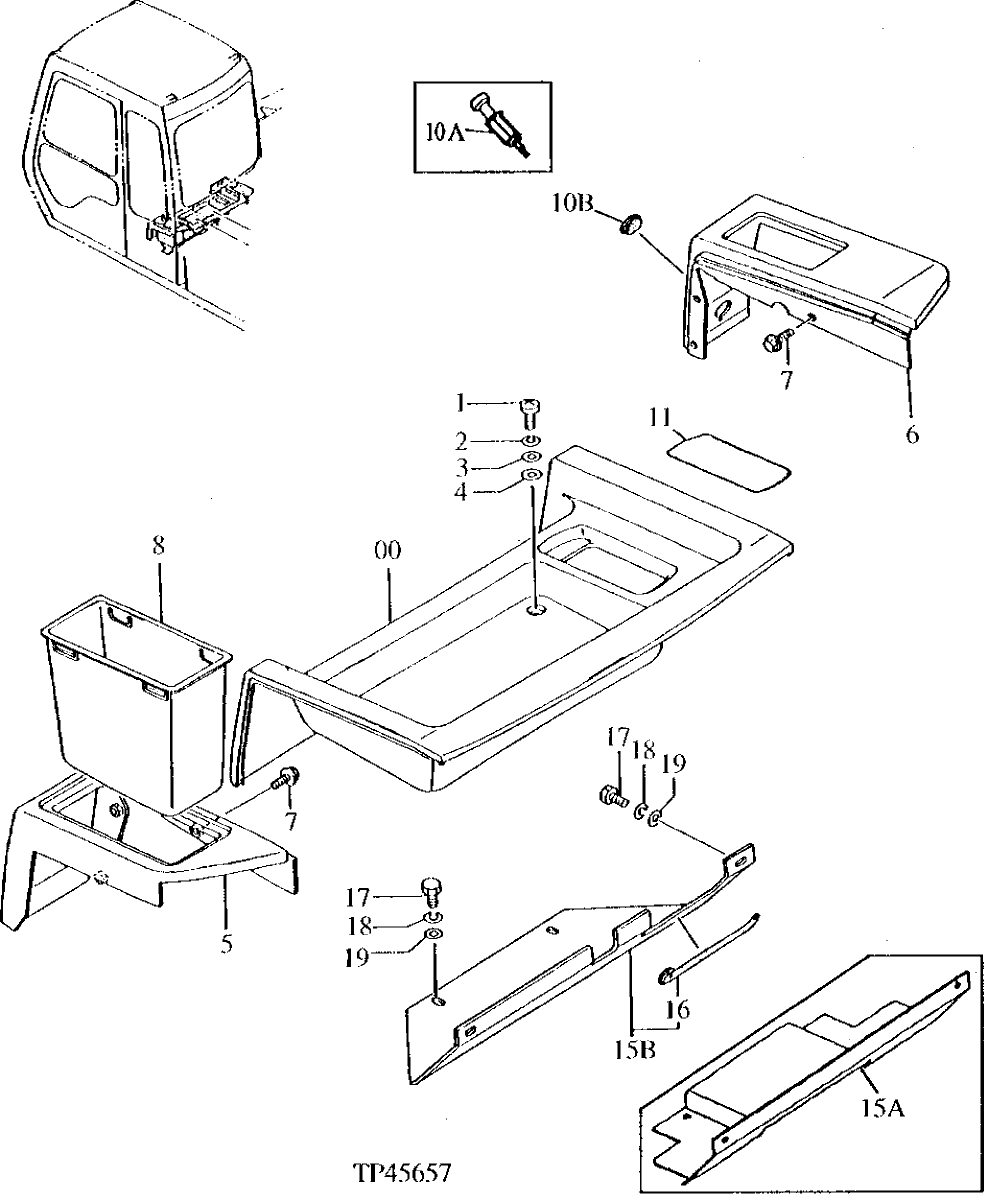

Запчасти John Deere 90E 123 - Cab Rear Cover 1810 Operator Enclosure

0

6011272

Cover

(SUB FOR AT154453)

1шт.

1

21M7397

Screw

M8 X 25

4шт.

2

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

3

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

4

Washer

( AT200509 NLA)

4шт.

5

6011274

Cover

(SUB FOR AT154454)

1шт.

6

6011275

Cover

(SUB FOR AT154455)

1шт.

7

19M7881

Screw

M8 X 20

6шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

6шт.

8

3052412

Tray

(SUB FOR AT154124)

1шт.

10A

AR60937

Electrical Lighter

12V , (SUB FOR TH108558, ALONG W / AT78633, AT78634 AND AU42809)

1шт.

AT78633

Housing

12V

1шт.

AT78634

Wiring Lead

12V

1шт.

AU42809

Resistor

12V

1шт.

Electrical Lighter

24V , (SUB FOR AT190190) ( 4357862 NLA)

1шт.

10B

Plug

(NLA)

1шт.

11

4285009

Cover

(SUB FOR AT155728) Fuse Panel

1шт.

15A

7027991

Cover

(SUB FOR AT154471) (SUB FOR AT167004)

1шт.

15B

8058417

Cover

(SUB FOR AT202370)

1шт.

16

4337249

Isolator

(SUB FOR AT167005)

1шт.

17

19M7881

Screw

M8 X 20

4шт.

18

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

19

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.
