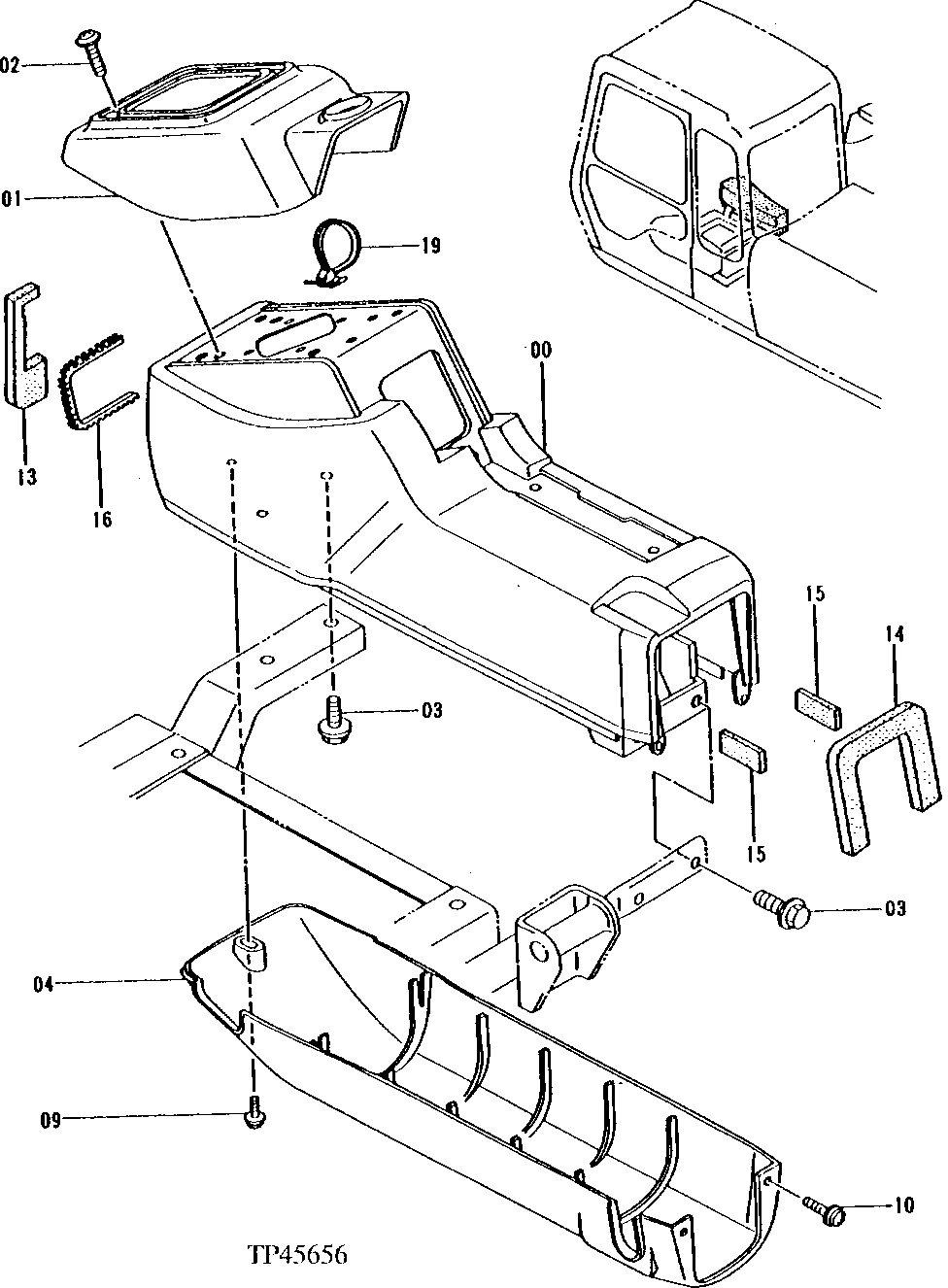

Запчасти John Deere 90E 122 - Right Console (025000 - ) 1810 Operator Enclosure

0

5004145

Stand

(SUB FOR AT202359)

1шт.

1

1015022

Cover

(SUB FOR AT154051)

1шт.

2

19M7177

Cap Screw

M6 X 35

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

3

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

4

1015021

Cover

(SUB FOR AT154050)

1шт.

9

21M7277

Screw

M6 X 25

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

10

21M7246

Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

13

4287918

Isolator

(SUB FOR AT200500)

1шт.

14

4289705

Isolator

(SUB FOR AT200504)

1шт.

15

Rubber Mount

(CTL FROM BULK MATERIAL)

2шт.

16

Bushing

(NLA)

1шт.

19

H77698

Tie Band

1шт.
