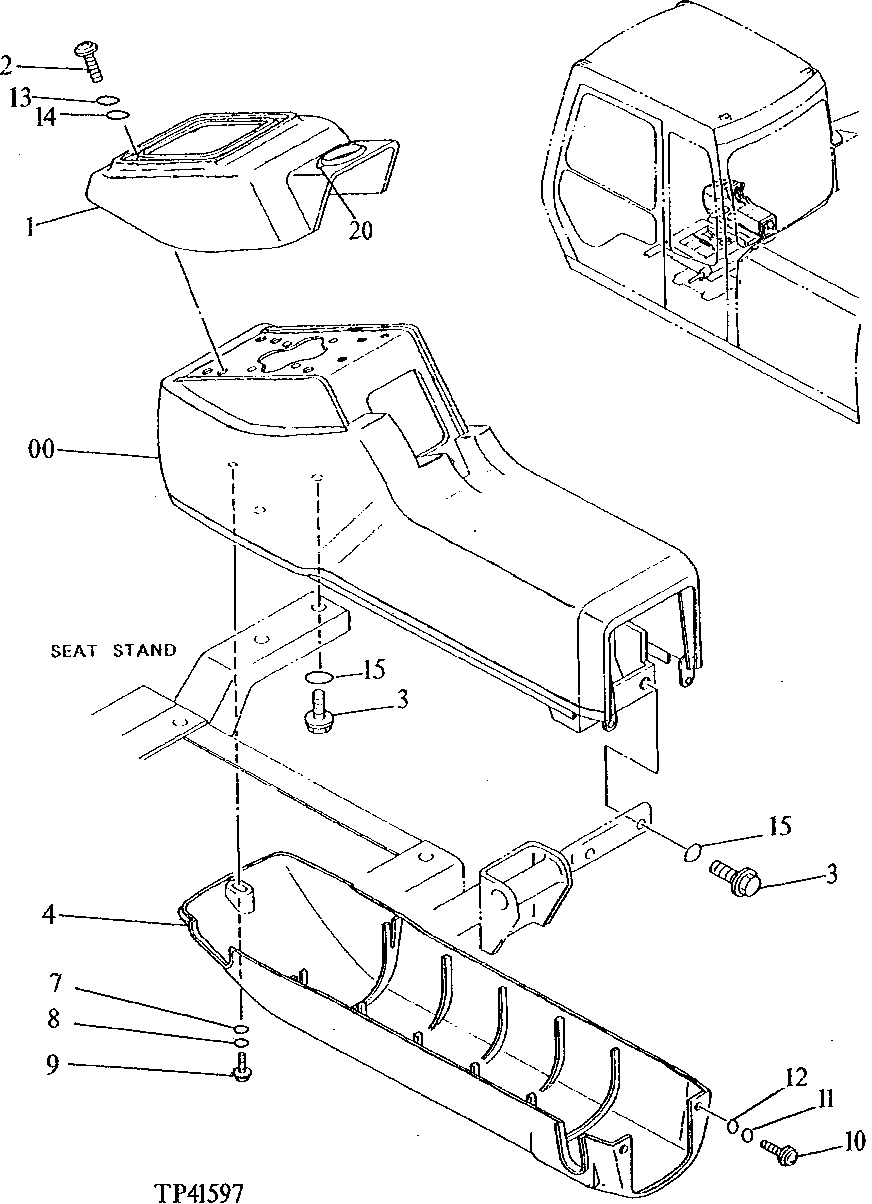

Запчасти John Deere 90E 121 - Right Console ( - 024999) 1810 Operator Enclosure

0

5002616

Stand

(SUB FOR AT154446)

1шт.

1

1015022

Cover

(SUB FOR AT154051)

1шт.

2

19M7177

Cap Screw

M6 X 35

4шт.

3

19M7662

Cap Screw

M10 X 30

4шт.

4

1015021

Cover

(SUB FOR AT154050)

1шт.

7

12M7006

Lock Washer

6 mm

1шт.

8

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

9

21M7277

Screw

M6 X 25

1шт.

10

21M7246

Screw

M6 X 16

2шт.

11

12M7006

Lock Washer

6 mm

2шт.

12

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

13

12M7006

Lock Washer

6 mm

4шт.

14

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

15

12M7066

Lock Washer

10 mm

4шт.

20

4264805

Label

(SUB FOR AT155730) Ignition Key Switch

1шт.
