Запчасти John Deere 90E 119 - Cab 1810 Operator Enclosure

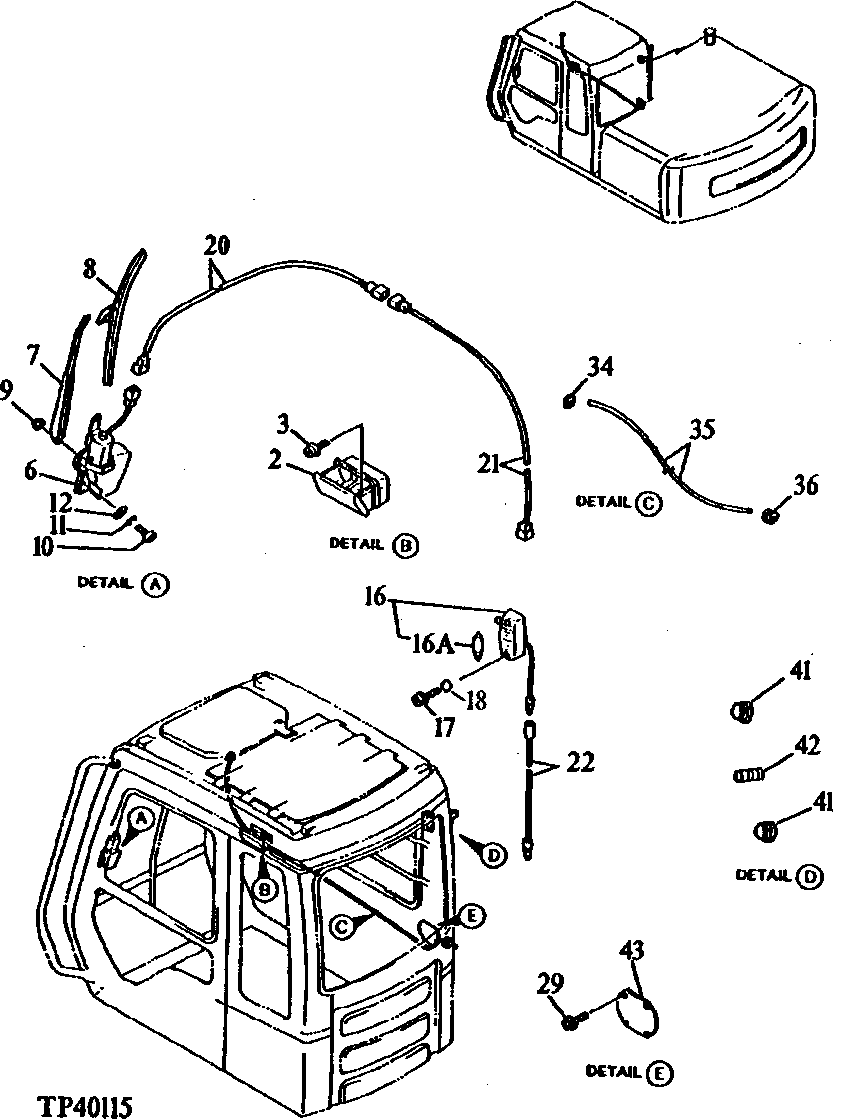

Схема запчастей John Deere 90E - 119 - Cab 1810 Operator Enclosure

Артикул

Название

Примечание

Количество

2

4298985

Ashtray

(SUB FOR TH101096)

1шт.

3

21M7278

Screw

M5 X 10

2шт.

6

4256364

Wiper Motor

(SUB FOR AT154235) Wiper

1шт.

7

4257131

Wiper Arm

(SUB FOR AT154240)

1шт.

8

TY16304

Wiper Blade

(SUB FOR 4257132) (ALS O ORDER TY16323) Black

1шт.

9

14M7273

Nut

M8

1шт.

10

19M7923

Cap Screw

M6 X 12

3шт.

11

12M7006

Lock Washer

6 mm

3шт.

12

24M7054

Washer

6.400 X 12 X 1.600 mm

3шт.

16

4187082

Lamp

(SUB FOR TH108567) Dome

1шт.

16A

4698994

Bulb

(SUB FOR TH108568, 4187083)

1шт.

17

21M7347

Screw

M5 X 14

2шт.

18

12M7064

Lock Washer

5 mm

2шт.

20

4260367

Wiring Harness

(SUB FOR AT154276) Wiper

1шт.

21

4260368

Wiring Harness

(SUB FOR AT154277) Wiper

1шт.

22

4260369

Wiring Harness

(SUB FOR AT154278) Dome Light

1шт.

29

J680414

Screw

(SUB FOR AT153813) (FOR UNITS W/O RADIO)

4шт.

34

4282793

Nozzle

(SUB FOR AT154358)

1шт.

35

Bulk Hose

(SUB FOR R54445 AND R104595) ( R120653 NLA) (MF TY25139)

ARшт.

36

4287903

Grommet

(SUB FOR AT154413)

1шт.

41

4374624

Clip

(SUB FOR AT155697, THIS APPLICATION) (S UB FOR AT177382) For Units Without Radio

2шт.

42

4266963

Plug

(SUB FOR AT155699) For Units Without Radio

1шт.

43

3062144

Cover

(SUB FOR AT155698) For Units Without Radio

1шт.

Выбрано товаров: 23
